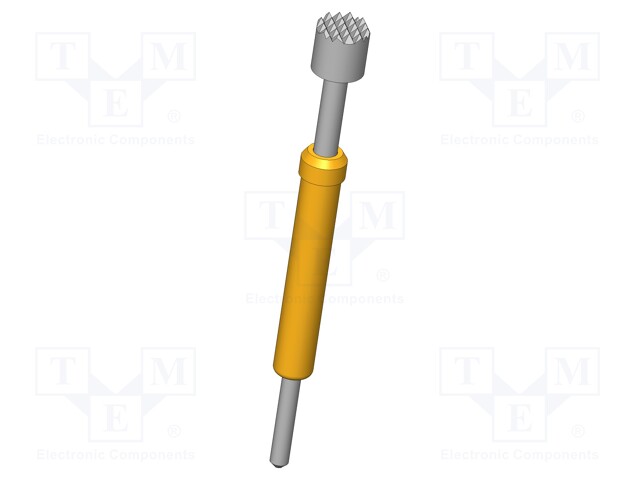

Test needle; Operational spring compression: 5.6mm; 8A; Ø: 4mm

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: GKS-503 306 400 R 3002
    Tootja: INGUN
    Tootja tootekood: GKS-503 306 400 R 3002
    • Mounting
    • Operating temperature
    • Contact plating
    • Contact material
    • Max. contact resistance
    • Length
    • Current rating
    • Tip diameter
    • Type of test accessories
    • Maksimum spring compression

    4,80 € 4,80 € (KM-TA) 4.8 EUR

    4,80 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Test needle; Operational spring compression: 5.6mm; 8A; Ø: 4mm

    Mounting push-in
    Operating temperature -40...80°C
    Contact plating rhodium plated
    Contact material CuBe
    Max. contact resistance 30mΩ

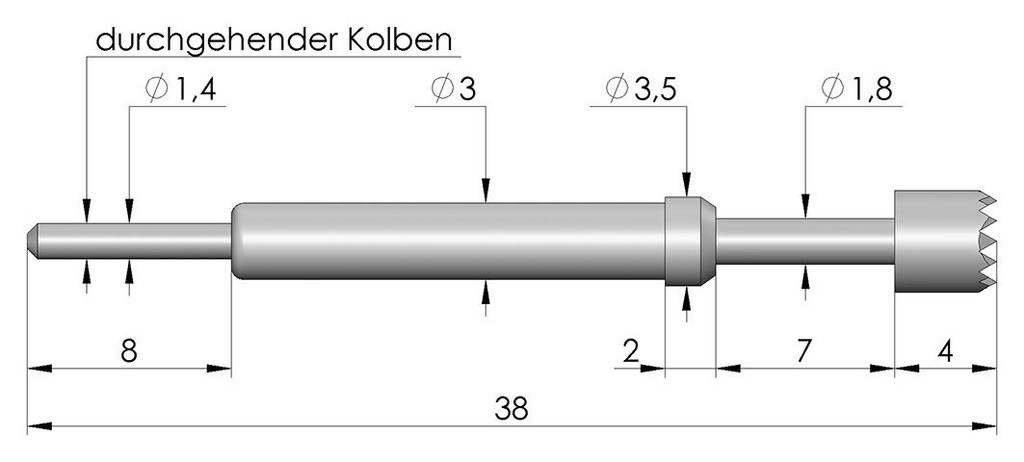

    Length 38mm
    Current rating 8A

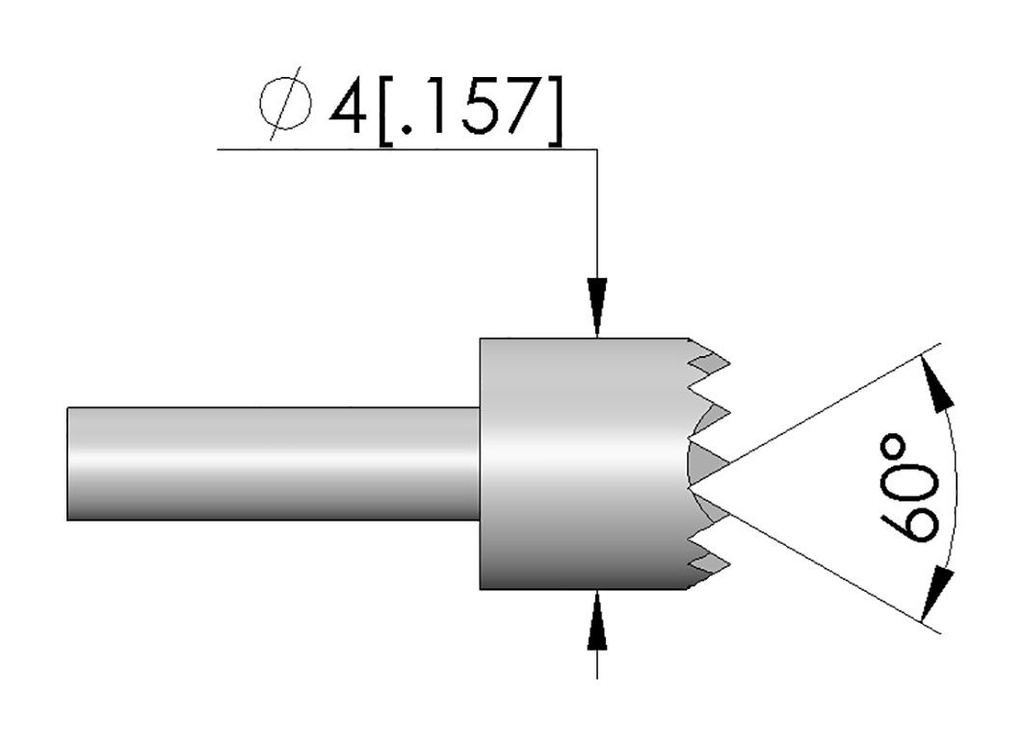

    Tip diameter 4mm
    Type of test accessories test probe
    Maksimum spring compression 7mm
