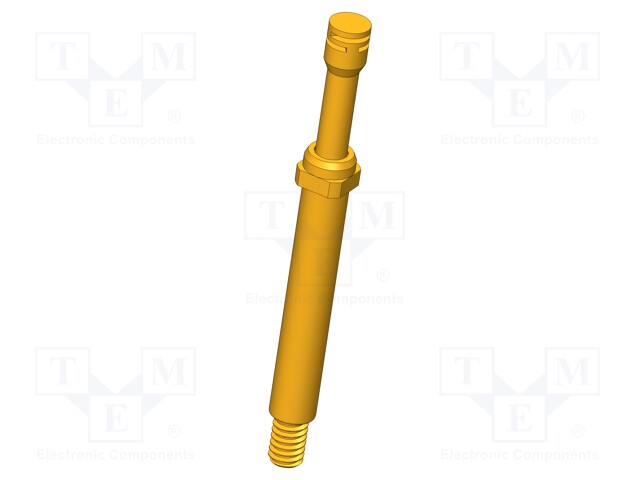

Test needle; Operational spring compression: 4mm; 5A; Ø: 2.4mm

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: GKS-667 302 240 A 5002 M-AC
    Tootja: INGUN
    Tootja tootekood: GKS-667 302 240 A 5002 M-AC
    • Mounting
    • Operating temperature
    • Contact plating
    • Contact material
    • Max. contact resistance
    • Current rating
    • Tip diameter
    • Type of test accessories
    • Operational spring compression
    • Maksimum spring compression
    • Blade tip shape

    0,00 € 0,00 € (KM-TA) 0.0 EUR

    0,00 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Test needle; Operational spring compression: 4mm; 5A; Ø: 2.4mm

    Mounting screw-in
    Operating temperature -100...200°C
    Contact plating gold-plated
    Contact material CuBe
    Max. contact resistance 100mΩ
    Current rating 5A

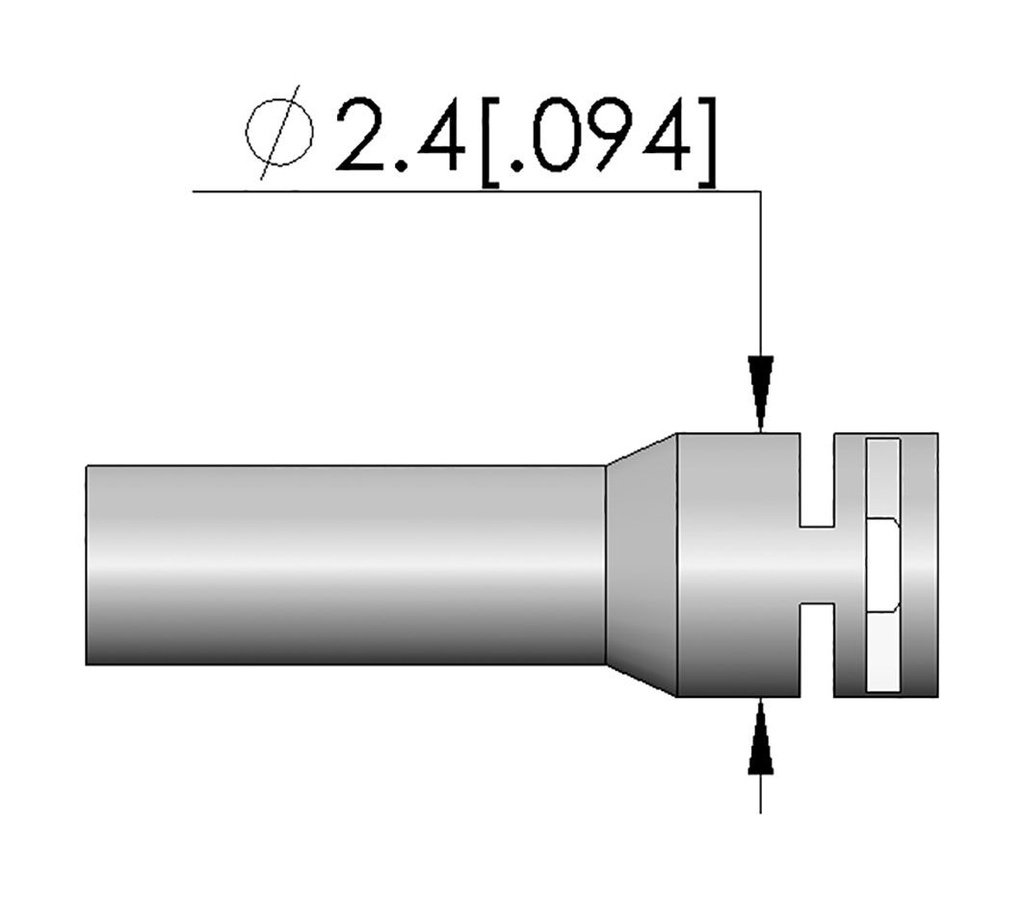

    Tip diameter 2.4mm
    Type of test accessories test probe
    Operational spring compression 4mm
    Maksimum spring compression 5mm
    Blade tip shape flat
