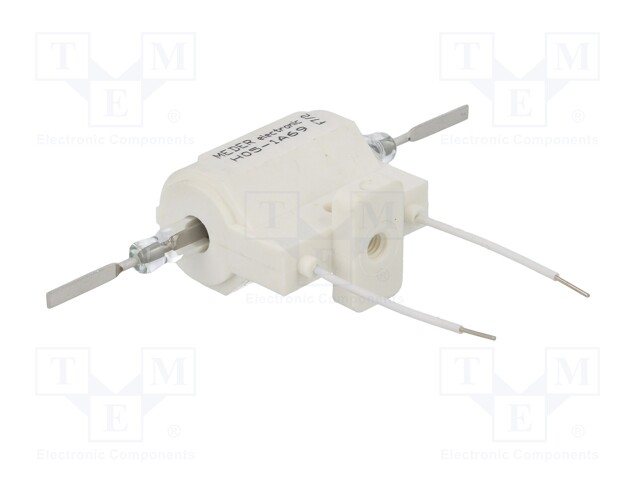

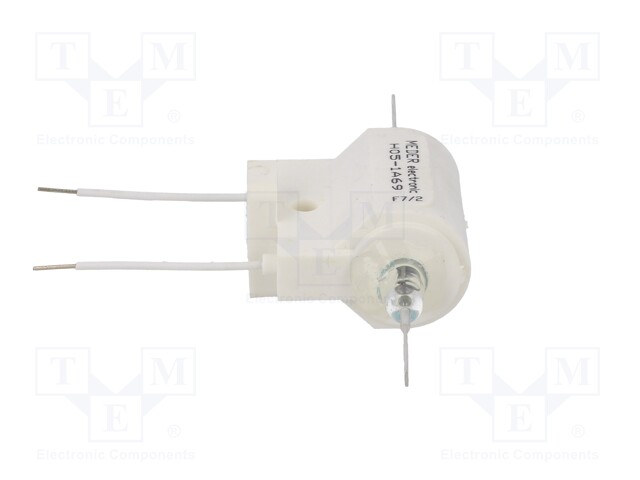

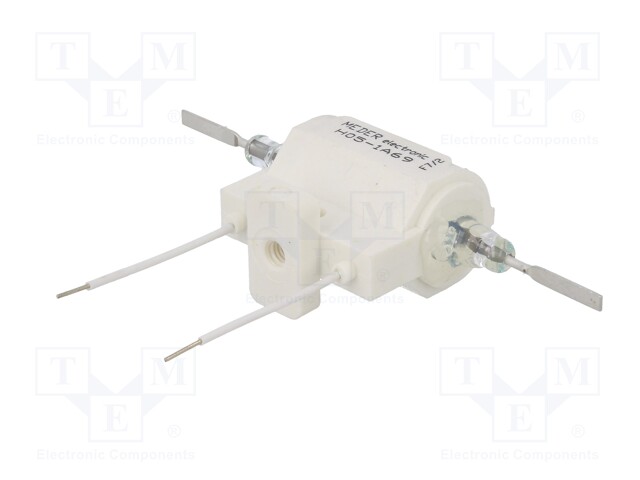

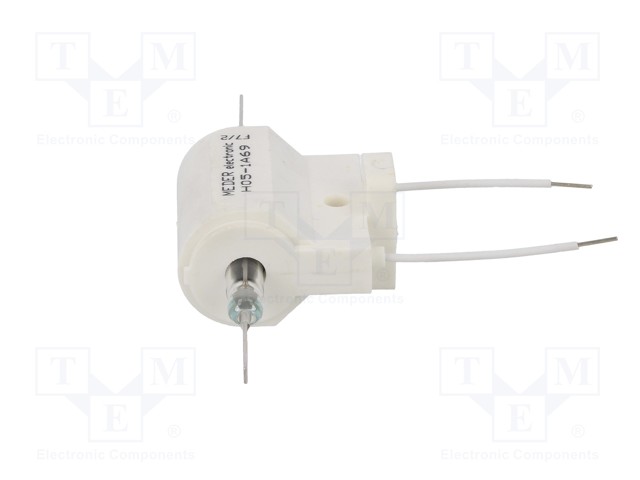

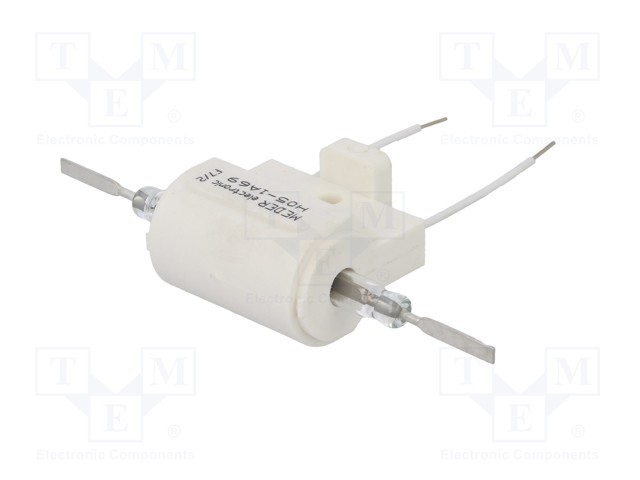

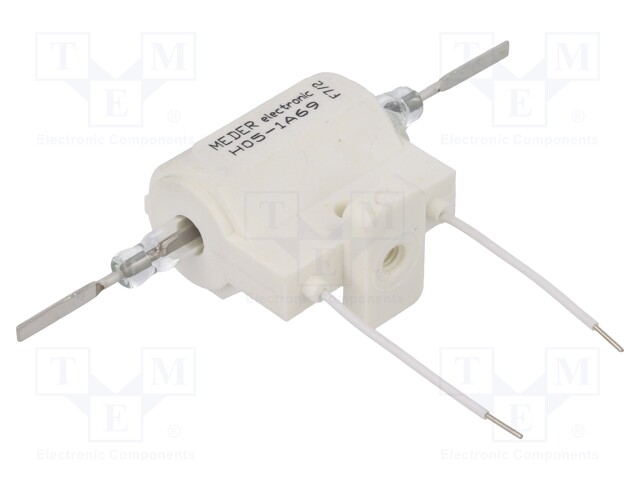

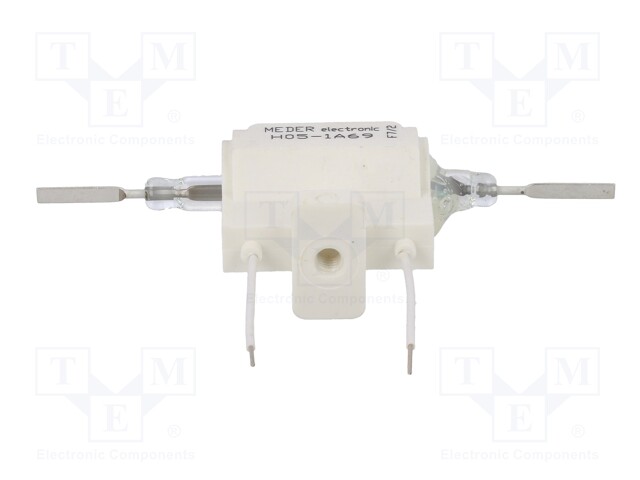

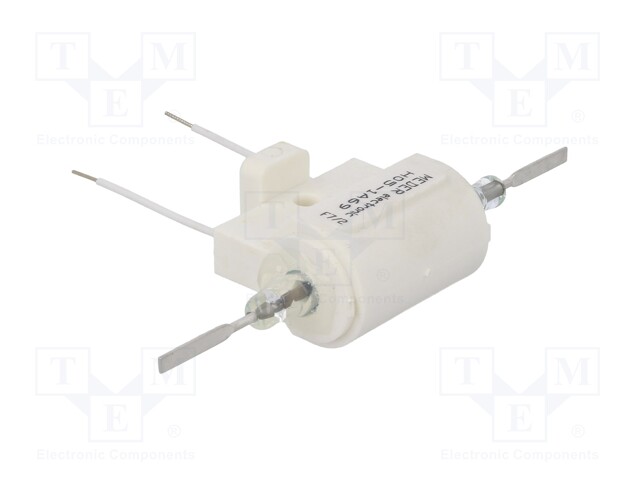

Relay: reed; SPST-NO; Ucoil: 5VDC; 5A; max.10kVDC; max.10kVAC; 50W

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: H05-1A69
    Tootja: MEDER
    Tootja tootekood: H05-1A69
    • Operating temperature
    • Body dimensions
    • Breakdown voltage
    • Switched voltage
    • Switched voltage
    • Min. insulation resistance
    • Switching capacity
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • Contact resistance
    • Contact current max.
    • Type of relay
    • Coil power consumption
    • Operate time
    • Release time

    38,50 € 38,50 € (KM-TA) 38.5 EUR

    38,50 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: reed; SPST-NO; Ucoil: 5VDC; 5A; max.10kVDC; max.10kVAC; 50W

    Operating temperature -20...70°C
    Body dimensions 82x18x30mm
    Breakdown voltage 15kV
    Switched voltage ≤ 10kV AC, ≤ 10kV DC
    Min. insulation resistance 1TΩ
    Switching capacity 50W
    Coil resistance 40Ω
    Rated coil voltage 5V DC
    Contacts configuration SPST-NO
    Contact resistance 150mΩ
    Contact current max. 5A
    Type of relay reed
    Coil power consumption 625mW
    Operate time 3ms
    Release time 1.5ms
