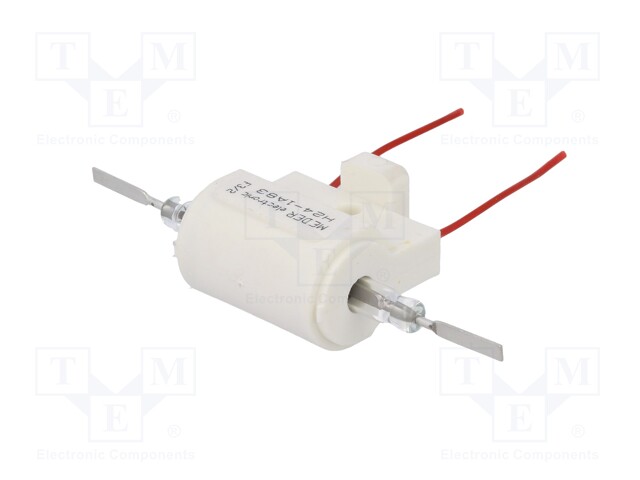

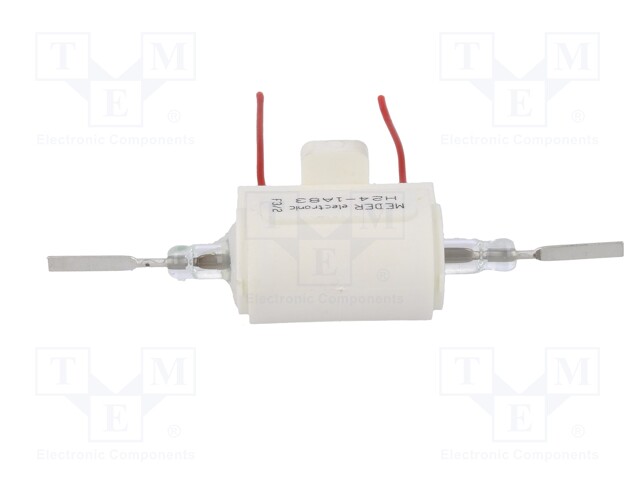

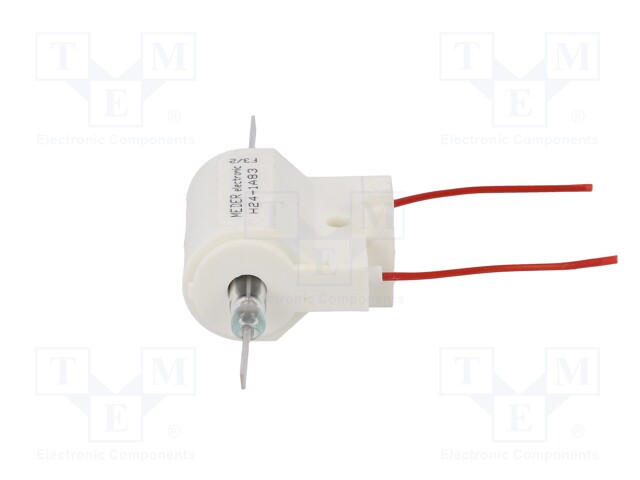

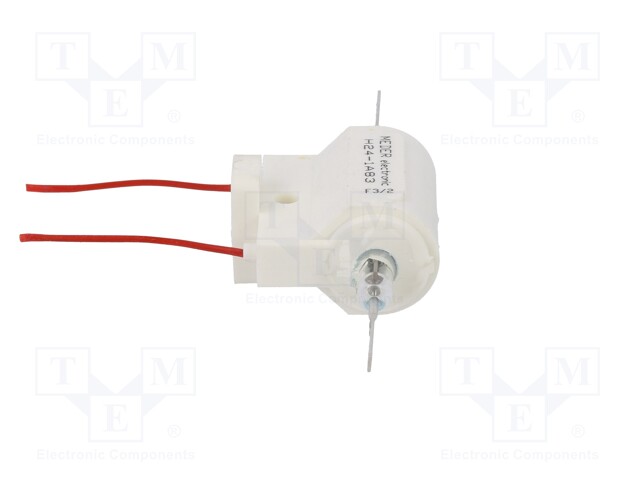

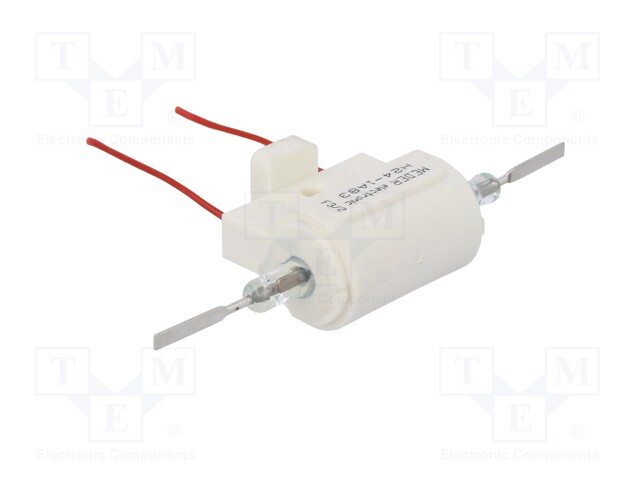

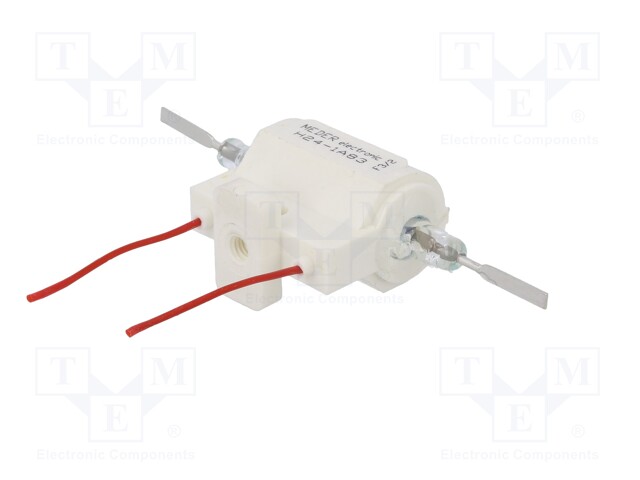

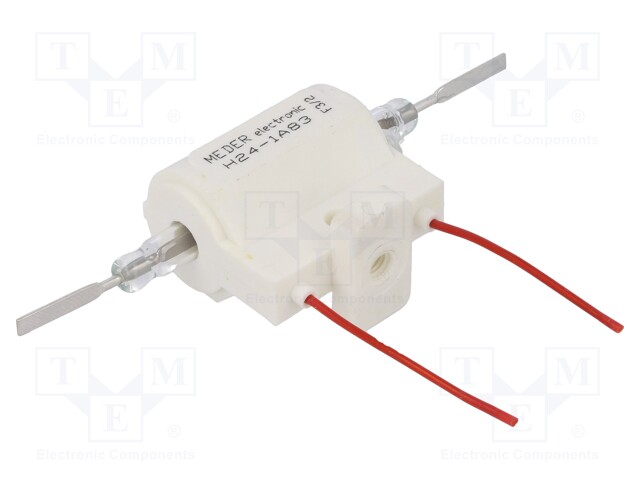

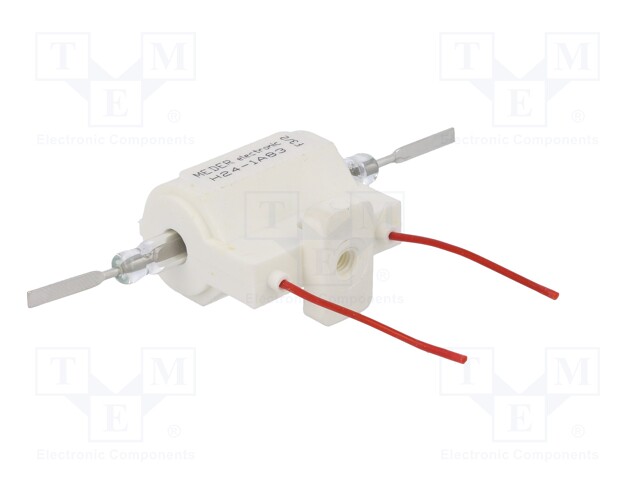

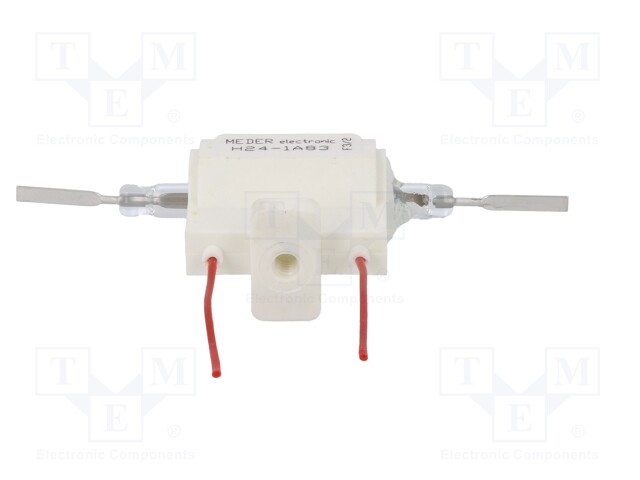

Relay: reed; SPST-NO; Ucoil: 24VDC; 5A; max.7.5kVDC; max.7.5kVAC

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: H24-1A83
    Tootja: MEDER
    Tootja tootekood: H24-1A83
    • Operating temperature
    • Body dimensions
    • Breakdown voltage
    • Switched voltage
    • Switched voltage
    • Min. insulation resistance
    • Switching capacity
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • Contact resistance
    • Contact current max.
    • Type of relay
    • Coil power consumption
    • Operate time
    • Release time

    40,32 € 40,32 € (KM-TA) 40.32 EUR

    40,32 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: reed; SPST-NO; Ucoil: 24VDC; 5A; max.7.5kVDC; max.7.5kVAC

    Operating temperature -20...70°C
    Body dimensions 82x18x30mm
    Breakdown voltage 10kV
    Switched voltage ≤ 7.5kV AC, ≤ 7.5kV DC
    Min. insulation resistance 1TΩ
    Switching capacity 50W
    Coil resistance 700Ω
    Rated coil voltage 24V DC
    Contacts configuration SPST-NO
    Contact resistance 150mΩ
    Contact current max. 5A
    Type of relay reed
    Coil power consumption 822mW
    Operate time 3ms
    Release time 1.5ms
