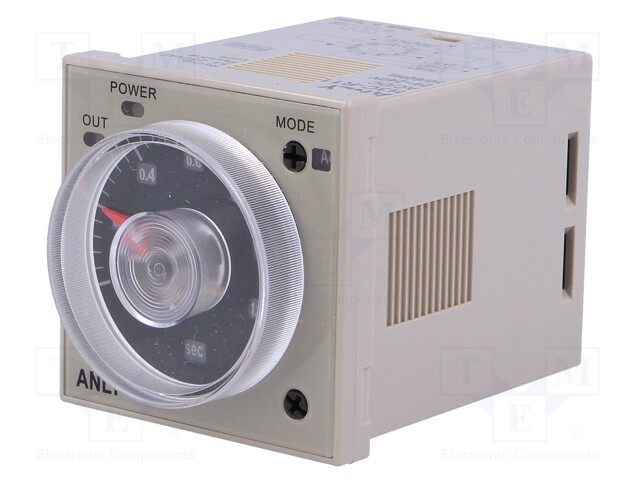

Timer; 0,2s÷300h; DPDT; 250VAC/5A; 24÷240VAC; 24÷240VDC; undecal
Kordarv:
1.0
Minimum quantity:
1.0
Tootekood:
H3C-R11
Tootja: ANLY ELECTRONICS
Tootja tootekood: H3C-R11
Product downloads
Spetsifikatsioon tootele Timer; 0,2s÷300h; DPDT; 250VAC/5A; 24÷240VAC; 24÷240VDC; undecal
| Mounting | on panel, socket, for DIN rail mounting |
| Supply voltage | 24...240V AC, 24...240V DC |
| Operating temperature | -10...50°C |
| IP rating | IP40 |
| Kind of connector | undecal |
| Number of pins | 11 |
| Mounting hole diameter | 45x45mm |
| Kind of output | DPDT |
| Indication | LED |
| Electrical connection | round socket |
| Counting range | 0,2s...300h |
| Counter operation modes | cyclic impulse operation with delayed switching on, delayed switching on, ON and OFF delay, ON for the set interval, pulse after a specified time, symmetrical cyclical operation pause first, symmetrical cyclical operation pulse first, with the control contact S |
| number of operation modes | 9 |
| The additional control inputs | gate, RESET, START |
