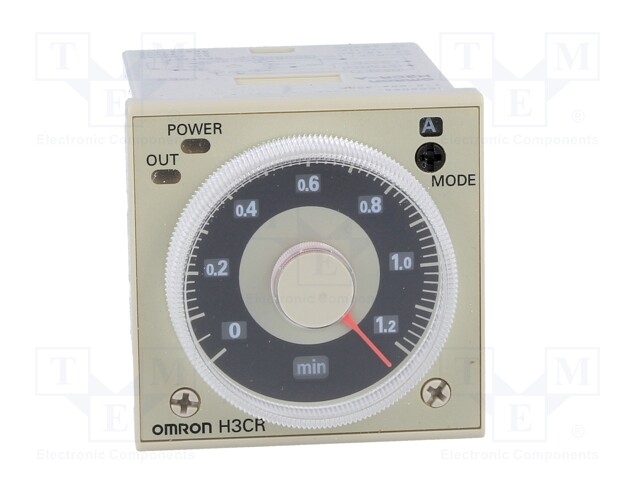

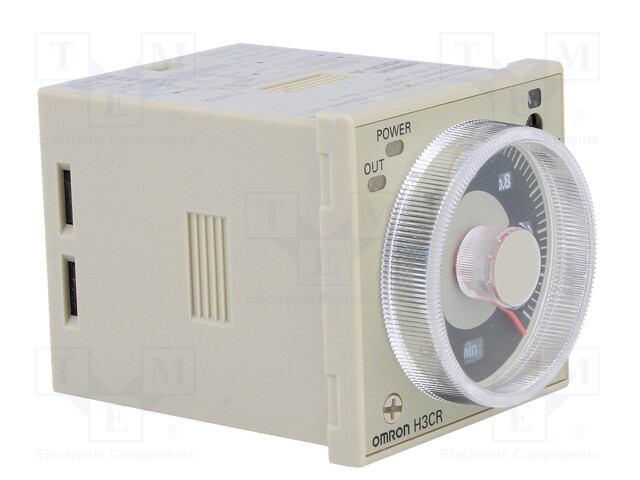

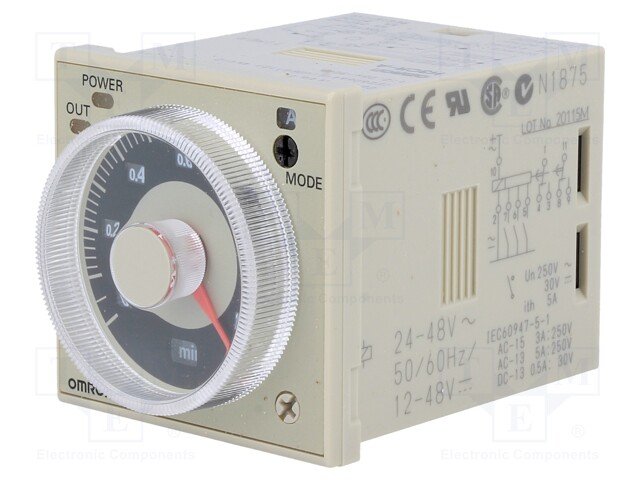

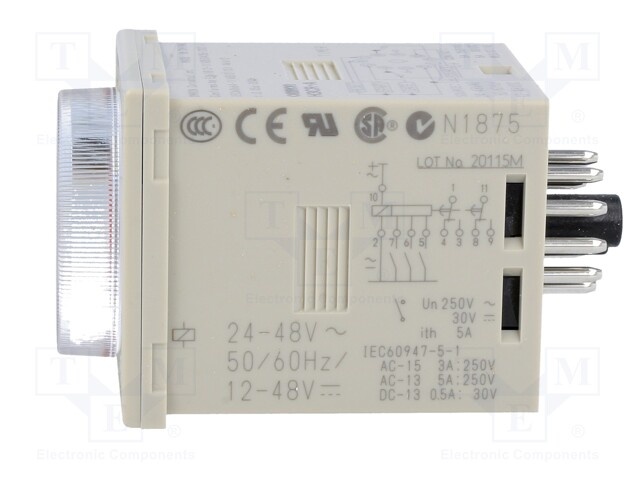

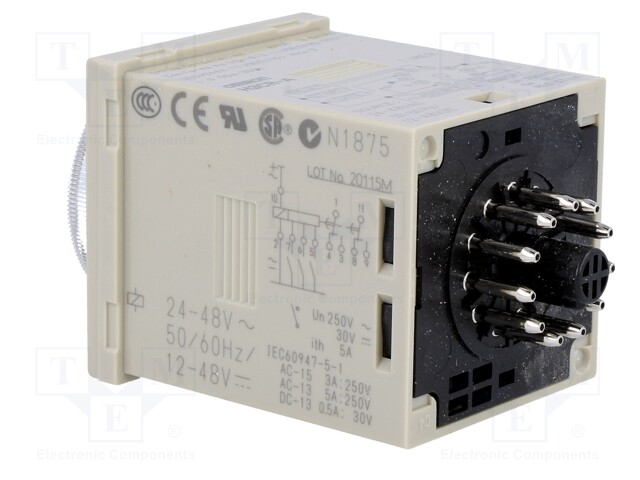

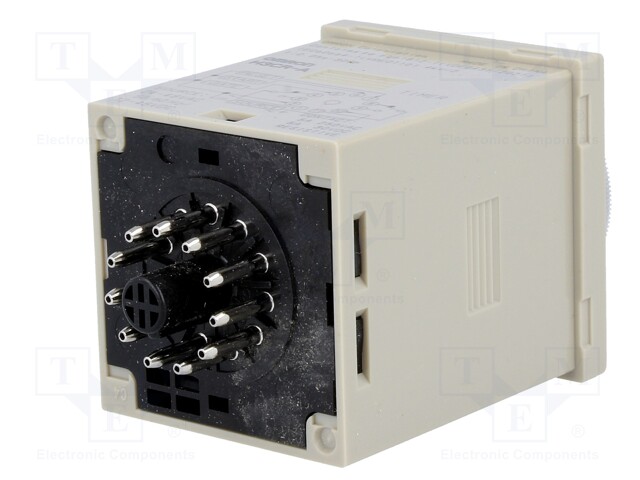

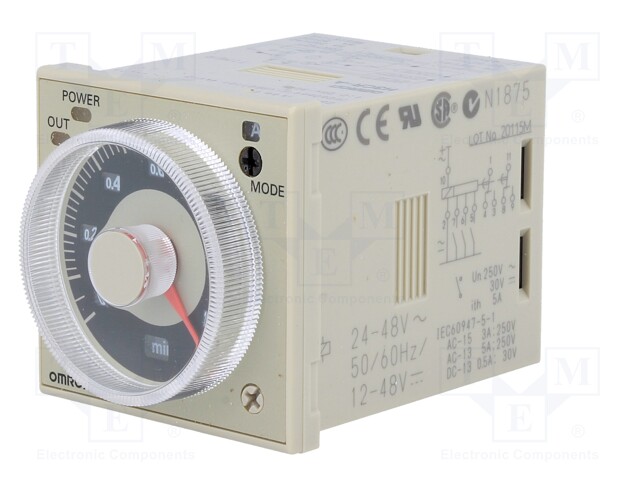

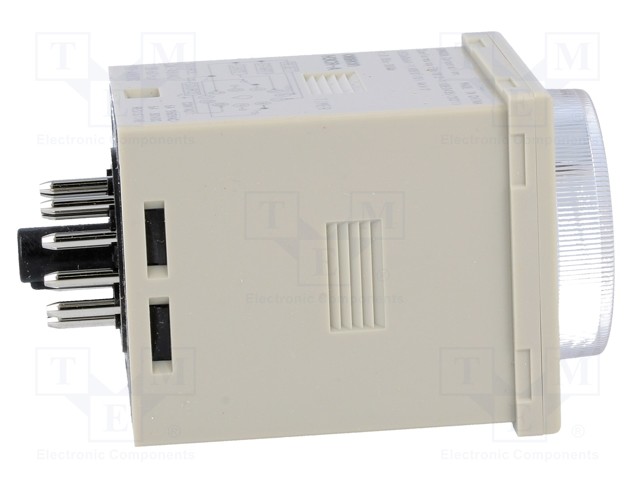

Timer; 0,05s÷300h; DPDT; 250VAC/5A; 24÷48VAC; 12÷48VDC; undecal
Kordarv:
1.0
Minimum quantity:
1.0
Tootekood:
H3CR-A24AC/DC
Tootja: OMRON
Tootja tootekood: H3CR-A 24-48AC/12-48DC
Product downloads
Spetsifikatsioon tootele Timer; 0,05s÷300h; DPDT; 250VAC/5A; 24÷48VAC; 12÷48VDC; undecal
| Mounting | on panel, socket |
| Supply voltage | 12...48V DC, 24...48V AC |
| Operating temperature | -10...55°C |
| IP rating | IP40 |
| Kind of connector | undecal |

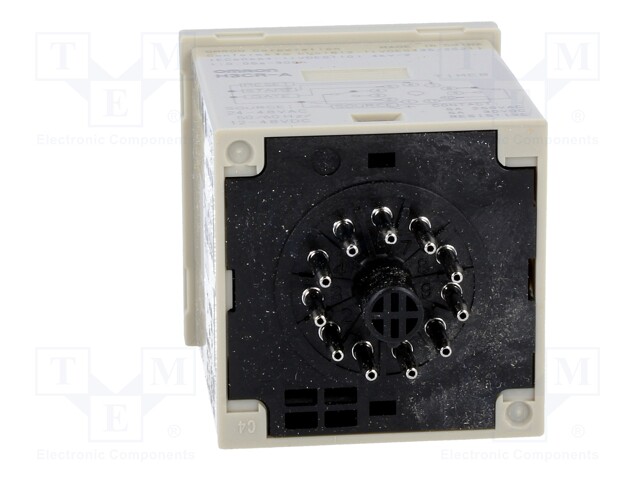

| Number of pins | 11 |
| Mounting hole diameter | 45x45mm |

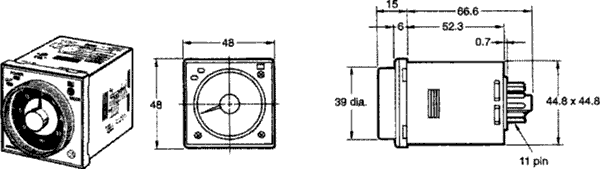

| Body dimensions | 48x48x81.6mm |
| Kind of output | DPDT |
| Electrical connection | round socket |
| Counting range | 0,05s...300h |
| Counter operation modes | delayed switching off, delayed switching on, ON and OFF delay, ON for the set interval, symmetrical cyclical operation pause first, symmetrical cyclical operation pulse first, with the control contact S |
| number of operation modes | 6 |

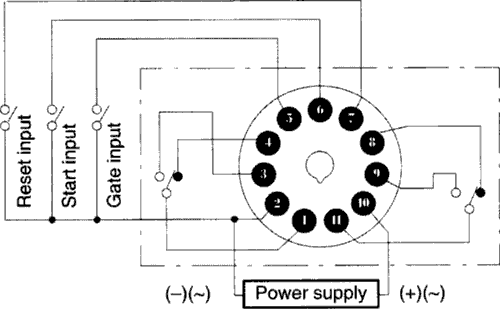

| The additional control inputs | gate, RESET, START |
