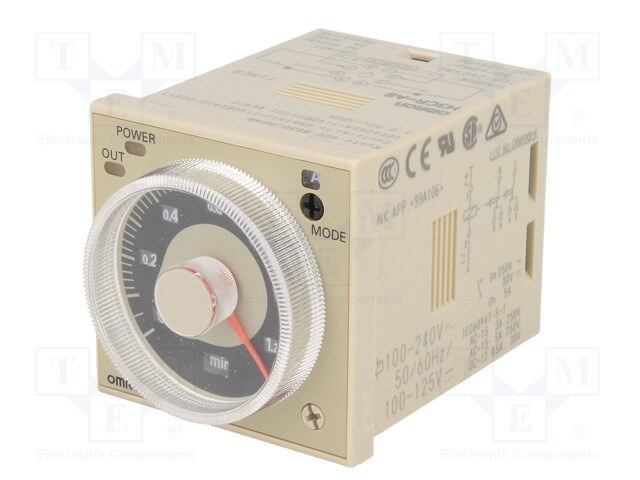

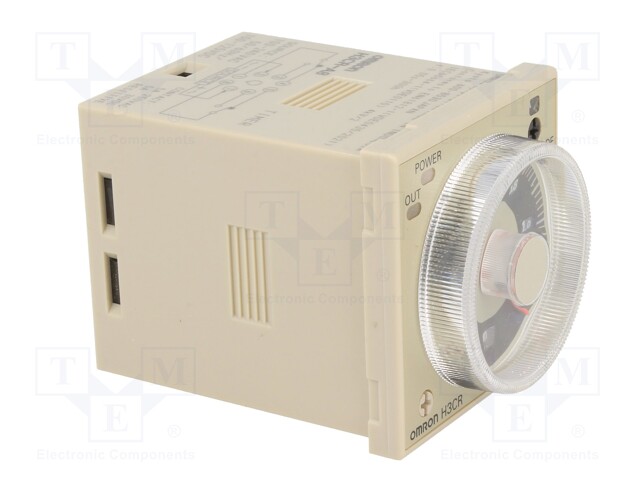

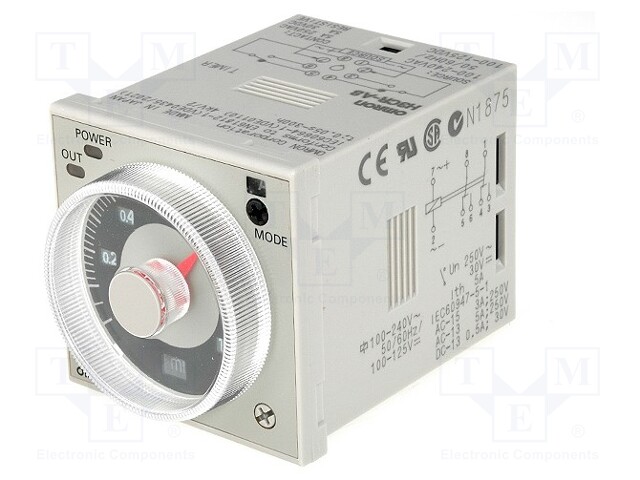

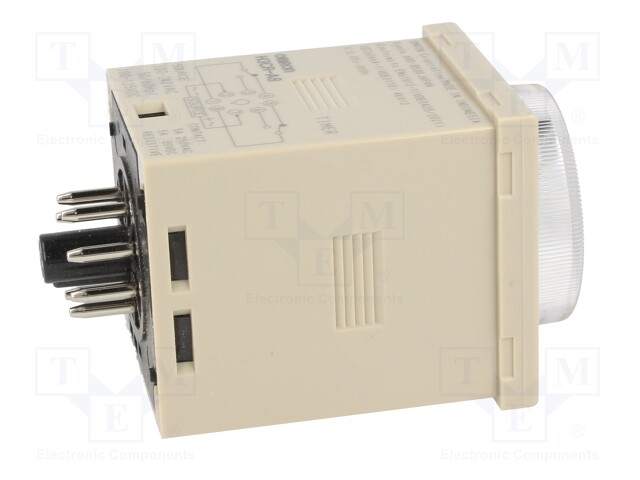

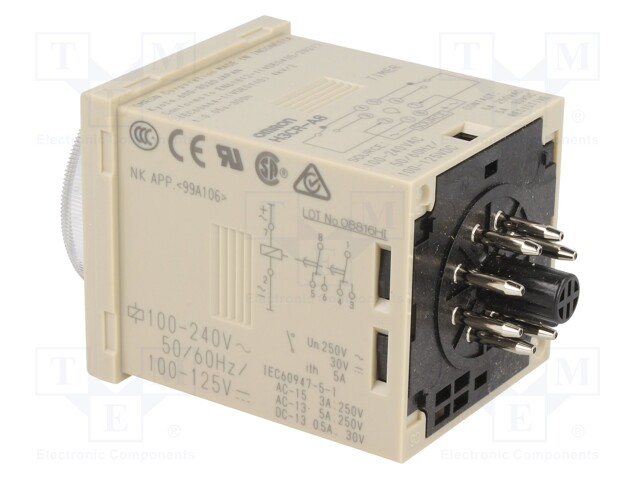

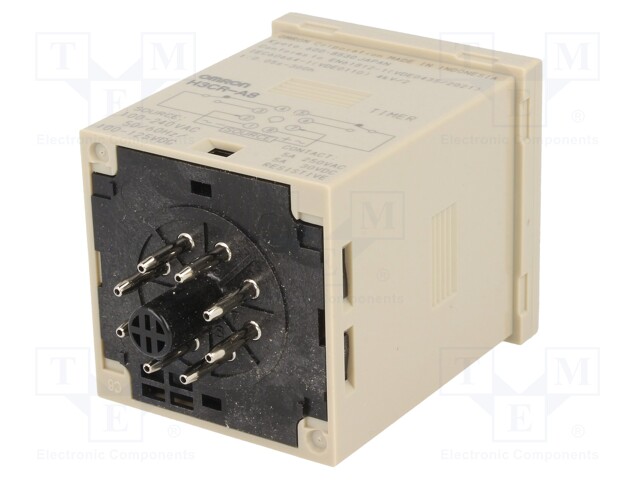

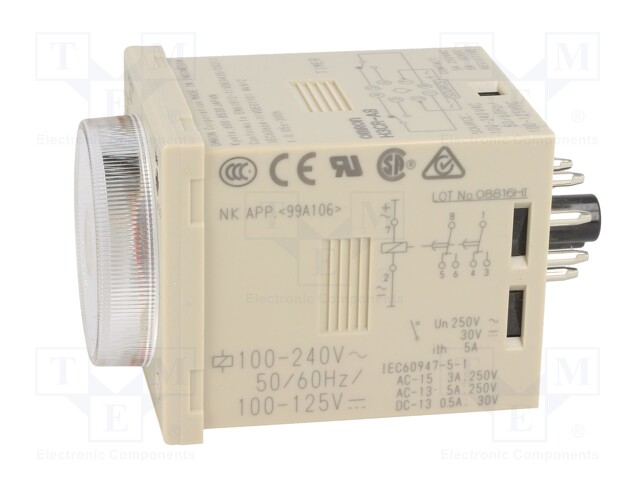

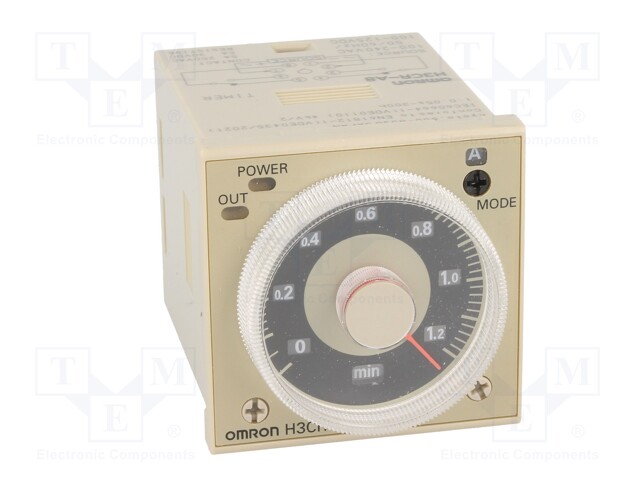

Timer; 0,05s÷300h; DPDT; 250VAC/5A; 100÷240VAC; 100÷125VDC; octal
Kordarv:
1.0
Minimum quantity:
1.0
Tootekood:
H3CR-A8/100-240
Tootja: OMRON
Tootja tootekood: H3CR-A8 100-240AC/100-125DC
Product downloads
Spetsifikatsioon tootele Timer; 0,05s÷300h; DPDT; 250VAC/5A; 100÷240VAC; 100÷125VDC; octal
| Mounting | on panel, socket, for DIN rail mounting |
| Supply voltage | 100...125V DC, 100...240V AC |
| Operating temperature | -10...55°C |
| IP rating | IP40 |

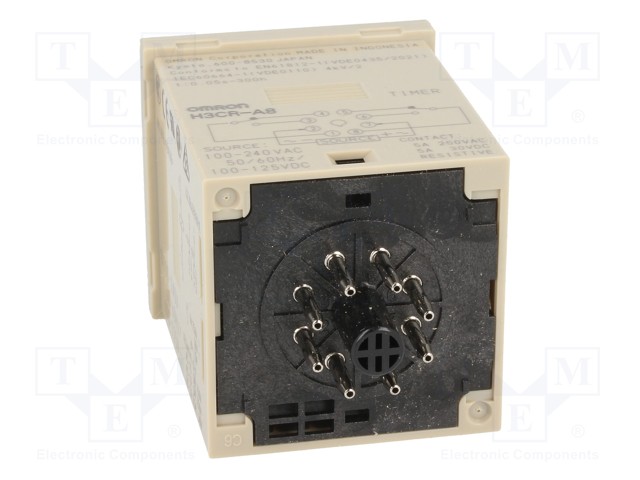

| Kind of connector | octal |

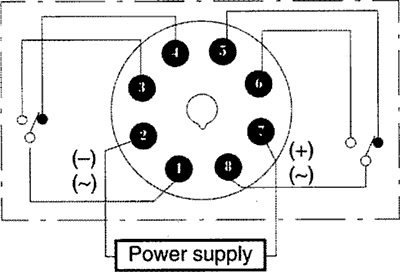

| Number of pins | 8 |
| Mounting hole diameter | 45x45mm |

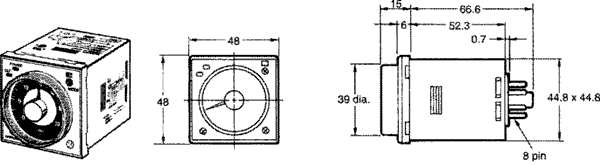

| Body dimensions | 48x48x81.6mm |
| Kind of output | DPDT |
| Electrical connection | round socket |
| Counting range | 0,05s...300h |
| Counter operation modes | delayed switching on, ON for the set interval, pulse after a specified time, symmetrical cyclical operation pulse first |
| number of operation modes | 4 |
