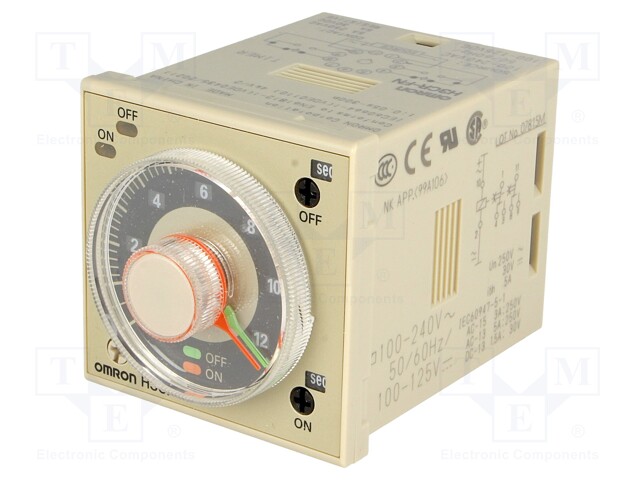

Timer; 0,05s÷30h; DPDT; 250VAC/5A; 100÷240VAC; undecal; -10÷55°C
Kordarv:
1.0
Minimum quantity:
1.0
Tootekood:
H3CR-FN 100-240AC/100-125DC
Tootja: OMRON
Tootja tootekood: H3CR-FN 100-240AC/100-125DC
Product downloads
Spetsifikatsioon tootele Timer; 0,05s÷30h; DPDT; 250VAC/5A; 100÷240VAC; undecal; -10÷55°C
| Mounting | on panel, socket, for DIN rail mounting |
| Supply voltage | 100...240V AC |
| Operating temperature | -10...55°C |
| IP rating | IP40 |
| Kind of connector | undecal |

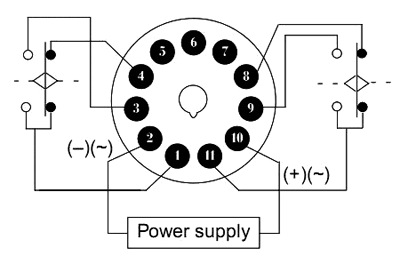

| Number of pins | 11 |
| Mounting hole diameter | 45x45mm |

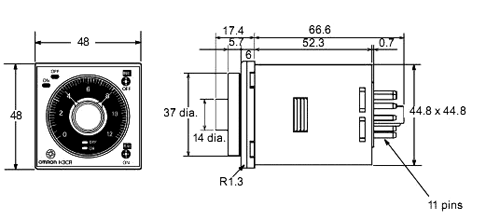

| Body dimensions | 48x48x81.6mm |
| Kind of output | DPDT |
| Indication | LED |
| Electrical connection | round socket |
| Counting range | 0,05s...30h |

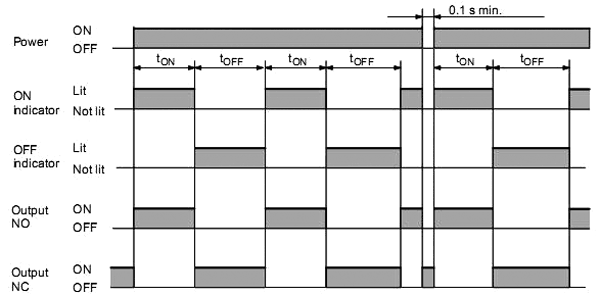

| Counter operation modes | cyclical operation with two independent times T1 and T2, pulse first |
| number of operation modes | 1 |
