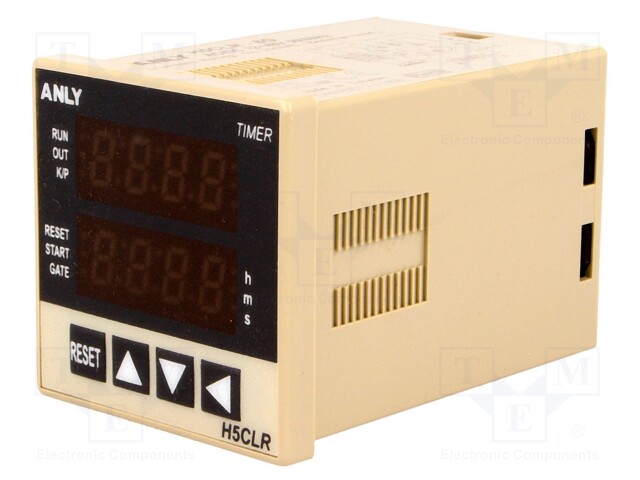

Timer; Range: 0,001s÷9999h; SPDT; 12÷48VAC; 12÷48VDC; octal; PIN: 8
Kordarv:
1.0
Minimum quantity:
1.0
Tootekood:
H5CLR-8G
Tootja: ANLY ELECTRONICS
Tootja tootekood: H5CLR-8G
Product downloads
Spetsifikatsioon tootele Timer; Range: 0,001s÷9999h; SPDT; 12÷48VAC; 12÷48VDC; octal; PIN: 8
| Mounting | on panel, socket, for DIN rail mounting |
| Supply voltage | 12...48V AC, 12...48V DC |
| Operating temperature | -10...50°C |

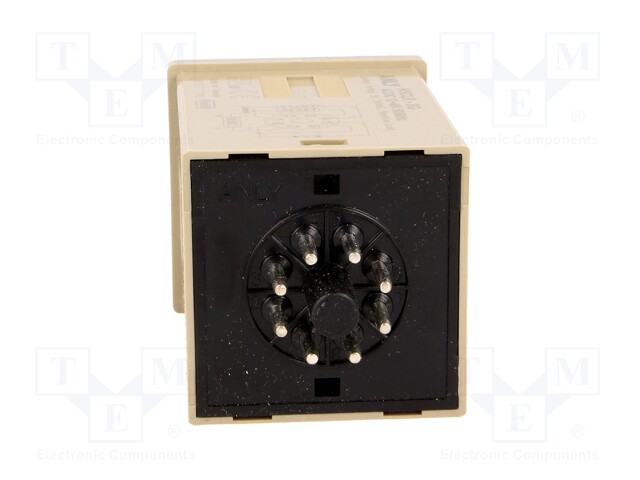

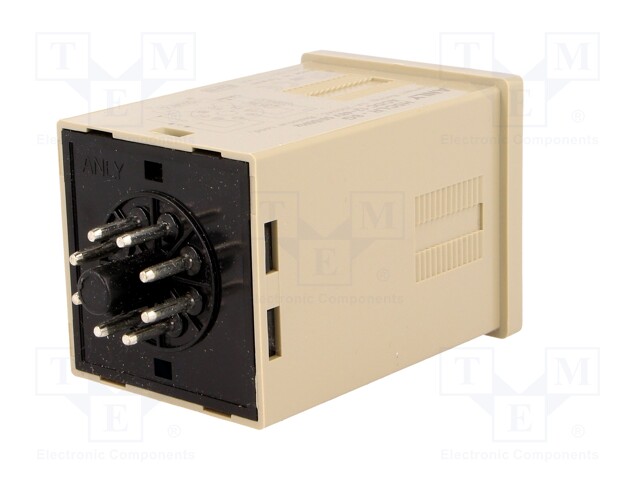

| Kind of connector | octal |
| Number of pins | 8 |
| Mounting hole diameter | 45x45mm |
| Kind of display used | 2x LED |
| Kind of output | SPDT |
| Indication | LED |
| Electrical connection | round socket |
| Counting range | 0,001s...9999h |
| Counter operation modes | cumulative, delayed switching off, delayed switching on, ON and OFF delay, ON for the set interval, symmetrical cyclical operation pause first, symmetrical cyclical operation pulse first, with the control contact S |
| Timers features | fitted with function for up and down time counting, memory and keypad functions blockade |
| number of operation modes | 11 |
| The additional control inputs | RESET, START |
