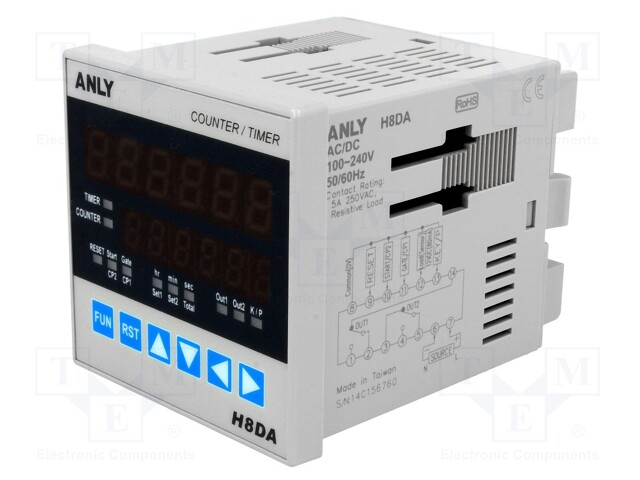

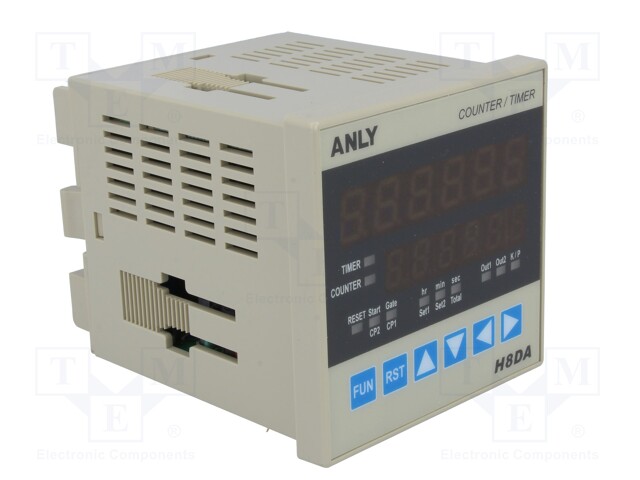

Counter: electronical; 2x LED; time/pulses; SPDT; IN 1: NPN,PNP
Kordarv:
1.0
Minimum quantity:
1.0
Tootekood:
H8DA 100-240V AC/DC
Tootja: ANLY ELECTRONICS
Tootja tootekood: H8DA 100-240V AC/DC
Product downloads
Spetsifikatsioon tootele Counter: electronical; 2x LED; time/pulses; SPDT; IN 1: NPN,PNP
| Mounting | on panel |
| Supply voltage | 100...240V AC, 100...240V DC |
| Operating temperature | -10...50°C |
| Mounting hole diameter | 67x67mm |
| Body dimensions | 72x72x72mm |
| Kind of display used | 2x LED |
| Power supply | external |
| Kind of input 1 | NPN, PNP |

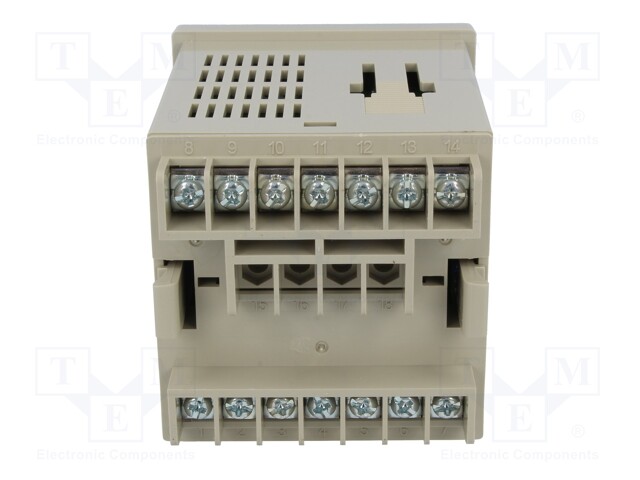

| Electrical connection | screw terminals |
| Counting range | 0,001s...9999h59min / 999999 |
| Kind of output 1 | SPDT |
| Counter operation modes | cyclical operation, delayed switching on, ON and OFF delay, ON for the set interval, with the control contact S |
| number of operation modes | 11 |
| Resetting method | electrical, manual |
| Kind of output 2 | SPDT |
| Type of counted signal | time/pulses |
| Type of counter | electronical |
| Max IN1 counting frequency | 10kHz |
| The additional control inputs | gate, RESET, START |
| Kind of counter | progressive/reversing, with access lock |
