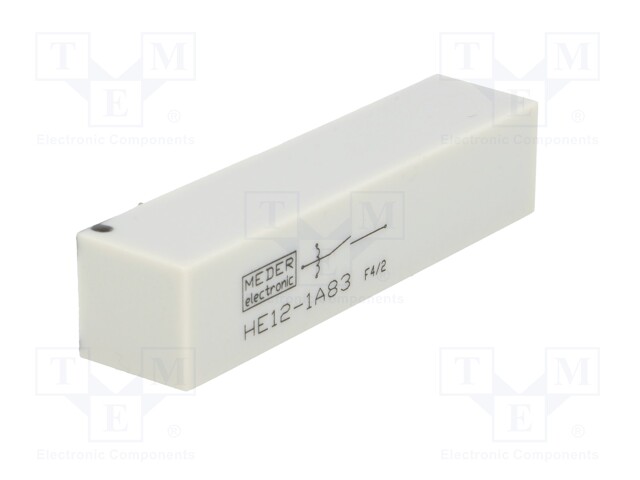

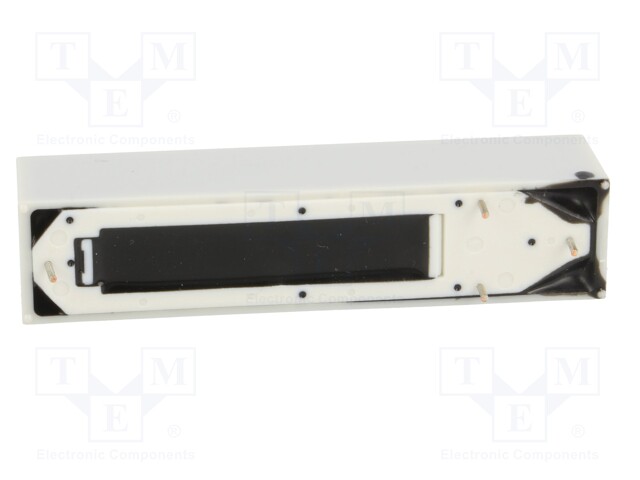

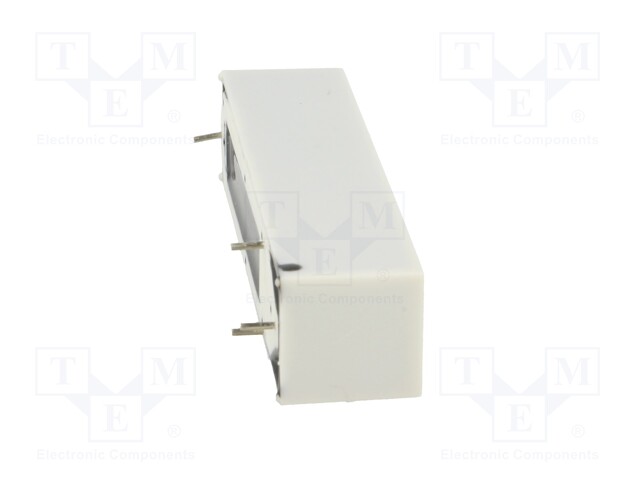

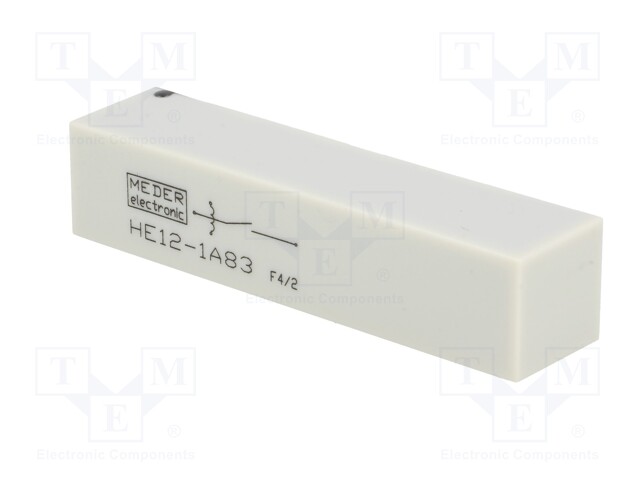

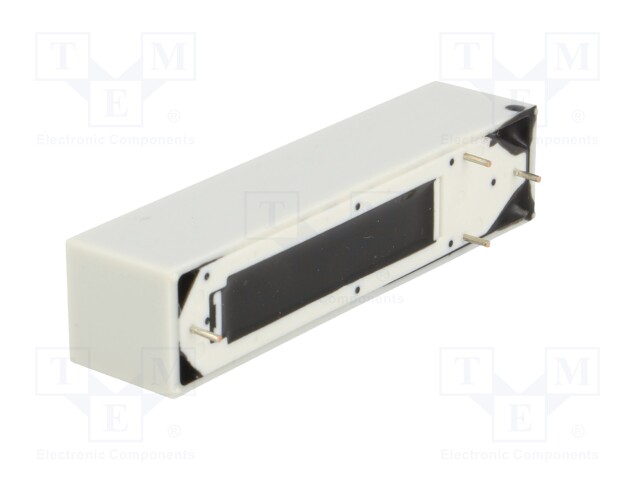

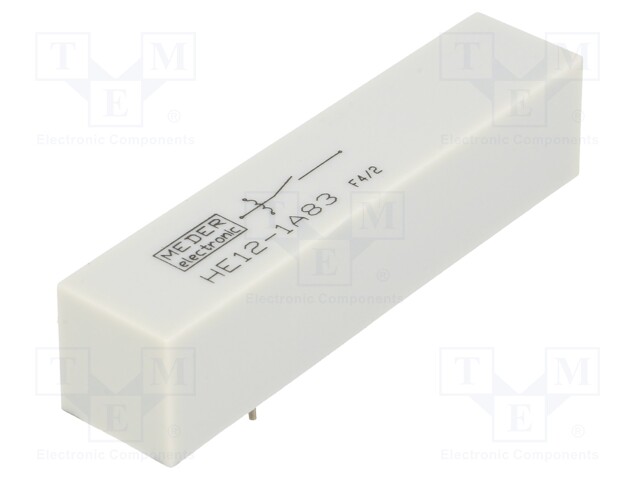

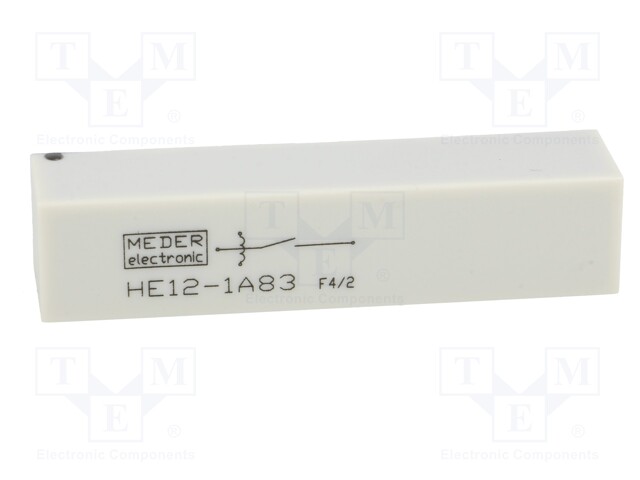

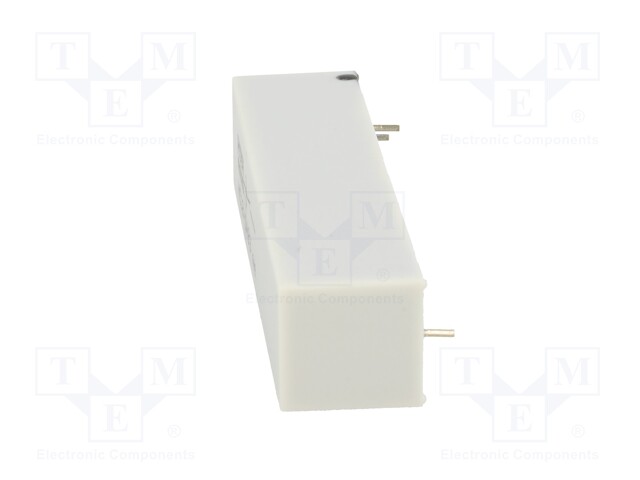

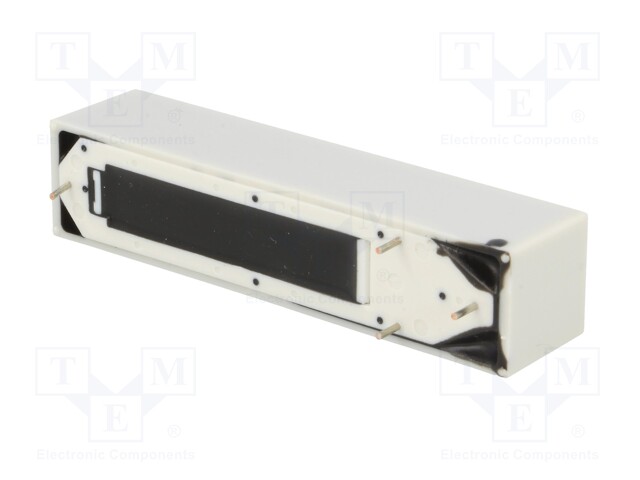

Relay: reed; SPST-NO; Ucoil: 12VDC; 5A; max.7.5kVDC; max.7.5kVAC

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: HE12-1A83
    Tootja: MEDER
    Tootja tootekood: HE12-1A83
    • Mounting
    • Operating temperature
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Min. insulation resistance
    • Switching capacity
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • Contact resistance
    • Contact current max.
    • Type of relay
    • Operate time
    • Release time

    34,65 € 34,65 € (KM-TA) 34.65 EUR

    34,65 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: reed; SPST-NO; Ucoil: 12VDC; 5A; max.7.5kVDC; max.7.5kVAC

    Mounting PCB
    Operating temperature -20...70°C
    Body dimensions 65x15.5x14.5mm
    Switched voltage ≤ 7.5kV DC, ≤ 7.5kV AC
    Min. insulation resistance 10GΩ
    Switching capacity 50W
    Coil resistance 260Ω
    Rated coil voltage 12V DC
    Contacts configuration SPST-NO
    Contact resistance 150mΩ
    Contact current max. 5A
    Type of relay reed
    Operate time 3.2ms
    Release time 1.5ms
