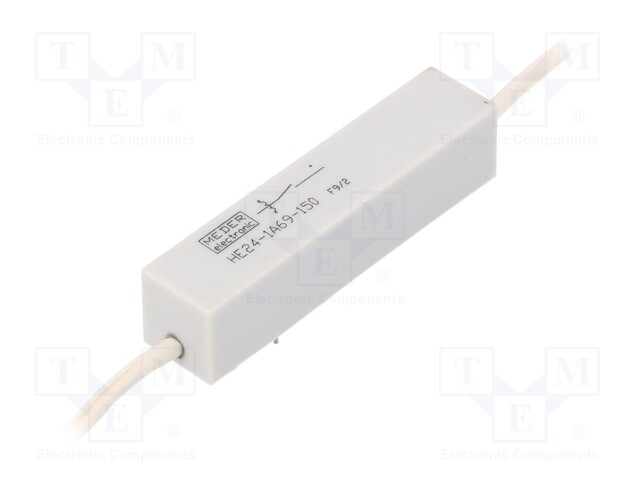

Relay: reed; SPST-NO; Ucoil: 24VDC; 5A; max.10kVDC; max.10kVAC; 50W

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: HE24-1A69-150
    Tootja: MEDER
    Tootja tootekood: HE24-1A69-150
    • Mounting
    • Operating temperature
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Min. insulation resistance
    • Switching capacity
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • Contact resistance
    • Contact current max.
    • Type of relay
    • Coil power consumption
    • Operate time
    • Release time

    55,05 € 55,05 € (KM-TA) 55.050000000000004 EUR

    55,05 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Spetsifikatsioon tootele Relay: reed; SPST-NO; Ucoil: 24VDC; 5A; max.10kVDC; max.10kVAC; 50W

    Mounting PCB
    Operating temperature -20...70°C

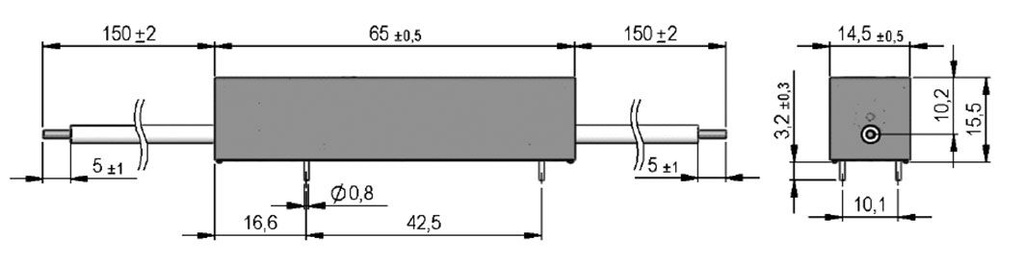

    Body dimensions 65x15.5x14.5mm
    Switched voltage ≤ 10kV AC, ≤ 10kV DC
    Min. insulation resistance 10TΩ
    Switching capacity 50W
    Coil resistance 465Ω
    Rated coil voltage 24V DC
    Contacts configuration SPST-NO
    Contact resistance 150mΩ
    Contact current max. 5A
    Type of relay reed
    Coil power consumption 1.24W
    Operate time 3ms
    Release time 1.5ms
