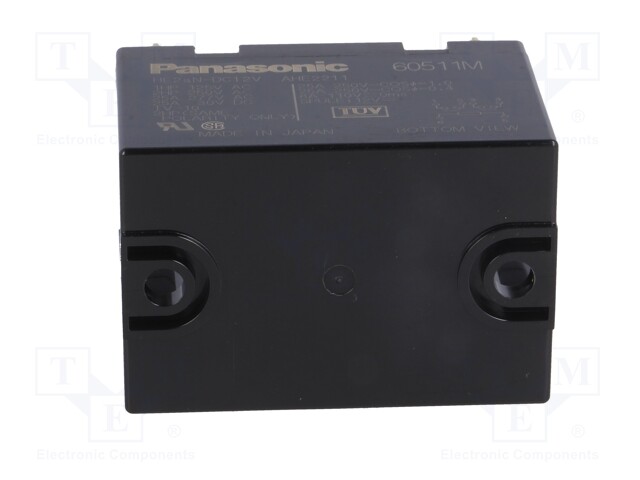

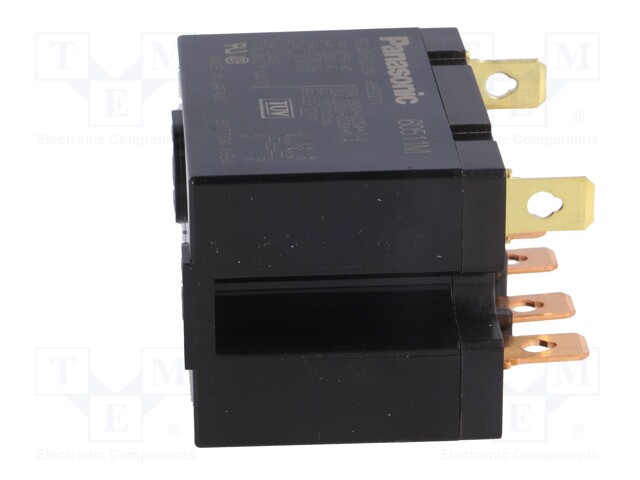

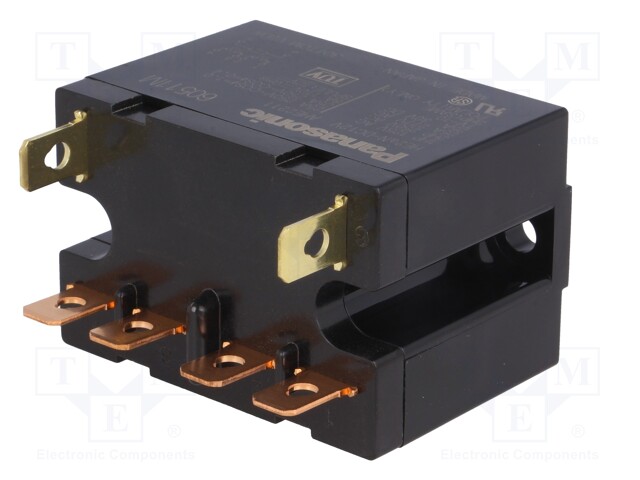

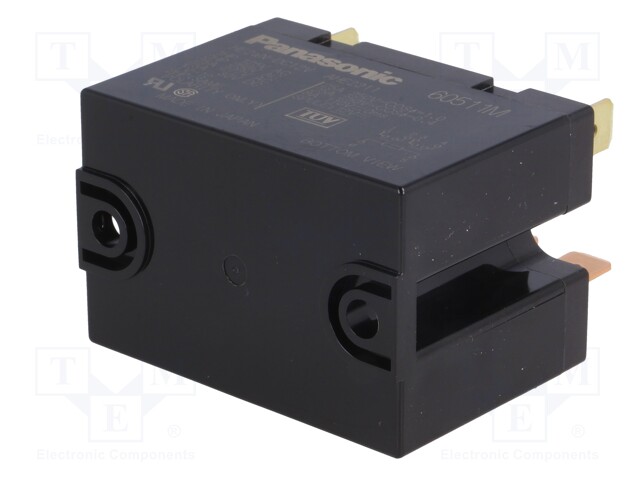

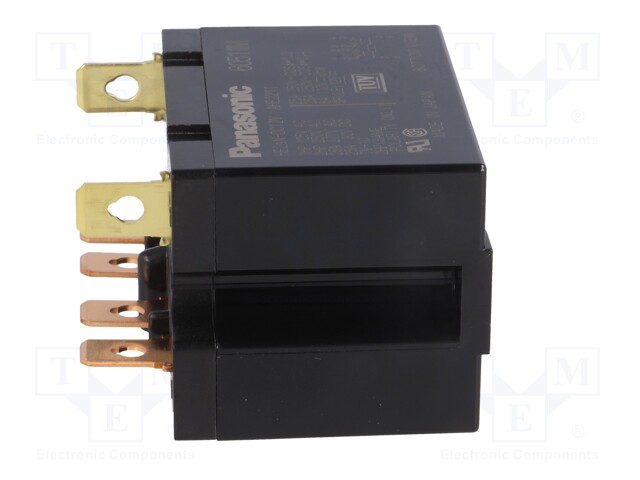

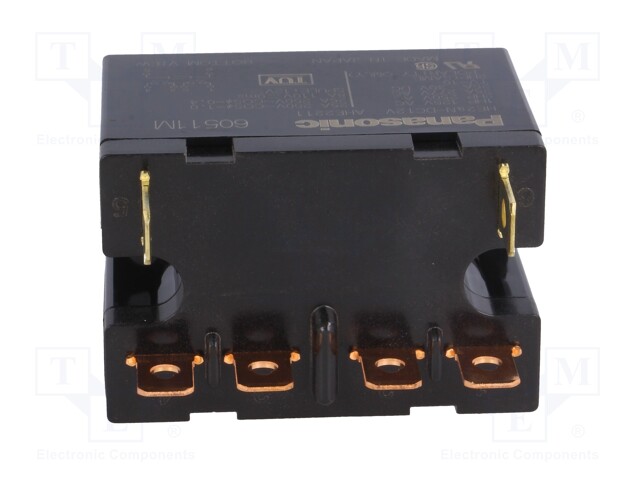

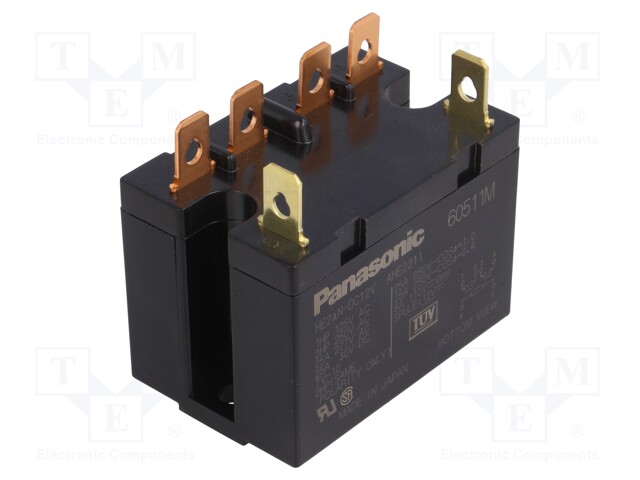

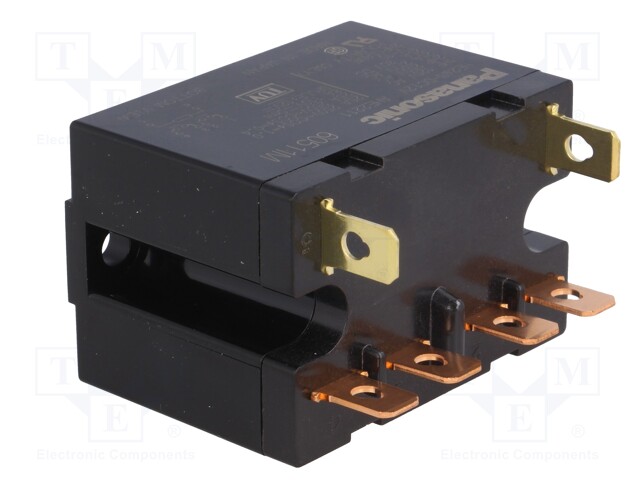

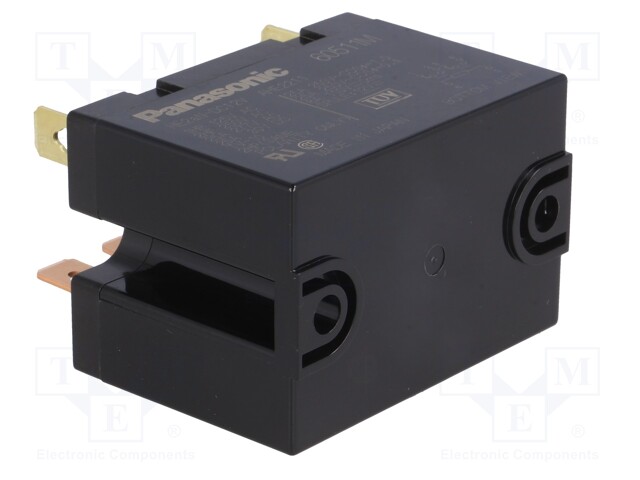

Relay: electromagnetic; DPST-NO; Ucoil: 12VDC; Icontacts max: 25A

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: HE2AN-DC12V
    Tootja: PANASONIC
    Tootja tootekood: HE2AN-DC12V
    • Mounting
    • Operating temperature
    • Contact material
    • Body dimensions
    • Mechanical durability
    • Switched voltage
    • Switched voltage
    • Switching capacity
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil voltage min.
    • Coil power consumption
    • Operate time
    • Release time
    • Coil current

    21,50 € 21,50 € (KM-TA) 21.5 EUR

    21,50 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; DPST-NO; Ucoil: 12VDC; Icontacts max: 25A

    Mounting on panel
    Operating temperature -50...55°C
    Contact material AgSnO<sub>2</sub>
    Body dimensions 50x33x35mm
    Mechanical durability 10000000cycles
    Switched voltage ≤ 30V DC, ≤ 277V AC
    Switching capacity 8.31kVA
    Coil resistance 75Ω
    Rated coil voltage 12V DC
    Contacts configuration DPST-NO
    DC contacts rating @R 25A / 30V DC
    AC contacts rating @R 25A / 277V AC
    Contact current max. 25A
    Relay variant power
    Type of relay electromagnetic
    Coil voltage min. 8.4V DC
    Coil power consumption 1.92W
    Operate time 30ms
    Release time 10ms
    Coil current 160mA
