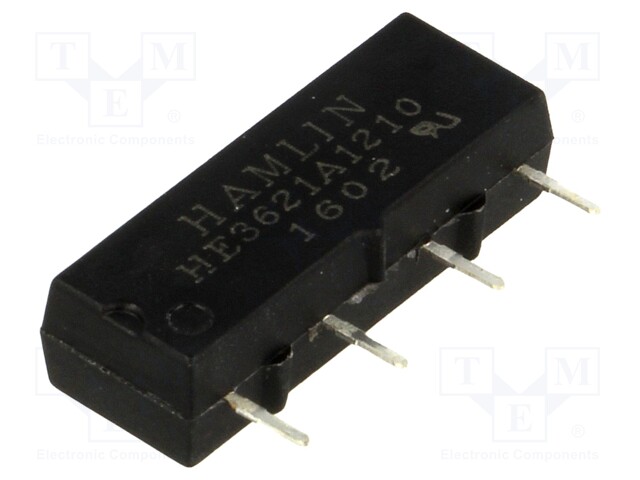

Relay: reed; SPST-NO; Ucoil: 12VDC; 500mA; max.200VDC; 10W; PCB; SIL

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: HE3621A1210
    Tootja: LITTELFUSE
    Tootja tootekood: HE3621A1210
    • Mounting
    • Case
    • Operating temperature
    • Terminal pitch
    • Body dimensions
    • Switched voltage
    • Switching capacity
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • Contact resistance
    • Contact current max.
    • Coil voltage max.
    • Type of relay
    • Coil voltage min.
    • Coil power consumption
    • Optional equipment

    0,00 € 0,00 € (KM-TA) 0.0 EUR

    0,00 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: reed; SPST-NO; Ucoil: 12VDC; 500mA; max.200VDC; 10W; PCB; SIL

    Mounting PCB
    Case SIL
    Operating temperature -40...85°C
    Terminal pitch 5.08mm
    Body dimensions 5.08x7.45x19.05mm
    Switched voltage ≤ 200V DC
    Switching capacity 10W
    Coil resistance 1kΩ
    Rated coil voltage 12V DC
    Contacts configuration SPST-NO
    Contact resistance 150mΩ
    Contact current max. 500mA
    Coil voltage max. 22V DC
    Type of relay reed
    Coil voltage min. 8V DC
    Coil power consumption 144mW
    Optional equipment overvoltage damping diode
