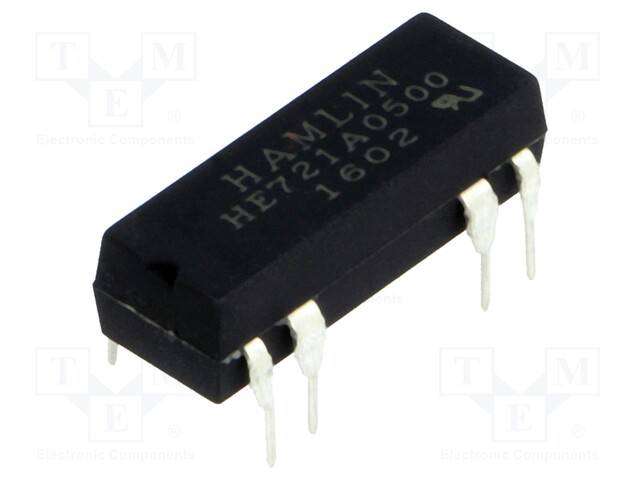

Relay: reed; SPST-NO; Ucoil: 5VDC; max.200VDC; Rcoil: 500Ω; 50mW; PCB

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: HE721A0500
    Tootja: LITTELFUSE
    Tootja tootekood: HE721A0500
    • Mounting
    • Case
    • Operating temperature
    • Terminal pitch
    • Body dimensions
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • Contact resistance
    • Coil voltage max.
    • Type of relay
    • Coil voltage min.
    • Coil power consumption

    0,00 € 0,00 € (KM-TA) 0.0 EUR

    0,00 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: reed; SPST-NO; Ucoil: 5VDC; max.200VDC; Rcoil: 500Ω; 50mW; PCB

    Mounting PCB
    Case DIP
    Operating temperature -40...85°C
    Terminal pitch 2.54mm
    Body dimensions 5.5x7.22x19.05mm
    Switched voltage ≤ 200V DC
    Coil resistance 500Ω
    Rated coil voltage 5V DC
    Contacts configuration SPST-NO
    Contact resistance 150mΩ
    Coil voltage max. 12V DC
    Type of relay reed
    Coil voltage min. 3.75V DC
    Coil power consumption 50mW
