Relay: reed; SPST-NO; Ucoil: 24VDC; max.200VDC; Rcoil: 2150Ω; 268mW

    Kordarv: 500.0
    Minimum quantity: 500.0
    Tootekood: HE721A2410
    Tootja: LITTELFUSE
    Tootja tootekood: HE721A2410
    • Mounting
    • Case
    • Operating temperature
    • Terminal pitch
    • Body dimensions
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • Contact resistance
    • Coil voltage max.
    • Type of relay
    • Coil voltage min.
    • Coil power consumption
    • Optional equipment

    1,88 € 1,88 € (KM-TA) 1.8800000000000001 EUR

    1,88 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: reed; SPST-NO; Ucoil: 24VDC; max.200VDC; Rcoil: 2150Ω; 268mW

    Mounting PCB
    Case DIP
    Operating temperature -40...85°C
    Terminal pitch 2.54mm

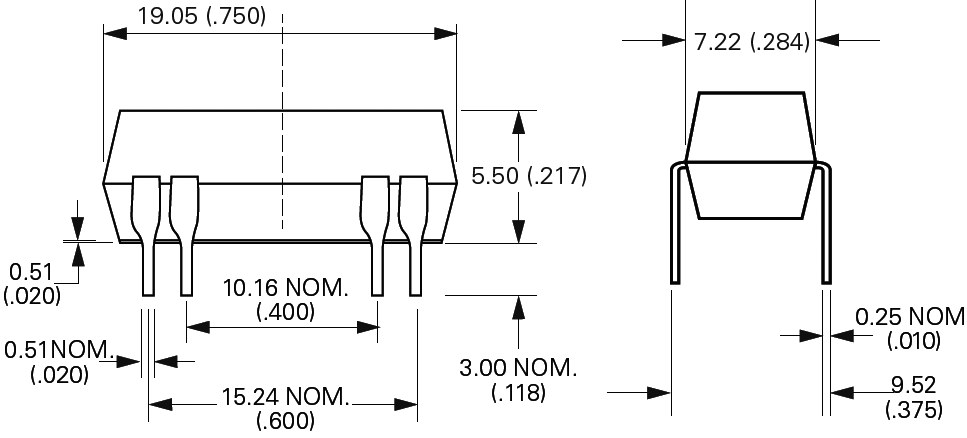

    Body dimensions 5.5x7.22x19.05mm
    Switched voltage ≤ 200V DC
    Coil resistance 2.15kΩ
    Rated coil voltage 24V DC
    Contacts configuration SPST-NO
    Contact resistance 150mΩ
    Coil voltage max. 46V DC
    Type of relay reed
    Coil voltage min. 16V DC
    Coil power consumption 268mW
    Optional equipment overvoltage damping diode
