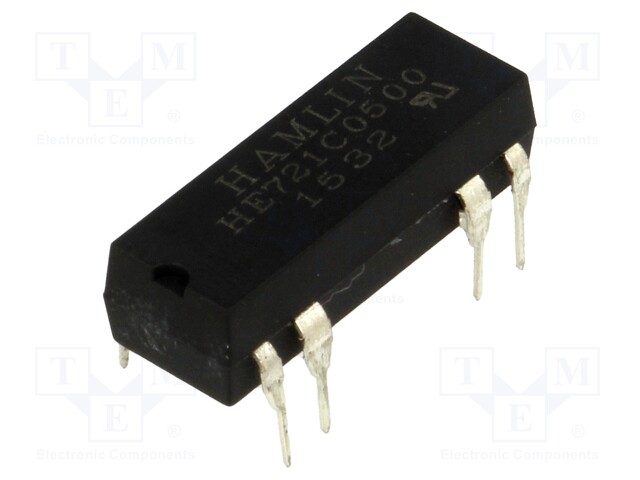

Relay: reed; SPDT; Ucoil: 5VDC; max.175VDC; Rcoil: 200Ω; 125mW; PCB

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: HE721C0500
    Tootja: LITTELFUSE
    Tootja tootekood: HE721C0500
    • Mounting
    • Case
    • Operating temperature
    • Terminal pitch
    • Body dimensions
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • Contact resistance
    • Coil voltage max.
    • Type of relay
    • Coil voltage min.
    • Coil power consumption

    8,48 € 8,48 € (KM-TA) 8.48 EUR

    8,48 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: reed; SPDT; Ucoil: 5VDC; max.175VDC; Rcoil: 200Ω; 125mW; PCB

    Mounting PCB
    Case DIP
    Operating temperature -40...85°C
    Terminal pitch 2.54mm
    Body dimensions 5.5x7.22x19.05mm
    Switched voltage ≤ 175V DC
    Coil resistance 200Ω
    Rated coil voltage 5V DC
    Contacts configuration SPDT
    Contact resistance 200mΩ
    Coil voltage max. 14V DC
    Type of relay reed
    Coil voltage min. 3.75V DC
    Coil power consumption 125mW
