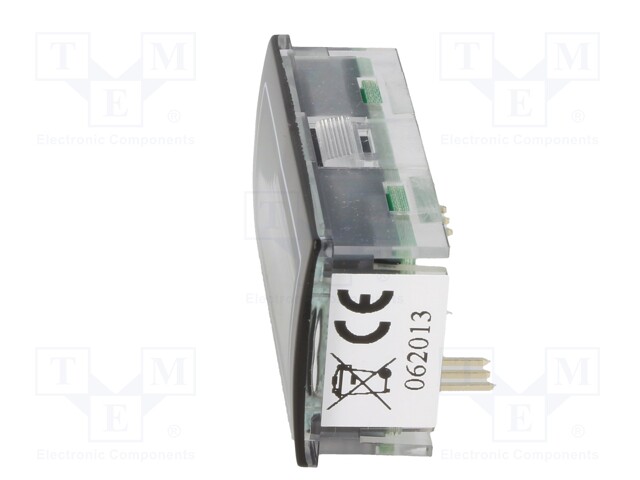

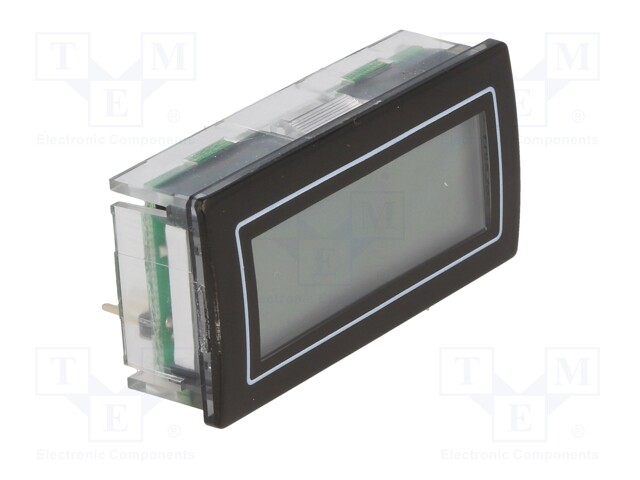

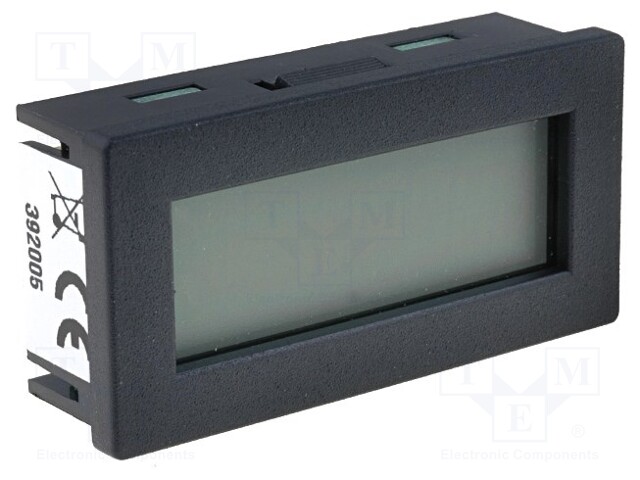

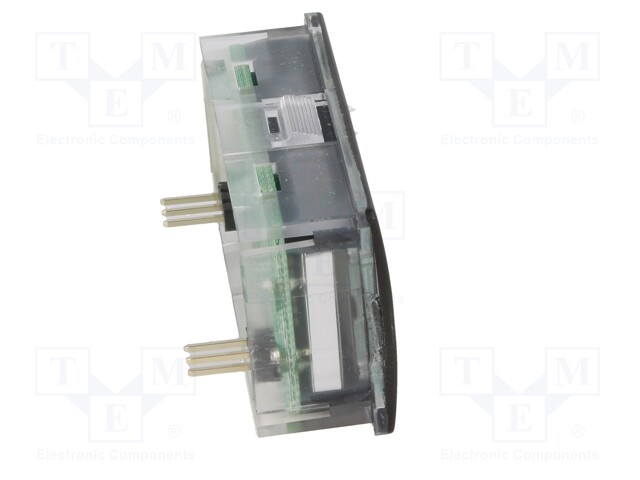

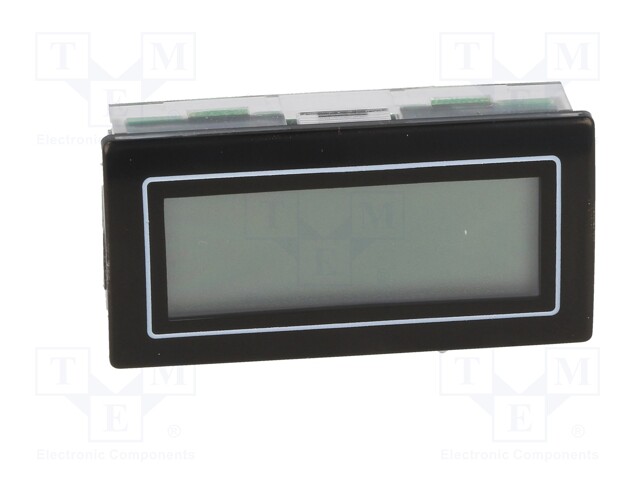

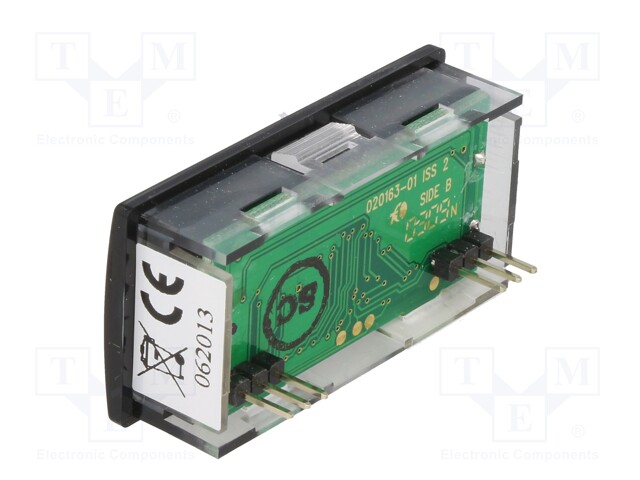

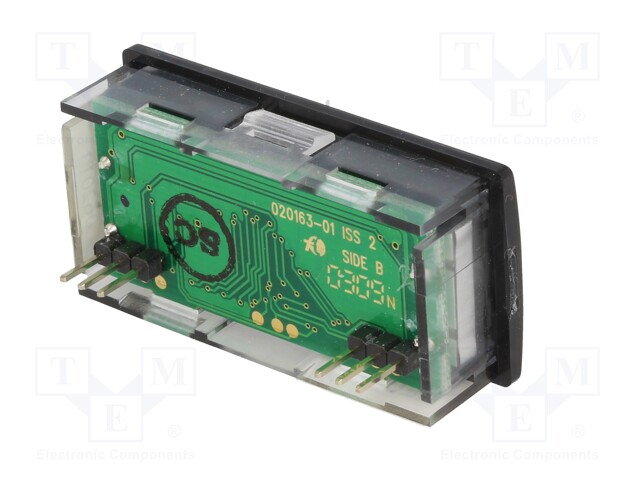

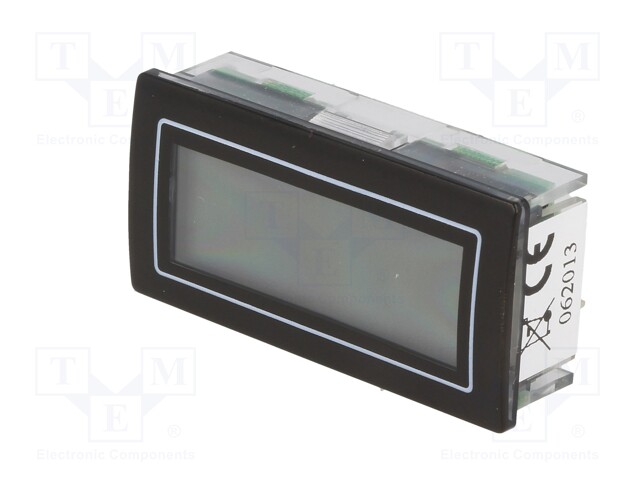

Counter: electronical; LCD,with a backlit; pulses; 99999999; IP20
Kordarv:
1.0
Minimum quantity:
1.0
Tootekood:
HED261-T
Tootja: TRUMETER
Tootja tootekood: HED261-T
Product downloads
Spetsifikatsioon tootele Counter: electronical; LCD,with a backlit; pulses; 99999999; IP20
| Mounting | PCB |
| Operating temperature | 0...50°C |
| IP rating | IP20 |
| Mounting hole diameter | 45.3x22.2mm |

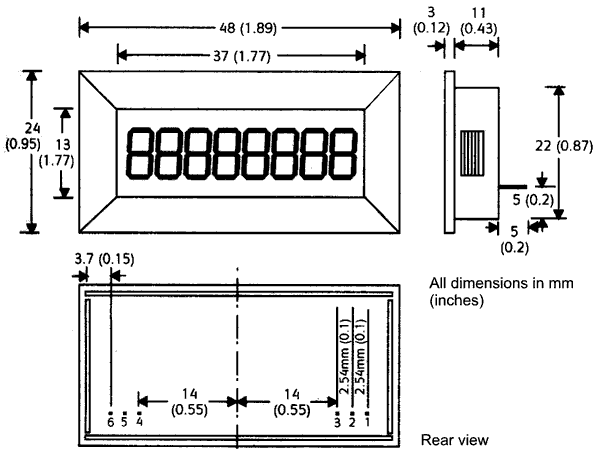

| Body dimensions | 48x24x14mm |
| Kind of display used | LCD |
| Power supply | battery 2.7-3.3V, external |
| Kind of input 1 | contact, OC |

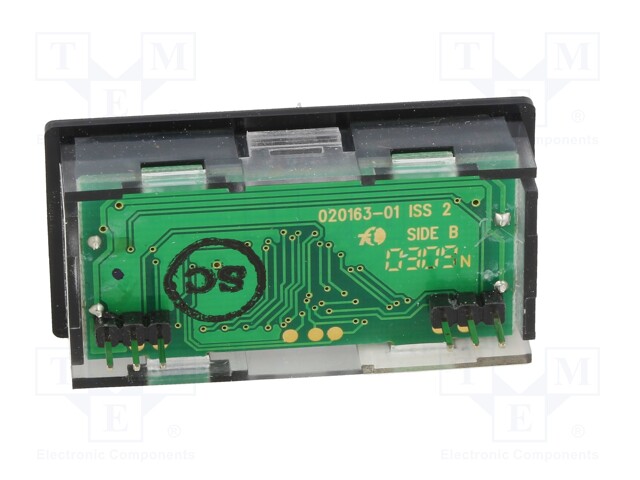

| Electrical connection | pin headers with 2,54mm pitch |
| Counting range | 99999999 |
| Resetting method | electrical |
| Kind of input 2 | voltage |

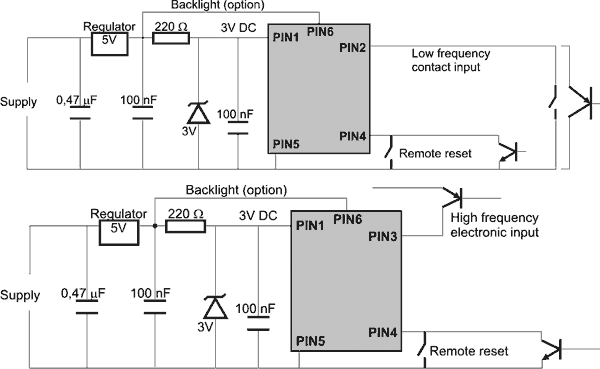

| Input 1 properties | PIN2, negative edge activation, threshold 0.7V, max 18V, minimal pulse length 25ms |
| Type of counted signal | pulses |
| Type of counter | electronical |
| Display height 1 | 8mm |
| Max IN1 counting frequency | 30Hz |
| IN2 max counting frequency | 10kHz |
| Input 2 properties | PIN3 - negative edge activation, threshold 0,7V, max 18V, pulse length 50µs ( TTL/CMOS compatible) |
| Erasing features | PIN4 - remote contact / OC, negative edge activation, threshold 0.7 V, max 18 V, minimal pulse length 15ms |
