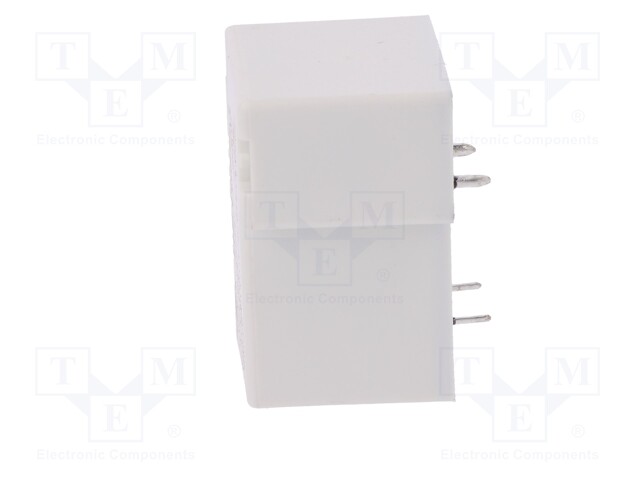

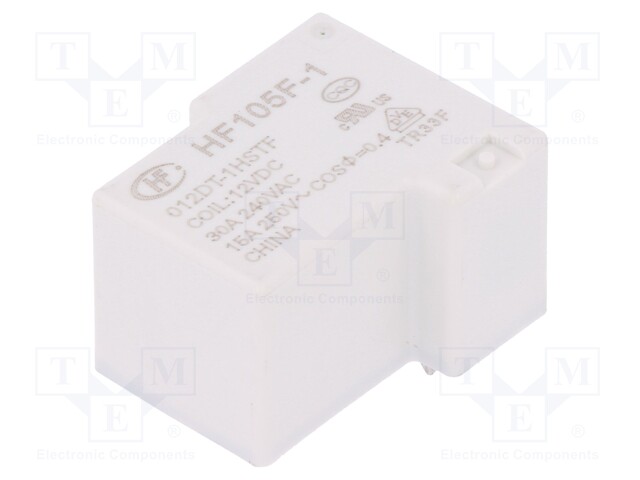

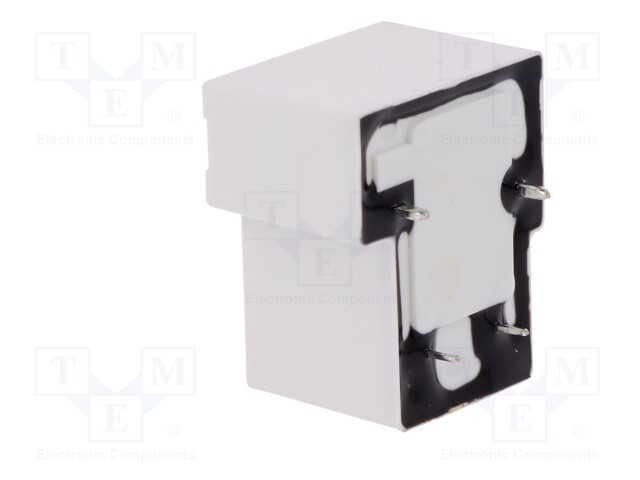

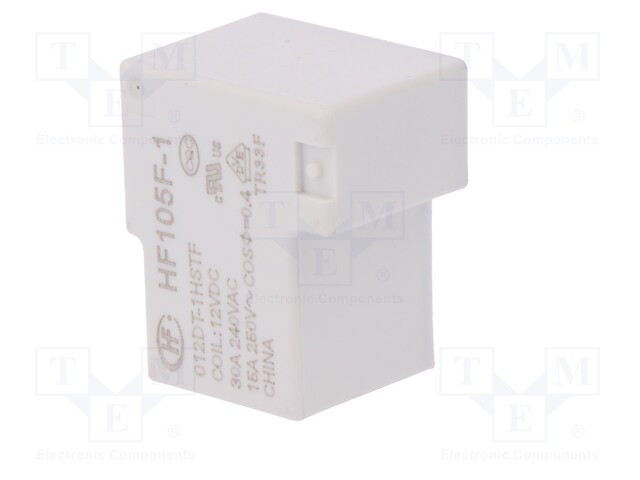

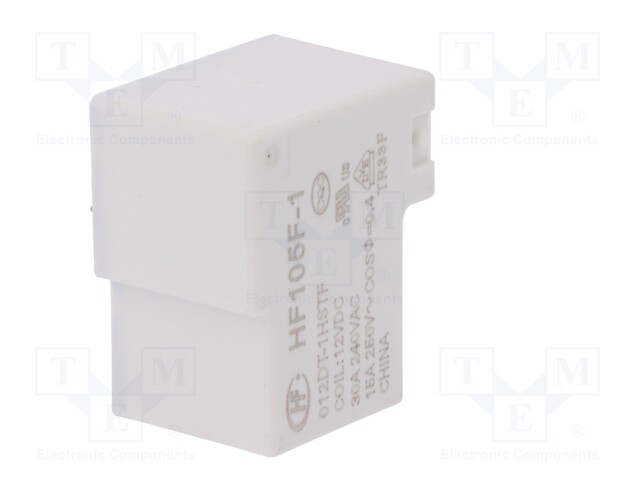

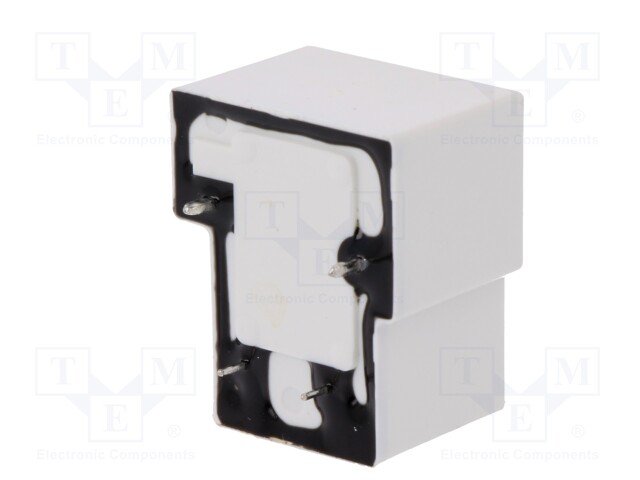

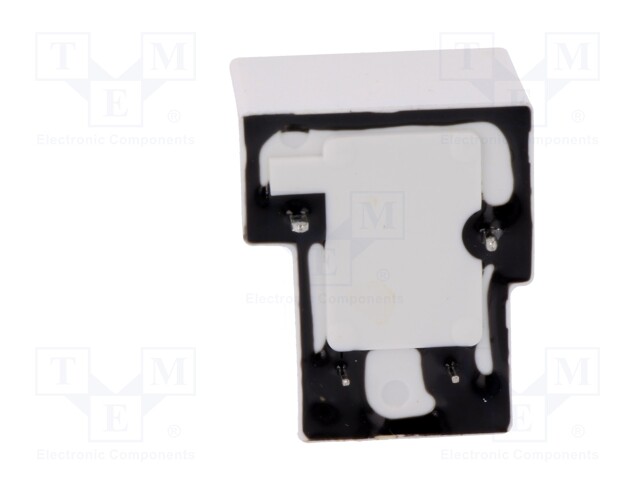

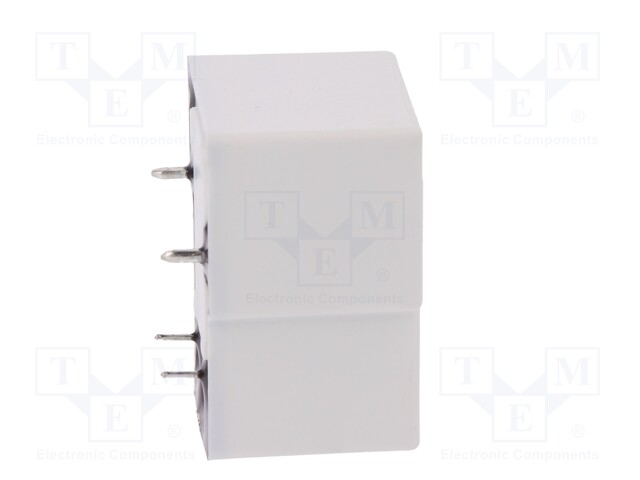

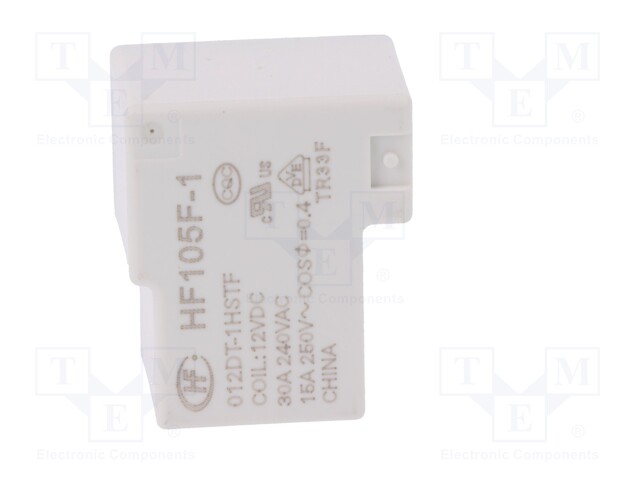

Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 40A; Ucoil min: 9VDC

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: HF105F-1/012DT-1HSTF
    Tootja: HONGFA RELAY
    Tootja tootekood: HF105F-1/012DT-1HSTF
    • Mounting
    • Operating temperature
    • Contact material
    • Body dimensions
    • Mechanical durability
    • Switched voltage
    • Switched voltage
    • Switching capacity
    • Switching capacity
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil voltage min.
    • Coil power consumption
    • Operate time
    • Release time

    0,00 € 0,00 € (KM-TA) 0.0 EUR

    0,00 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 40A; Ucoil min: 9VDC

    Mounting PCB
    Operating temperature -55...85°C
    Contact material AgSnO<sub>2</sub>

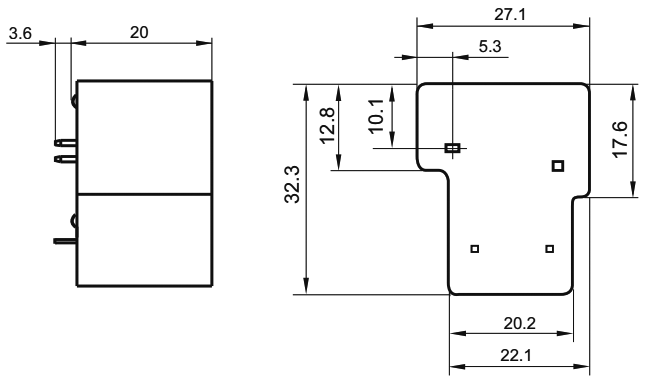

    Body dimensions 32.3x27.1x20mm
    Mechanical durability 10000000cycles
    Switched voltage ≤ 28V DC, ≤ 277V AC
    Switching capacity 560W, 7.2kVA
    Coil resistance 155Ω
    Rated coil voltage 12V DC

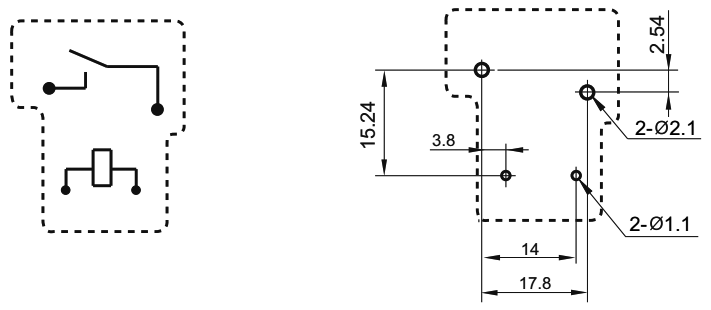

    Contacts configuration SPST-NO
    DC contacts rating @R 20A / 28V DC
    Contact resistance 50mΩ
    AC contacts rating @R 30A / 240V AC
    Contact current max. 40A
    Relay variant power
    Type of relay electromagnetic
    Coil voltage min. 9V DC
    Coil power consumption 0.9W
    Operate time 15ms
    Release time 10ms
