Relay: electromagnetic; SPDT; Ucoil: 24VDC; 16A; 16A/250VAC; PCB

    Kordarv: 500.0
    Minimum quantity: 500.0
    Tootekood: HF115FK/24-Z3T
    Tootja: HONGFA RELAY
    Tootja tootekood: HF115FK/24-Z3T
    • Mounting
    • Operating temperature
    • Contact material
    • Terminal pitch
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Coil voltage max.
    • Type of relay
    • Coil voltage min.
    • Coil power consumption
    • Operate time
    • Release time

    0,00 € 0,00 € (KM-TA) 0.0 EUR

    0,00 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; SPDT; Ucoil: 24VDC; 16A; 16A/250VAC; PCB

    Mounting PCB
    Operating temperature -40...85°C
    Contact material AgSnO<sub>2</sub>
    Terminal pitch 5mm

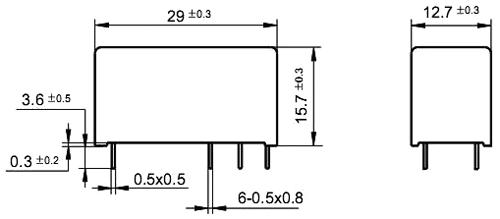

    Body dimensions 29x12.7x15.7mm
    Switched voltage ≤ 400V AC, ≤ 400V DC
    Coil resistance 1.44kΩ
    Rated coil voltage 24V DC
    Contacts configuration SPDT
    Contact resistance 100MΩ
    AC contacts rating @R 16A / 250V AC
    Contact current max. 16A
    Relay variant miniature
    Coil voltage max. 36V DC
    Type of relay electromagnetic
    Coil voltage min. 16.8V DC
    Coil power consumption 400mW
    Operate time 10ms
    Release time 5ms
