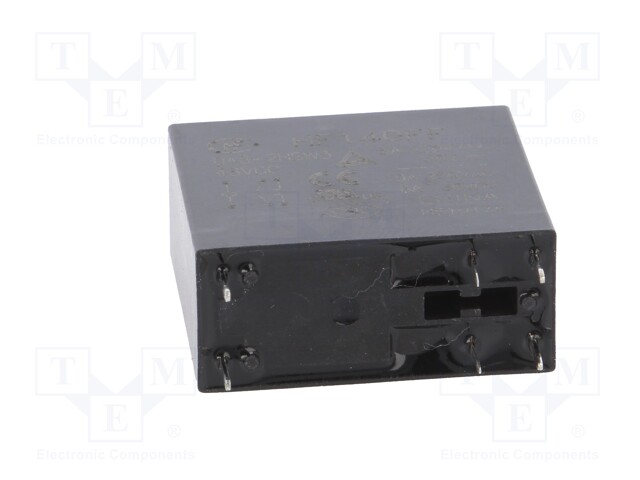

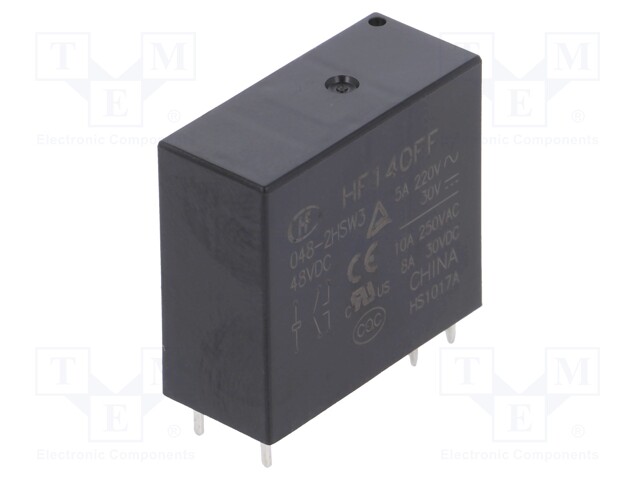

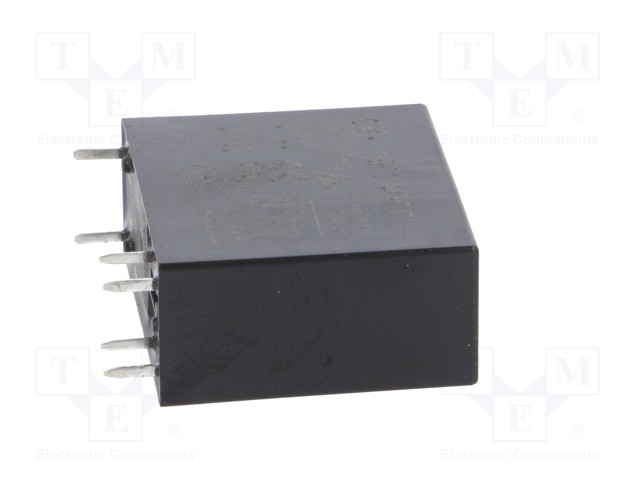

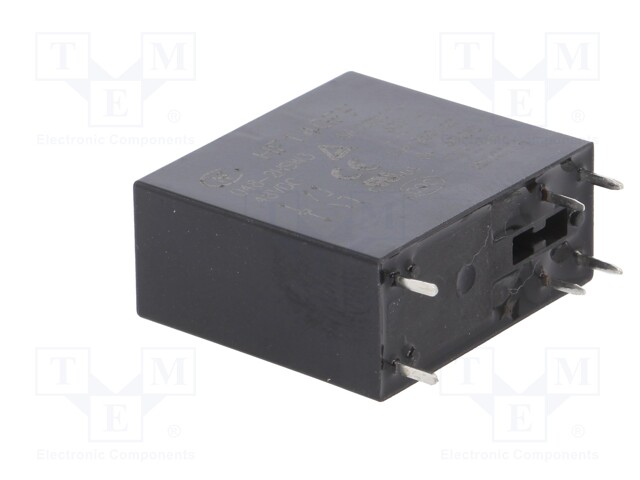

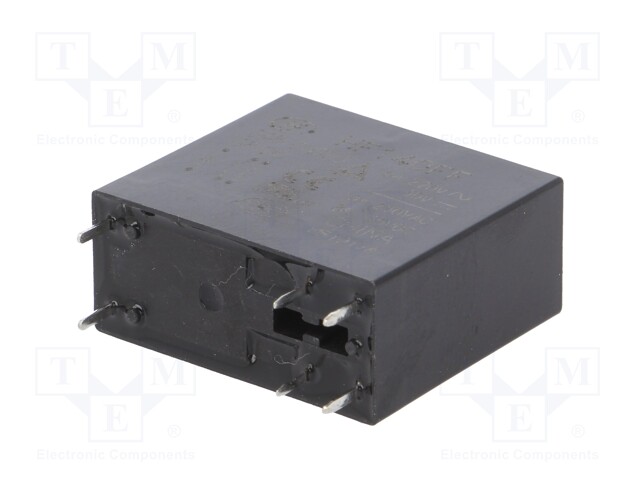

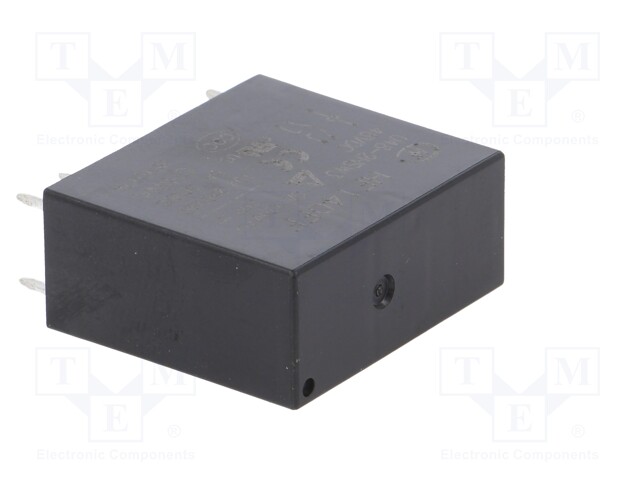

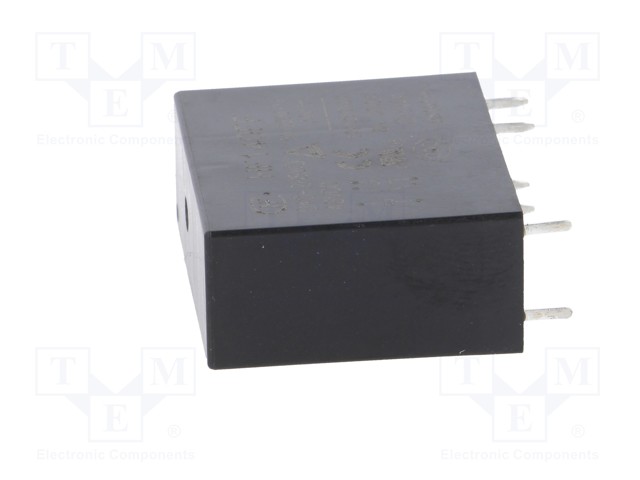

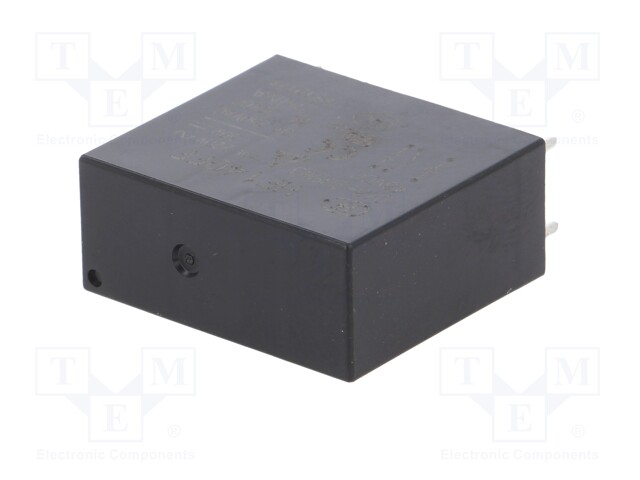

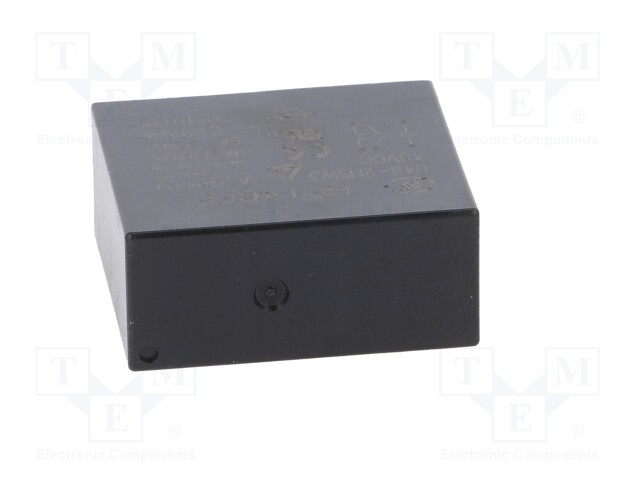

Relay: electromagnetic; DPST-NO; Ucoil: 48VDC; 10A/250VAC; 10A

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: HF140FF/048-2HSW3
    Tootja: HONGFA RELAY
    Tootja tootekood: HF140FF/048-2HSW3
    • Mounting
    • Operating temperature
    • Contact material
    • Terminal pitch
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Coil voltage max.
    • Type of relay
    • Coil voltage min.
    • Operate time
    • Release time

    3,90 € 3,90 € (KM-TA) 3.9 EUR

    3,90 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; DPST-NO; Ucoil: 48VDC; 10A/250VAC; 10A

    Mounting PCB
    Operating temperature -40...85°C
    Contact material AgNi
    Terminal pitch 5mm

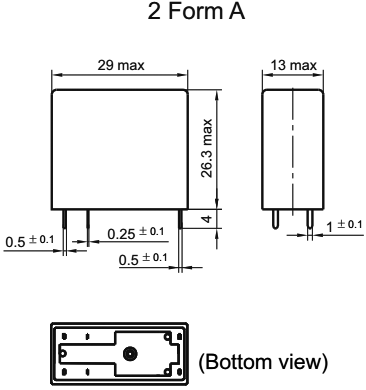

    Body dimensions 29x13x26.3mm
    Switched voltage ≤ 30V DC, ≤ 250V AC
    Coil resistance 2.88kΩ
    Rated coil voltage 48V DC

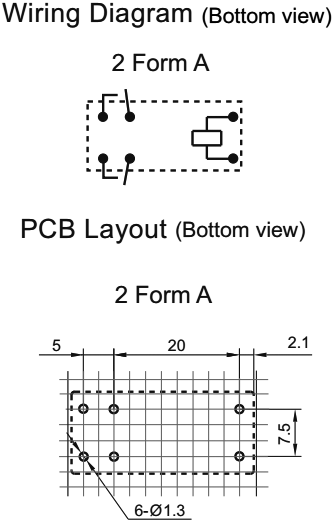

    Contacts configuration DPST-NO
    DC contacts rating @R 8A / 30V DC
    Contact resistance 50mΩ
    AC contacts rating @R 10A / 250V AC
    Contact current max. 10A
    Relay variant miniature
    Coil voltage max. 52.8V DC
    Type of relay electromagnetic
    Coil voltage min. 36V DC
    Operate time 15ms
    Release time 5ms
