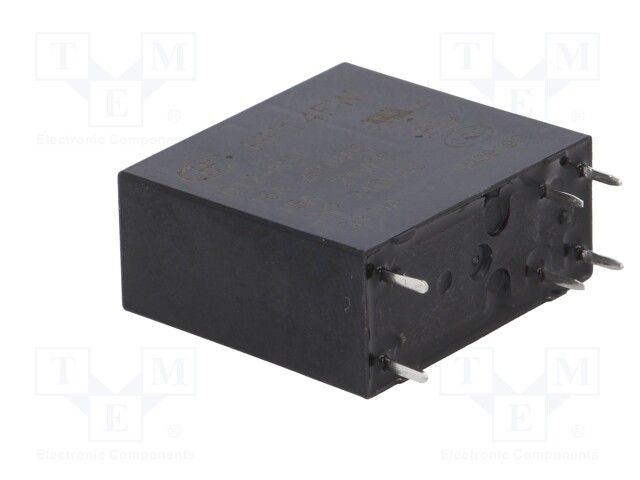

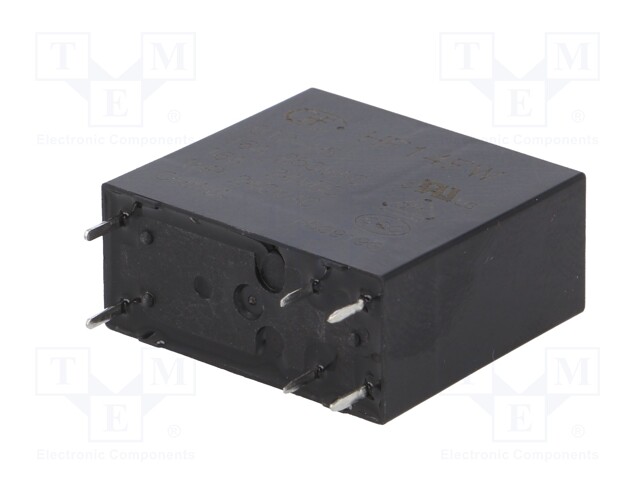

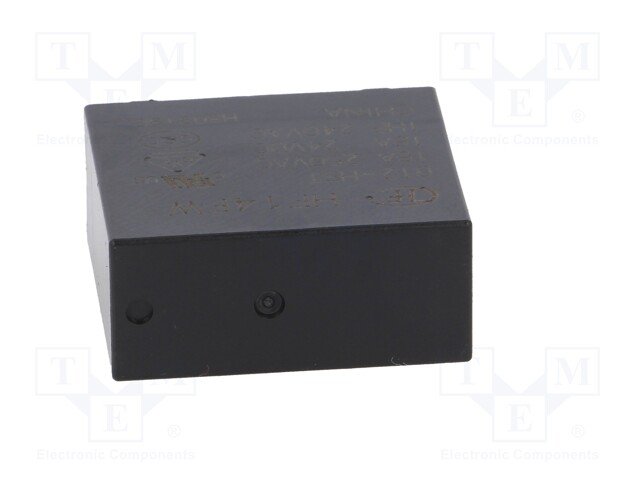

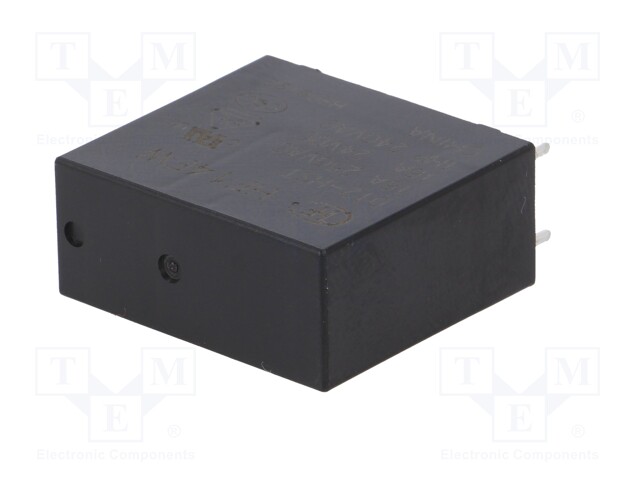

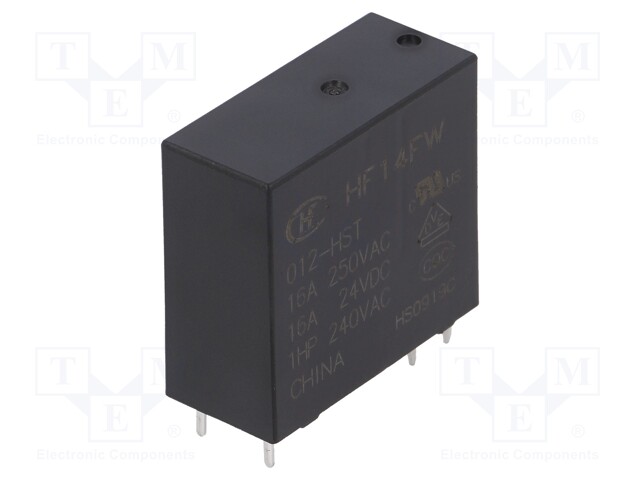

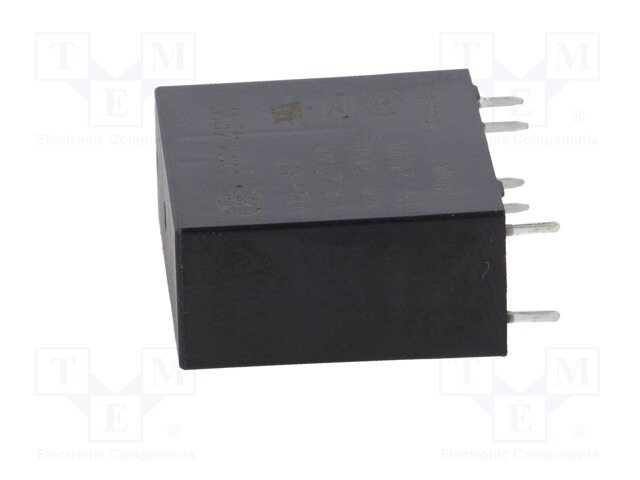

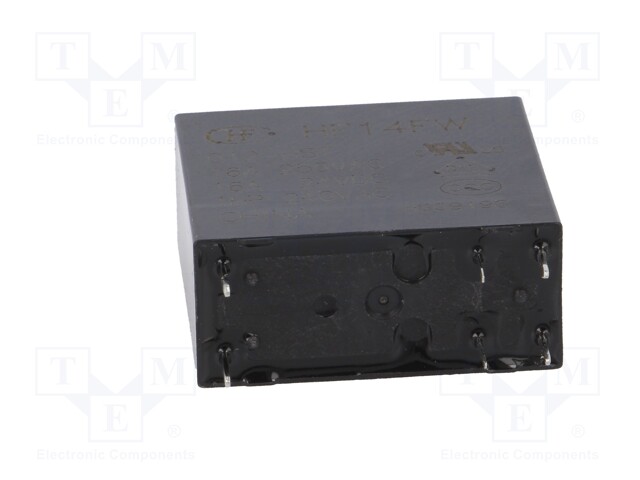

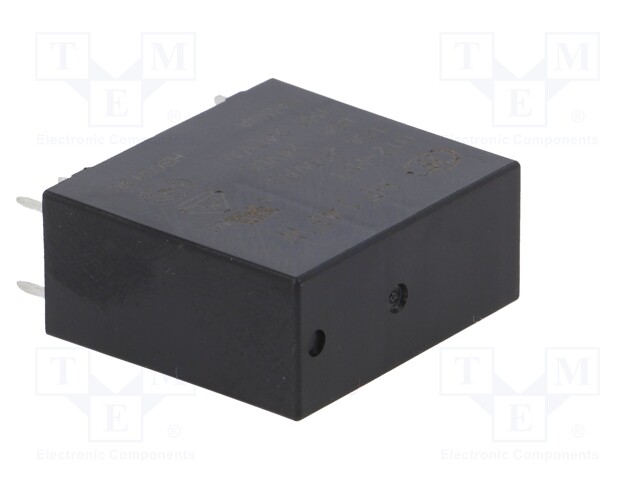

Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 16A/240VAC; 20A

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: HF14FW/012-HST
    Tootja: HONGFA RELAY
    Tootja tootekood: HF14FW/012-HST
    • Mounting
    • Operating temperature
    • Contact material
    • Terminal pitch
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Coil voltage max.
    • Type of relay
    • Coil voltage min.
    • Coil power consumption
    • Operate time
    • Release time

    4,41 € 4,41 € (KM-TA) 4.41 EUR

    4,41 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 16A/240VAC; 20A

    Mounting PCB
    Operating temperature -40...85°C
    Contact material AgSnO<sub>2</sub>

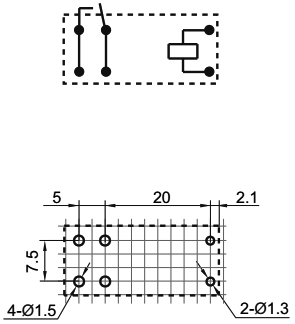

    Terminal pitch 5mm

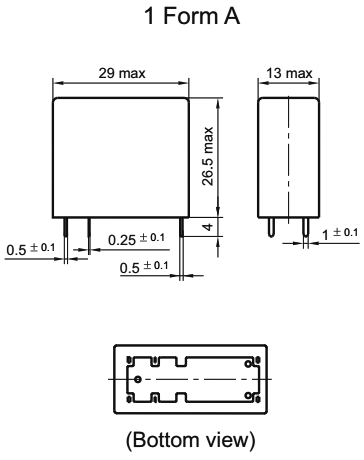

    Body dimensions 29x13x26.5mm
    Switched voltage ≤ 30V DC, ≤ 277V AC
    Coil resistance 275Ω
    Rated coil voltage 12V DC
    Contacts configuration SPST-NO
    DC contacts rating @R 16A / 24V DC
    Contact resistance 50mΩ
    AC contacts rating @R 16A / 240V AC
    Contact current max. 20A
    Relay variant miniature
    Coil voltage max. 16.8V DC
    Type of relay electromagnetic
    Coil voltage min. 8.6V DC
    Coil power consumption 530mW
    Operate time 15ms
    Release time 5ms
