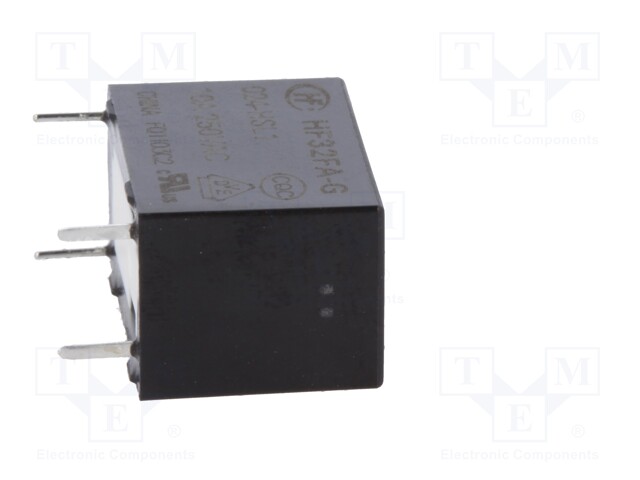

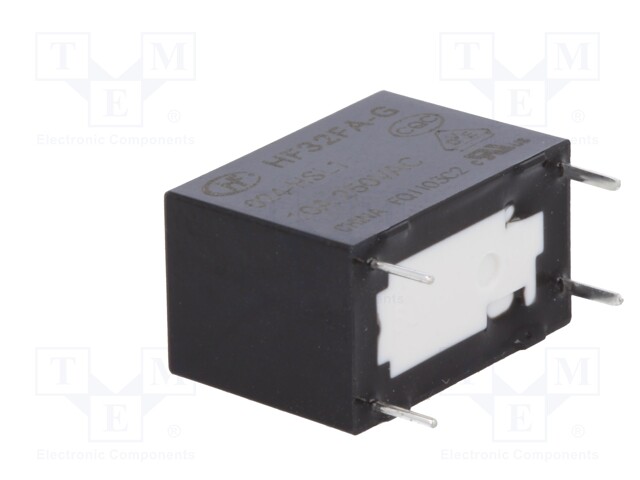

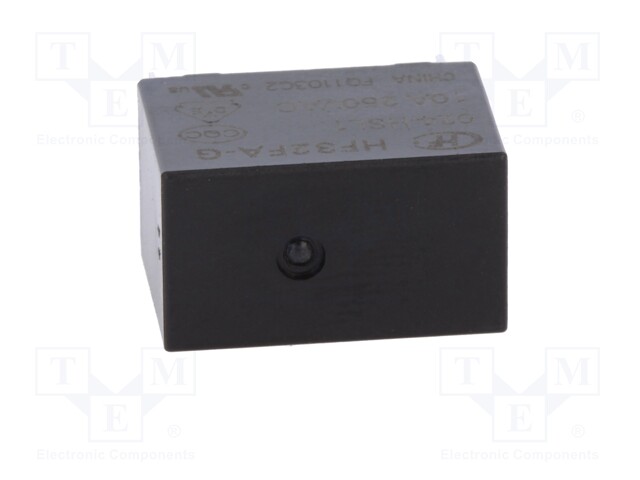

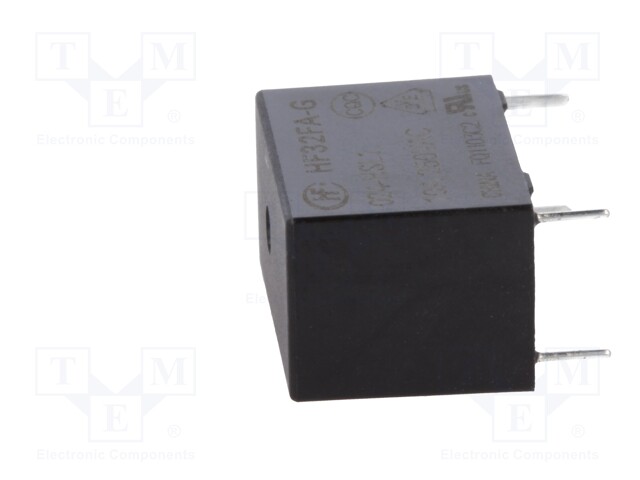

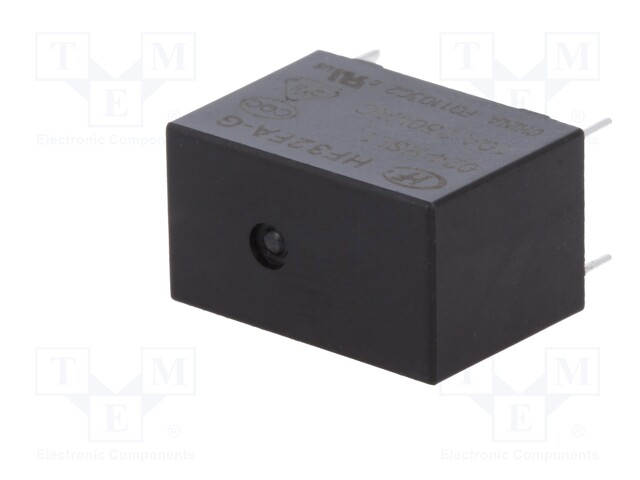

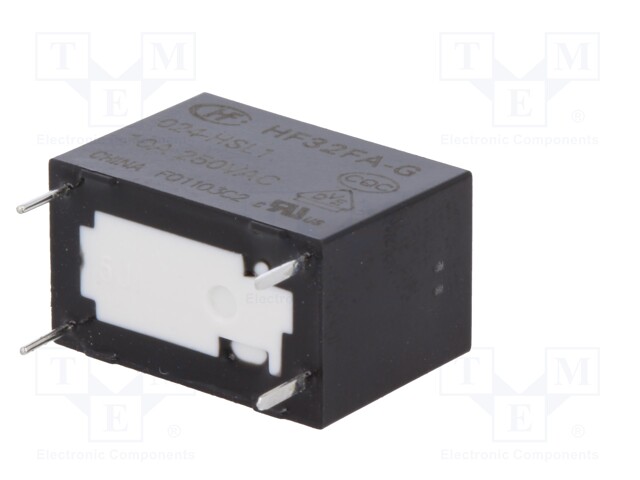

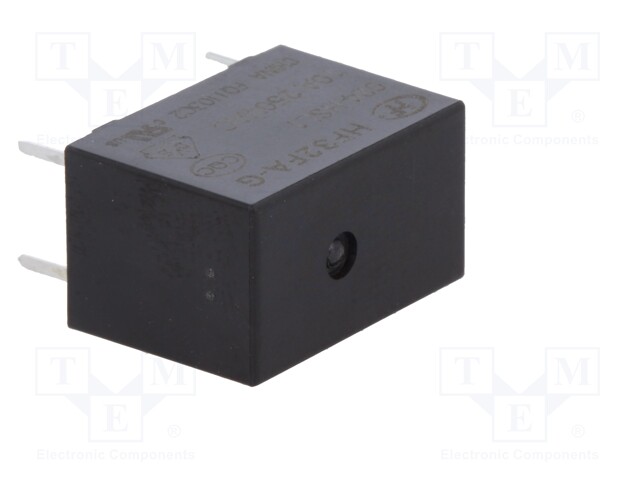

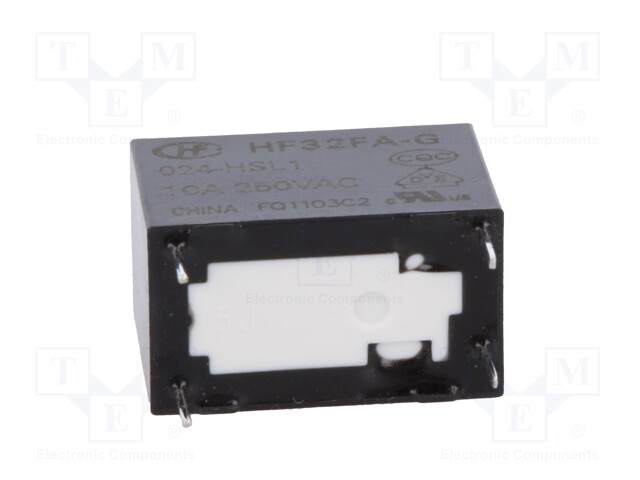

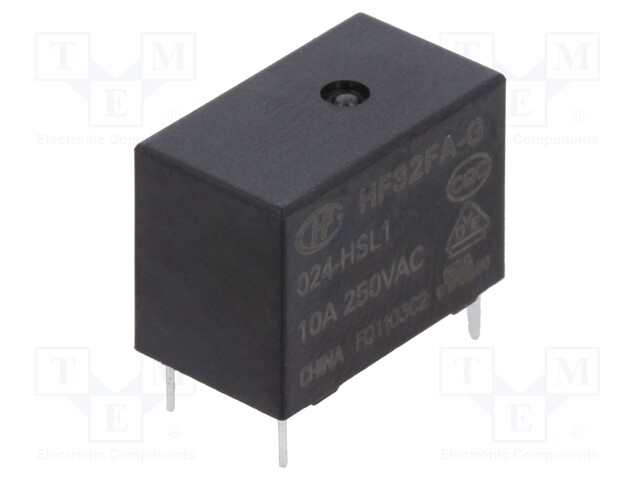

Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; 10A/250VAC; 10A

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: HF32FA-G/024-HSL1
    Tootja: HONGFA RELAY
    Tootja tootekood: HF32FA-G/024-HSL1
    • Mounting
    • Operating temperature
    • Contact material
    • Body dimensions
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Coil voltage max.
    • Type of relay
    • Coil voltage min.
    • Coil power consumption
    • Operate time
    • Release time

    2,15 € 2,15 € (KM-TA) 2.15 EUR

    2,15 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; 10A/250VAC; 10A

    Mounting PCB
    Operating temperature -40...85°C
    Contact material AgSnO<sub>2</sub>
    Body dimensions 17.6x10.1x12.3mm
    Switched voltage ≤ 250V AC
    Coil resistance 2.48kΩ
    Rated coil voltage 24V DC
    Contacts configuration SPST-NO
    Contact resistance 70mΩ
    AC contacts rating @R 10A / 250V AC
    Contact current max. 10A
    Relay variant subminiature
    Coil voltage max. 40.8V DC
    Type of relay electromagnetic
    Coil voltage min. 18V DC
    Coil power consumption 230mW
    Operate time 8ms
    Release time 4ms
