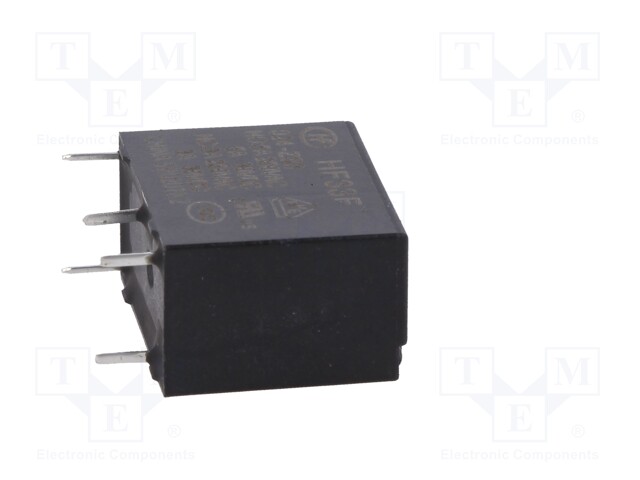

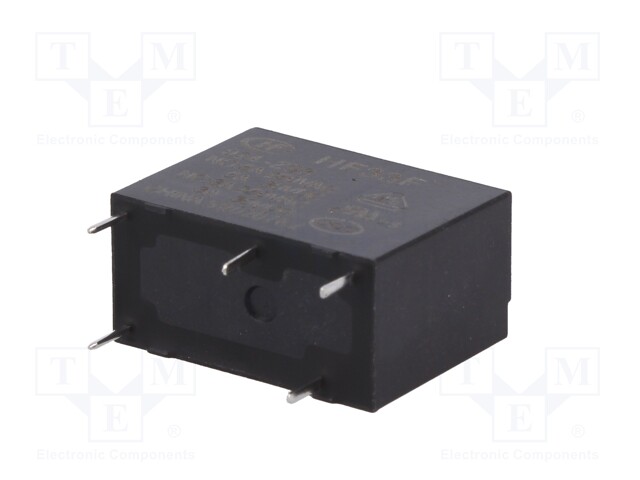

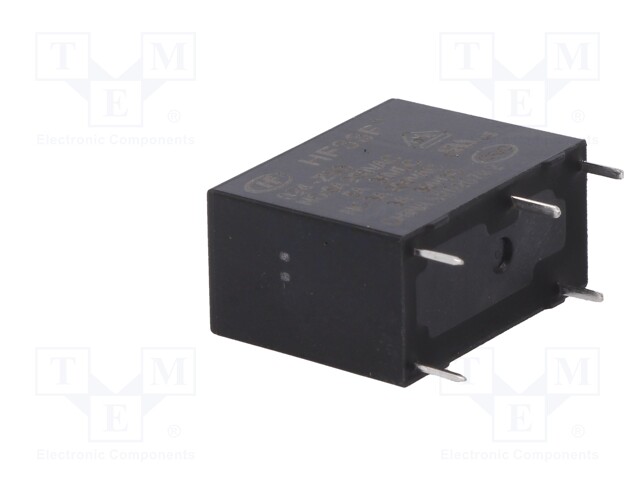

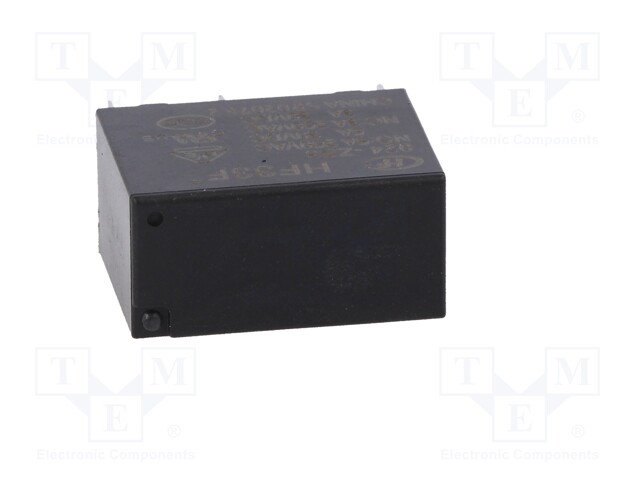

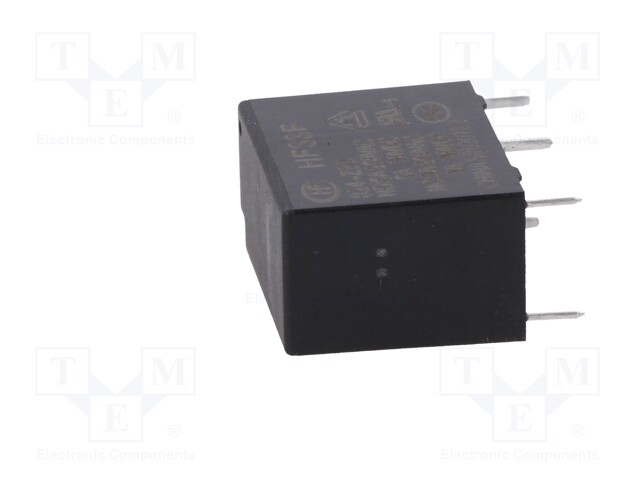

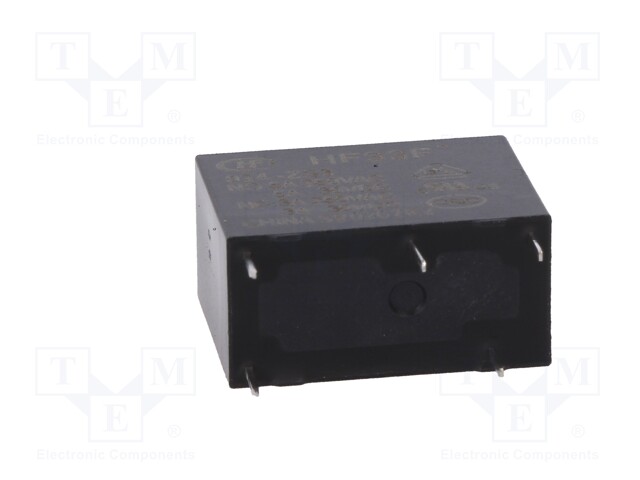

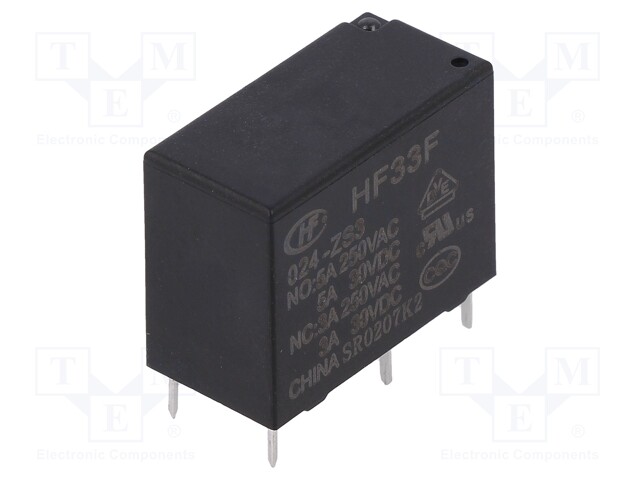

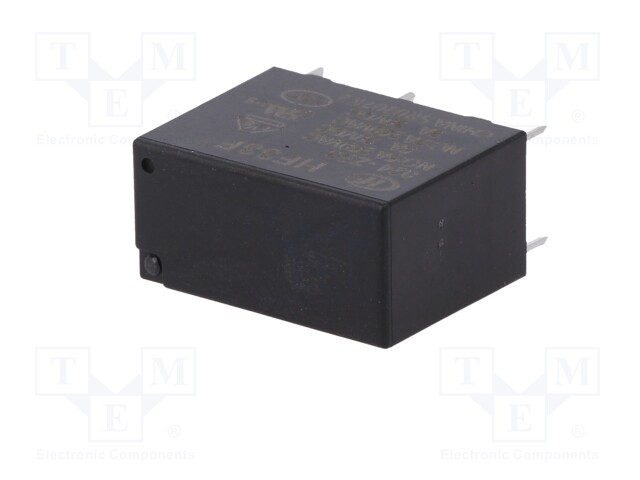

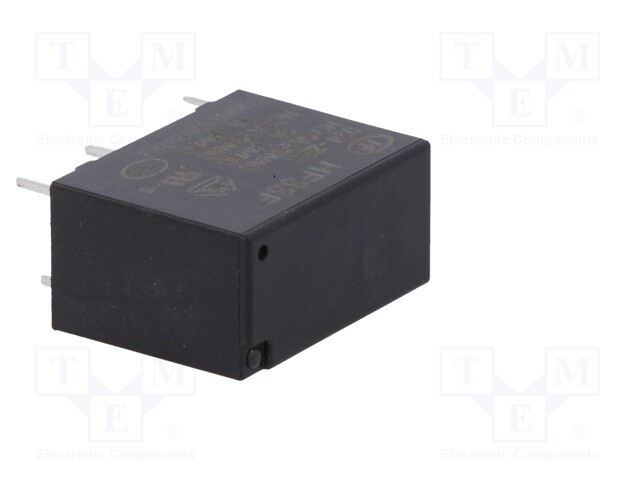

Relay: electromagnetic; SPDT; Ucoil: 24VDC; 5A/250VAC; 5A/30VDC

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: HF33F/024-ZS3
    Tootja: HONGFA RELAY
    Tootja tootekood: HF33F/024-ZS3
    • Mounting
    • Operating temperature
    • Contact material
    • Terminal pitch
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Coil voltage max.
    • Type of relay
    • Coil voltage min.
    • Coil power consumption
    • Operate time
    • Release time

    1,94 € 1,94 € (KM-TA) 1.94 EUR

    1,94 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; SPDT; Ucoil: 24VDC; 5A/250VAC; 5A/30VDC

    Mounting PCB
    Operating temperature -40...70°C
    Contact material AgNi

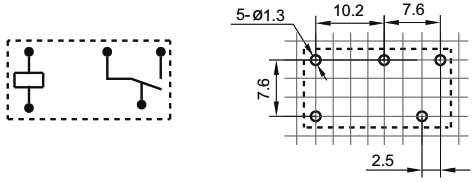

    Terminal pitch 7.6mm

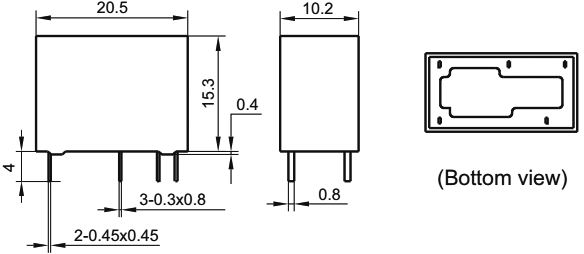

    Body dimensions 20.5x15.3x10.2mm
    Switched voltage ≤ 30V DC, ≤ 250V AC
    Coil resistance 1.28kΩ
    Rated coil voltage 24V DC
    Contacts configuration SPDT
    DC contacts rating @R 5A / 30V DC
    Contact resistance 100MΩ
    AC contacts rating @R 5A / 250V AC
    Contact current max. 10A
    Relay variant subminiature
    Coil voltage max. 31.2V DC
    Type of relay electromagnetic
    Coil voltage min. 18V DC
    Coil power consumption 450mW
    Operate time 8ms
    Release time 5ms
