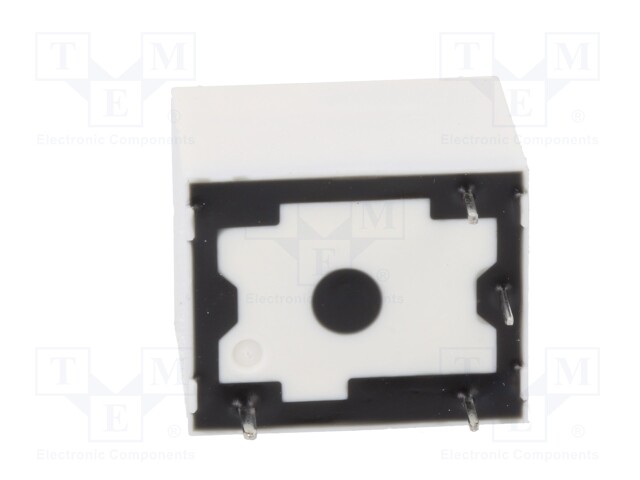

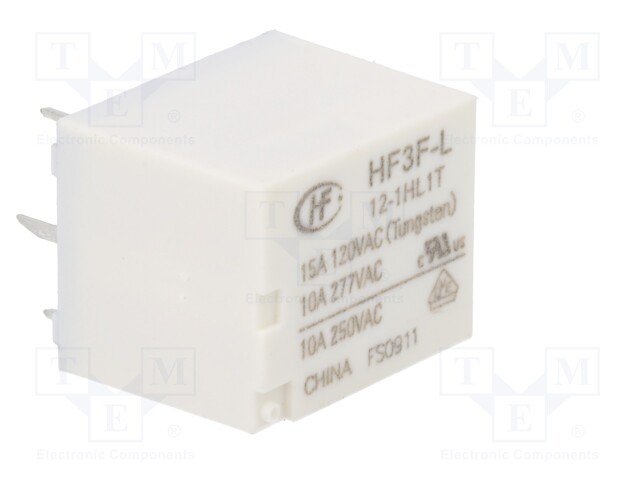

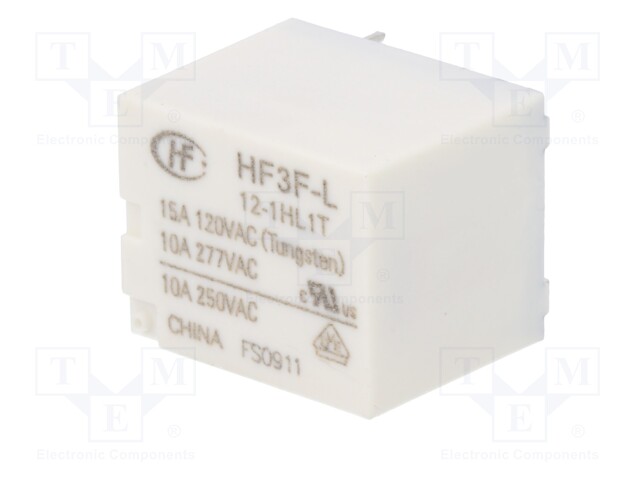

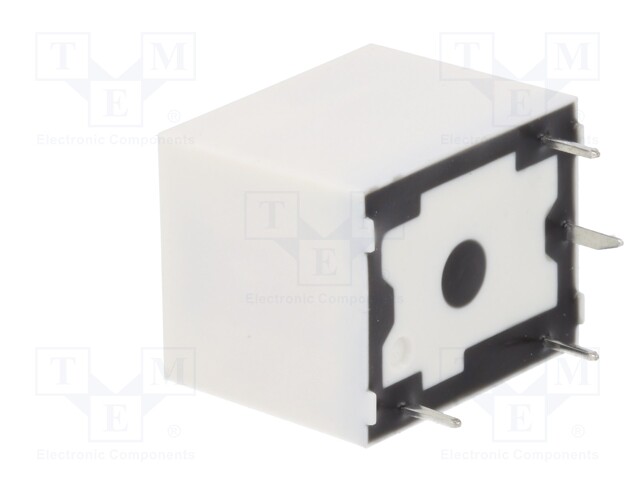

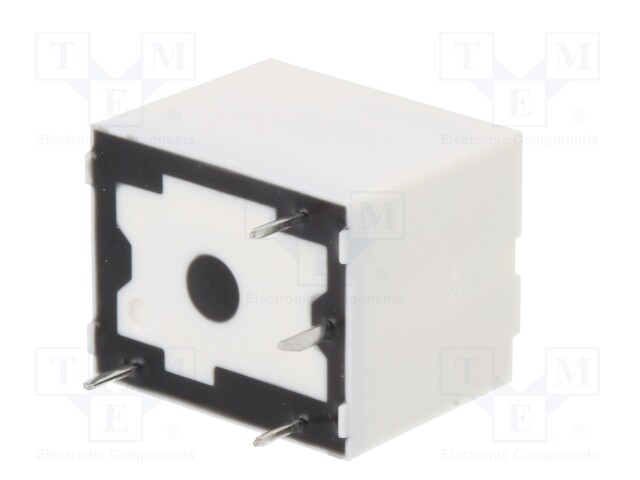

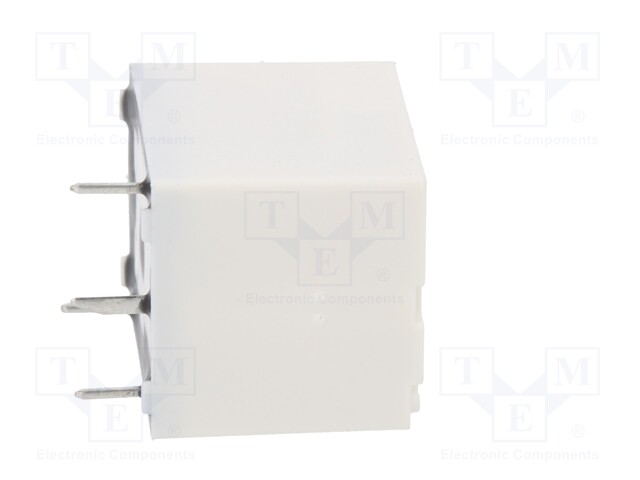

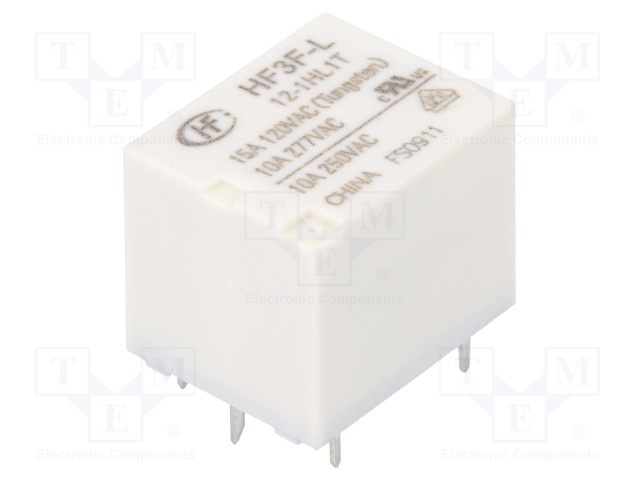

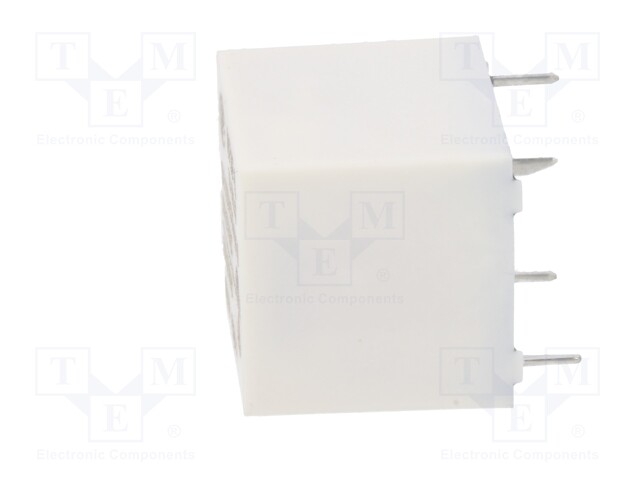

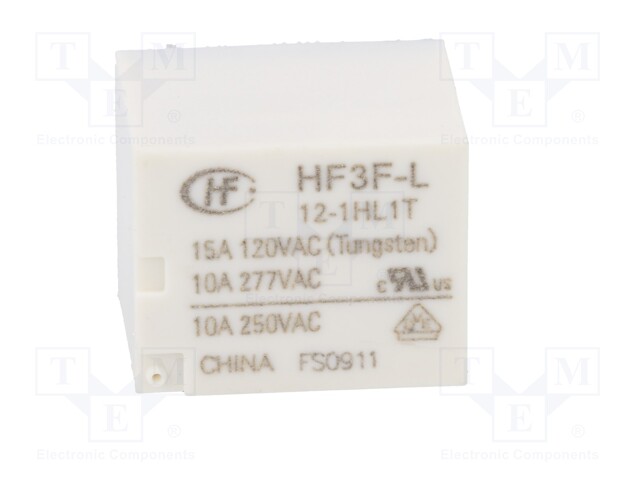

Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 10A/277VAC; 15A

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: HF3F-L/12-1HL1T
    Tootja: HONGFA RELAY
    Tootja tootekood: HF3F-L/12-1HL1T
    • Mounting
    • Operating temperature
    • Contact material
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Relay variant
    • Coil voltage max.
    • Type of relay
    • Coil voltage min.
    • Coil power consumption
    • Operate time
    • Release time

    4,25 € 4,25 € (KM-TA) 4.25 EUR

    4,25 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 10A/277VAC; 15A

    Mounting PCB
    Operating temperature -40...85°C
    Contact material AgSnO<sub>2</sub>
    Body dimensions 19x15.5x15.2mm
    Switched voltage ≤ 30V DC, ≤ 277V AC
    Coil resistance 360Ω
    Rated coil voltage 12V DC
    Contacts configuration SPST-NO
    DC contacts rating @R 10A / 30V DC
    Contact resistance 100MΩ
    AC contacts rating @R 10A / 277V AC
    Contact current max. 15A
    Relay variant bistable, subminiature
    Coil voltage max. 24V DC
    Type of relay electromagnetic
    Coil voltage min. 9.6V DC
    Coil power consumption 400mW
    Operate time 8ms
    Release time 5ms
