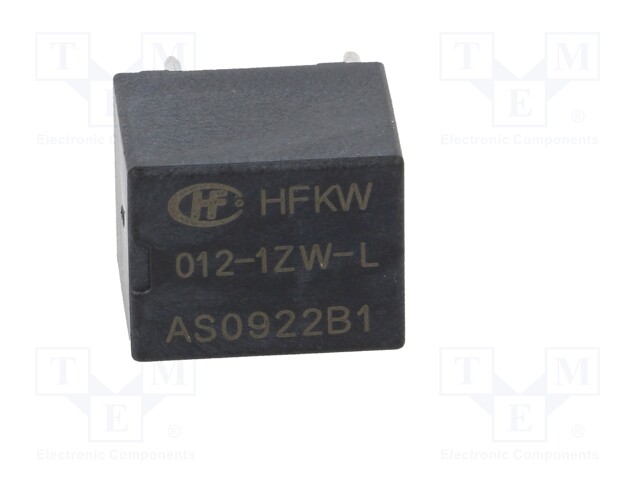

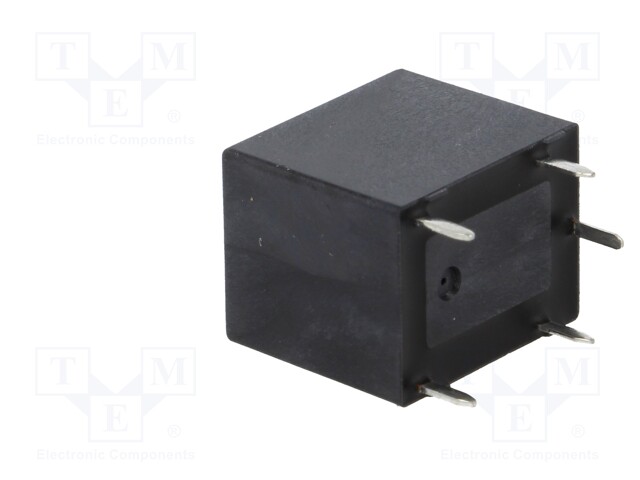

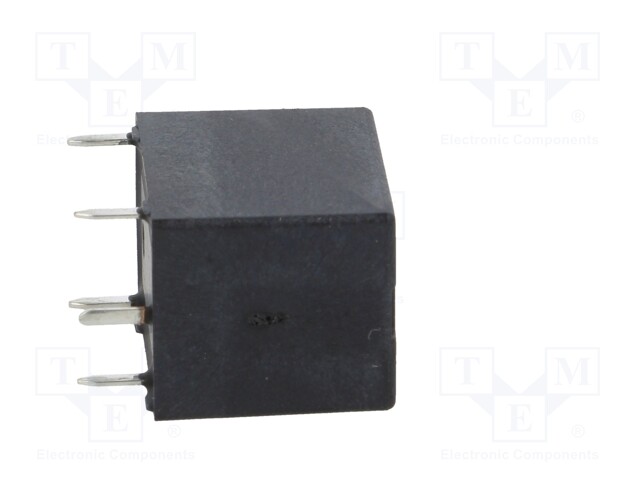

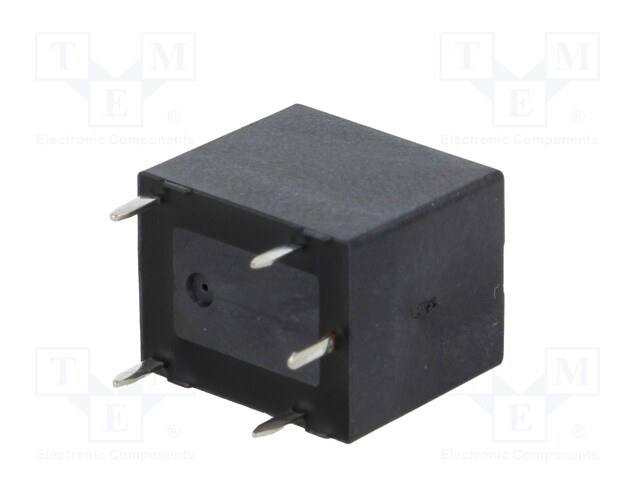

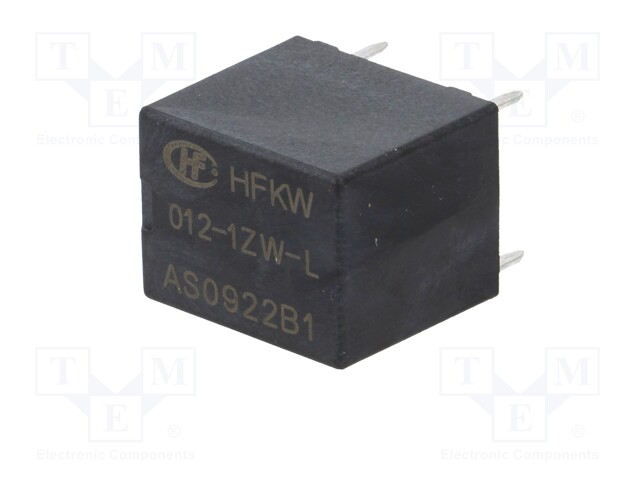

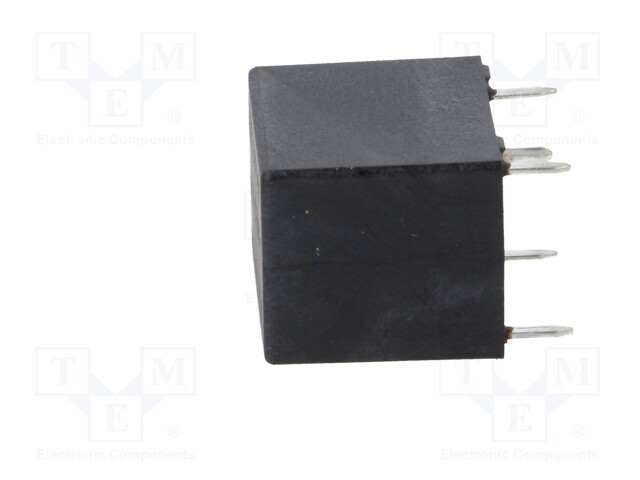

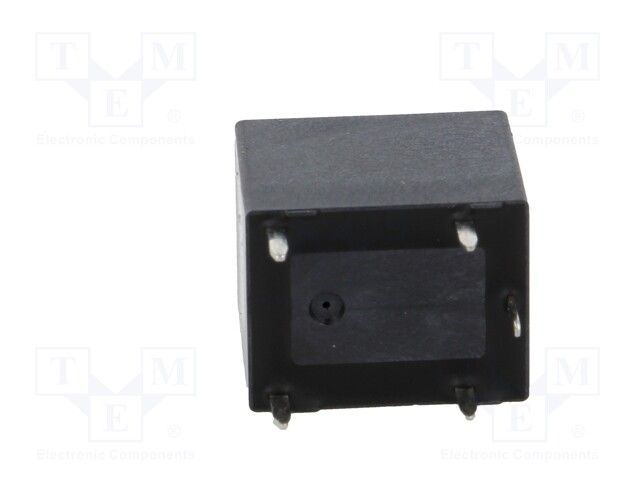

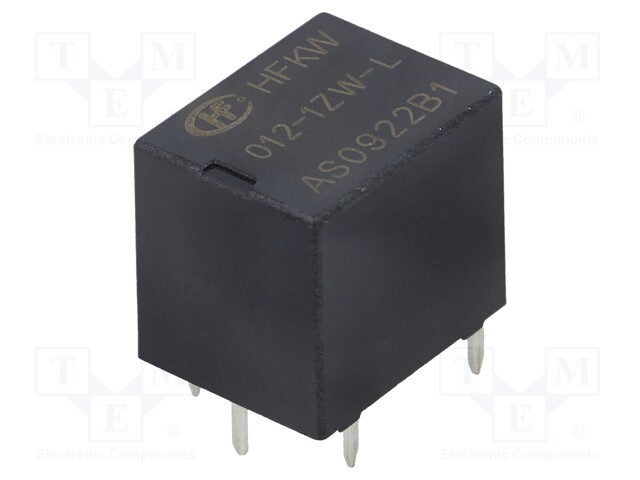

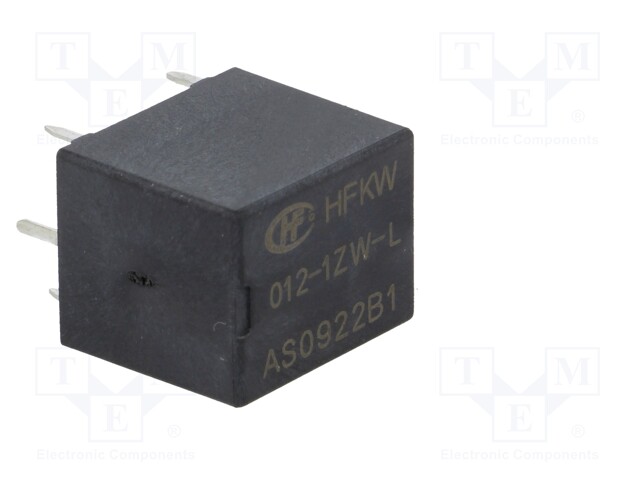

Relay: electromagnetic; SPDT; Ucoil: 12VDC; 35A; Ucoil min: 7.3VDC

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: HFKW/012-1ZW-L
    Tootja: HONGFA RELAY
    Tootja tootekood: HFKW/012-1ZW-L
    • Mounting
    • Operating temperature
    • Contact material
    • Body dimensions
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact current max.
    • Relay variant
    • Relay variant
    • Coil voltage max.
    • Type of relay
    • Coil voltage min.
    • Coil power consumption

    2,43 € 2,43 € (KM-TA) 2.43 EUR

    2,43 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; SPDT; Ucoil: 12VDC; 35A; Ucoil min: 7.3VDC

    Mounting PCB
    Operating temperature -40...85°C
    Contact material AgSnO<sub>2</sub>

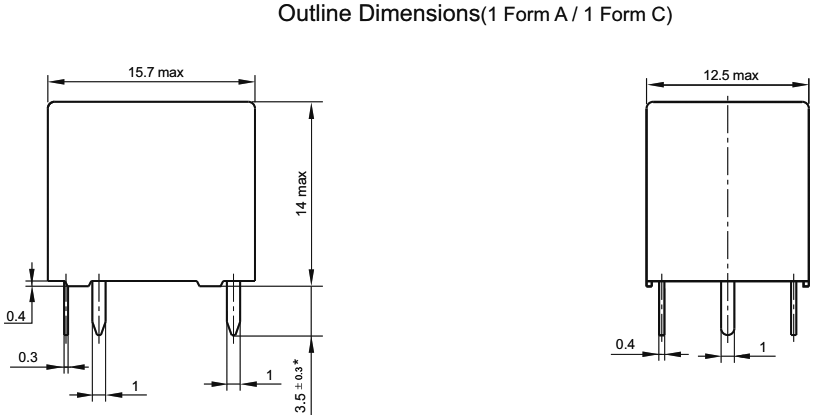

    Body dimensions 15.7x12.5x14mm
    Switched voltage ≤ 16V DC
    Coil resistance 240Ω
    Rated coil voltage 12V DC

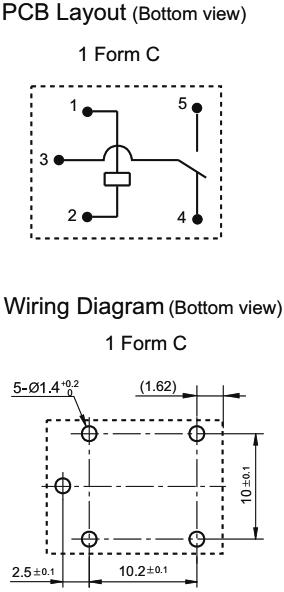

    Contacts configuration SPDT
    DC contacts rating @R 20A / 12V DC
    Contact current max. 35A
    Relay variant automotive, subminiature
    Coil voltage max. 16V DC
    Type of relay electromagnetic
    Coil voltage min. 7.3V DC
    Coil power consumption 0.6W
