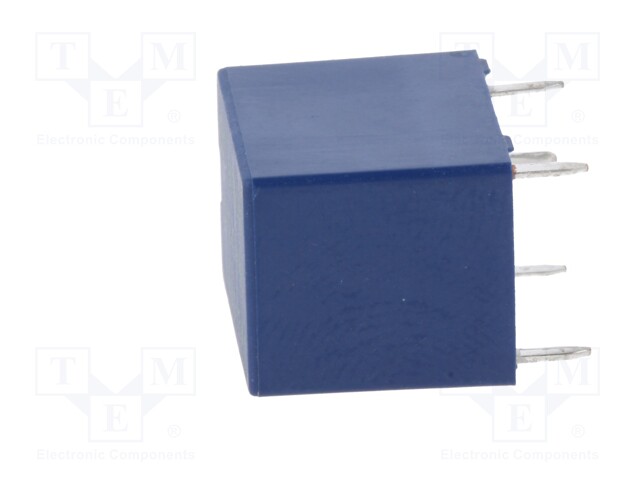

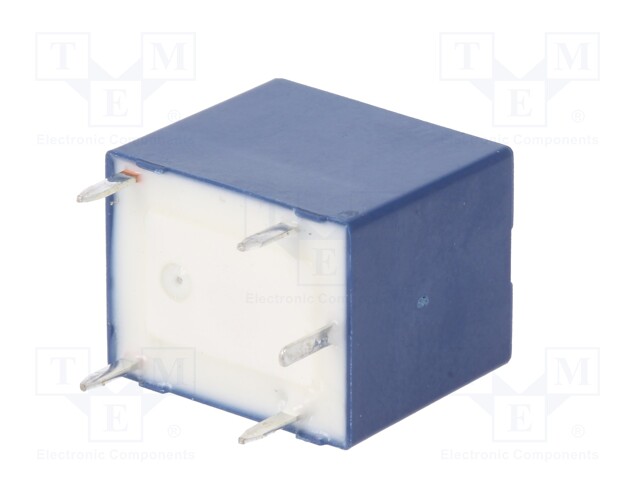

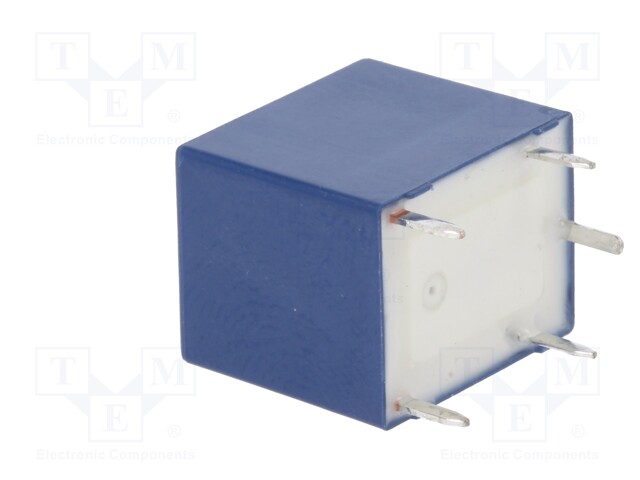

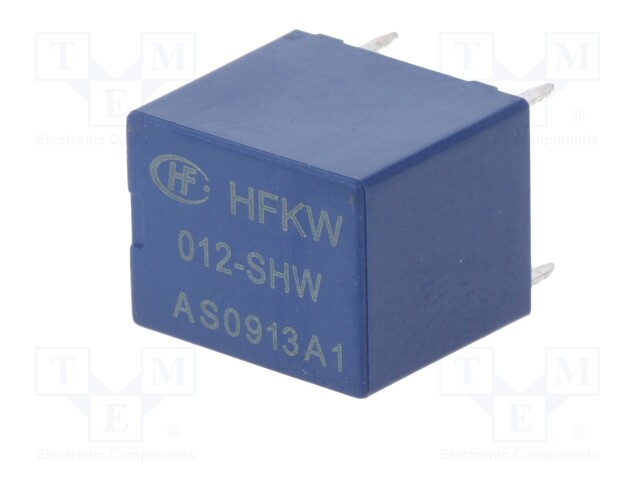

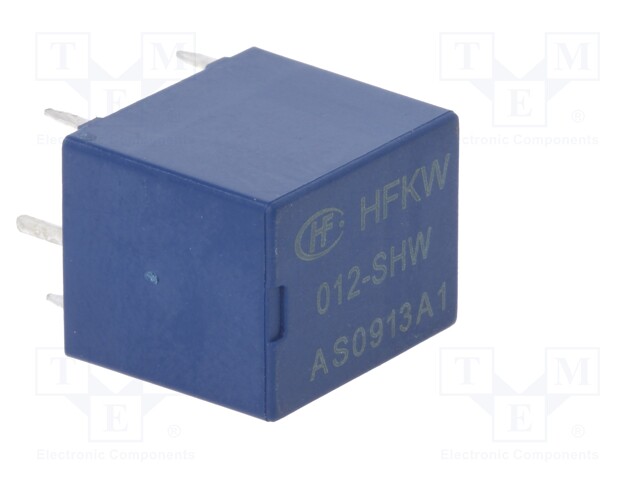

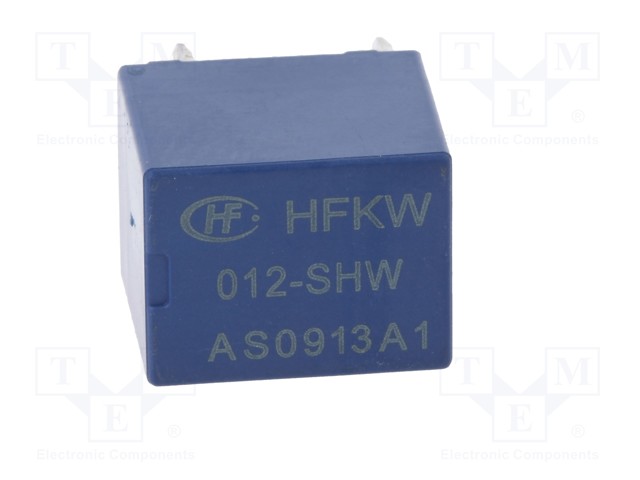

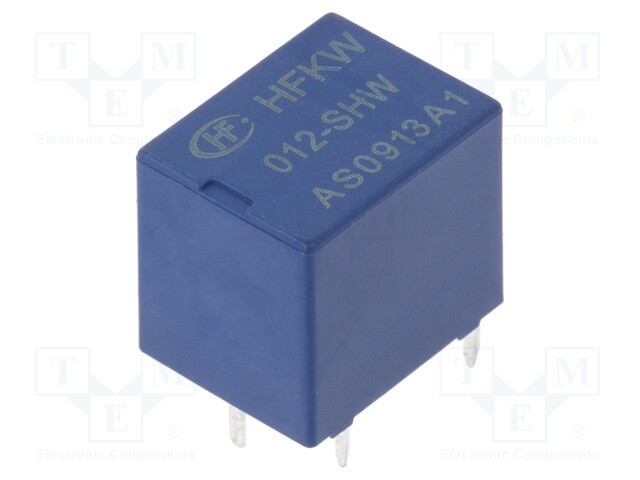

Relay: electromagnetic; 1 Form U; Ucoil: 12VDC; 10A; 144Ω; 1W

    Kordarv: 1500.0
    Minimum quantity: 1500.0
    Tootekood: HFKW/012-SHW
    Tootja: HONGFA RELAY
    Tootja tootekood: HFKW/012-SHW
    • Mounting
    • Operating temperature
    • Contact material
    • Body dimensions
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact current max.
    • Relay variant
    • Relay variant
    • Coil voltage max.
    • Type of relay
    • Coil voltage min.
    • Coil power consumption

    1,76 € 1,76 € (KM-TA) 1.76 EUR

    1,76 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; 1 Form U; Ucoil: 12VDC; 10A; 144Ω; 1W

    Mounting PCB
    Operating temperature -40...85°C
    Contact material AgSnO<sub>2</sub>

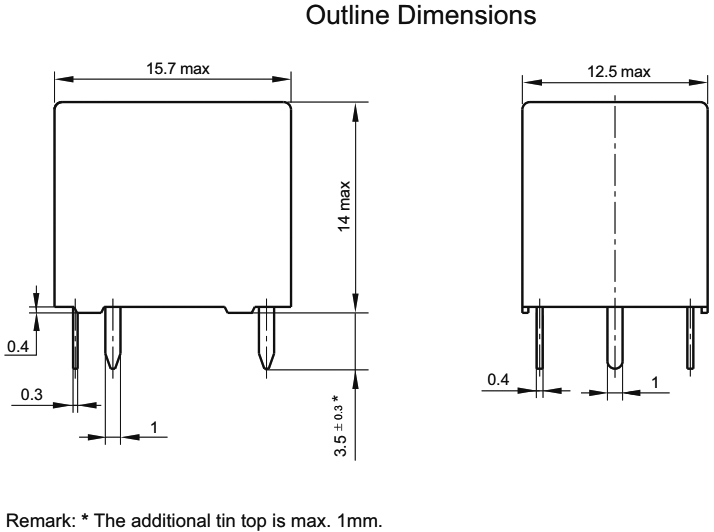

    Body dimensions 15.7x12.5x14mm
    Coil resistance 144Ω
    Rated coil voltage 12V DC
    Contacts configuration 1 Form U
    DC contacts rating @R 6A / 12V DC
    Contact current max. 10A
    Relay variant automotive, subminiature
    Coil voltage max. 14V DC
    Type of relay electromagnetic
    Coil voltage min. 6.9V DC
    Coil power consumption 1W
