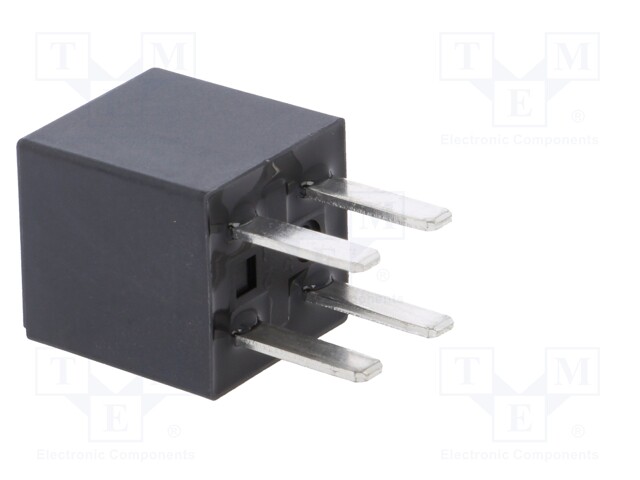

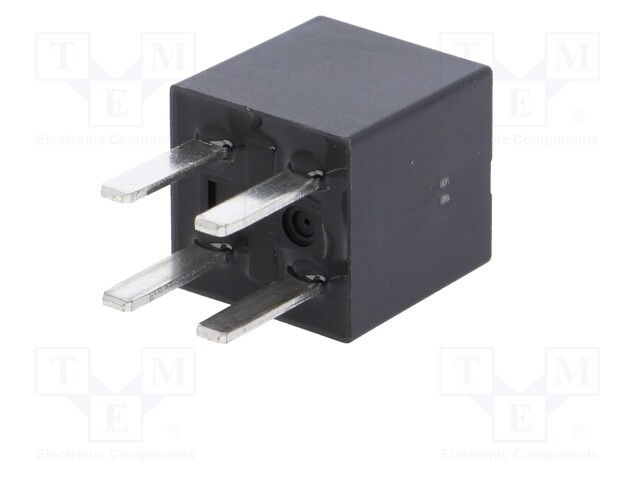

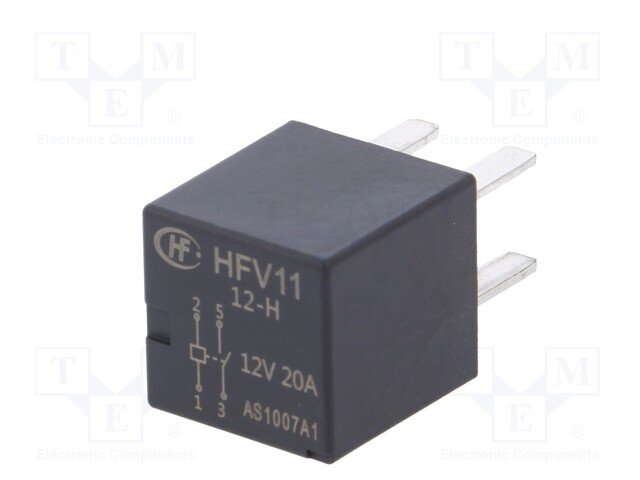

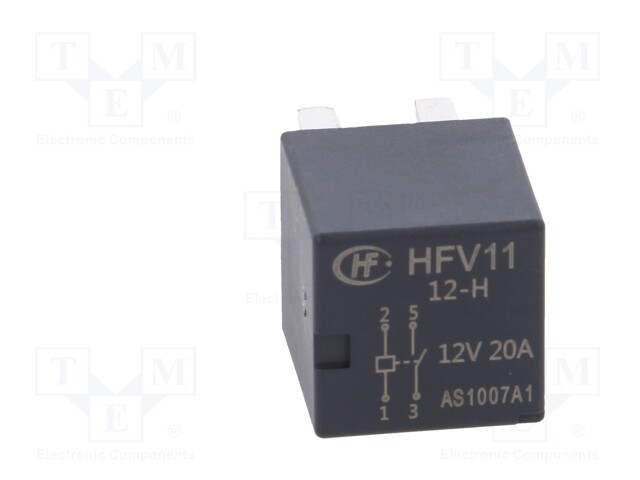

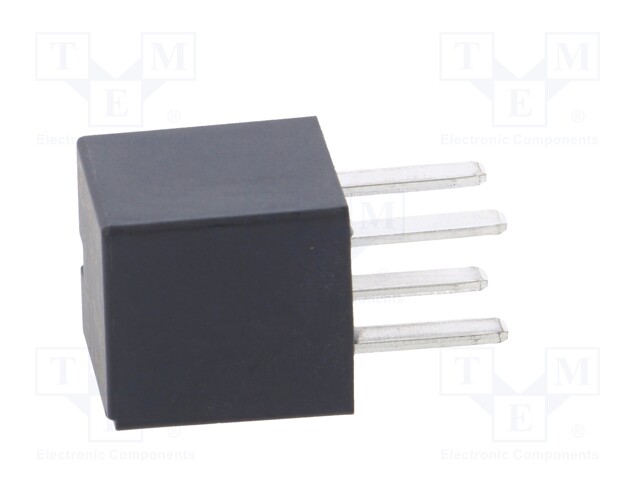

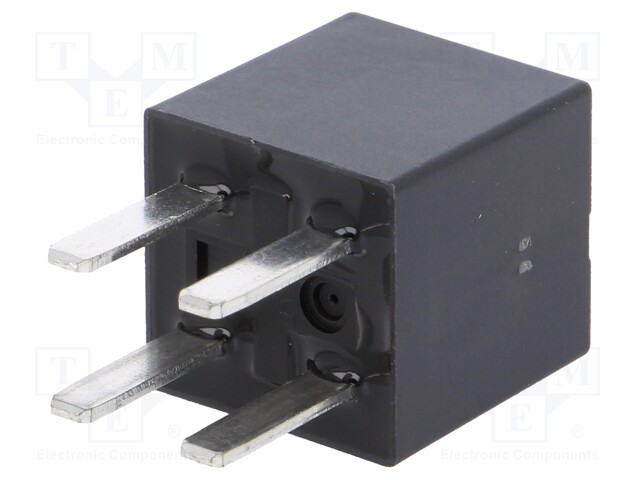

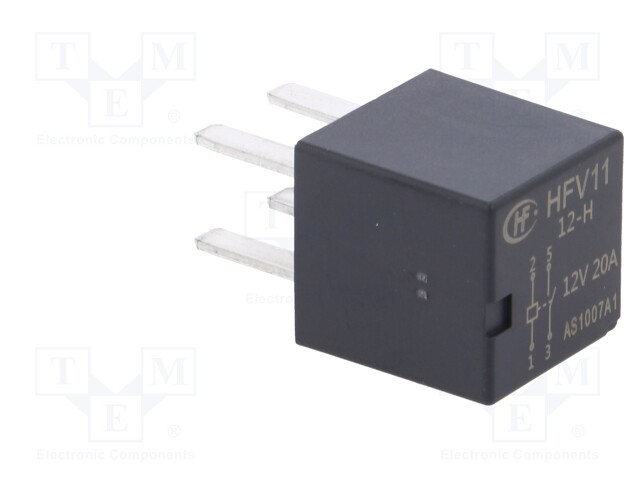

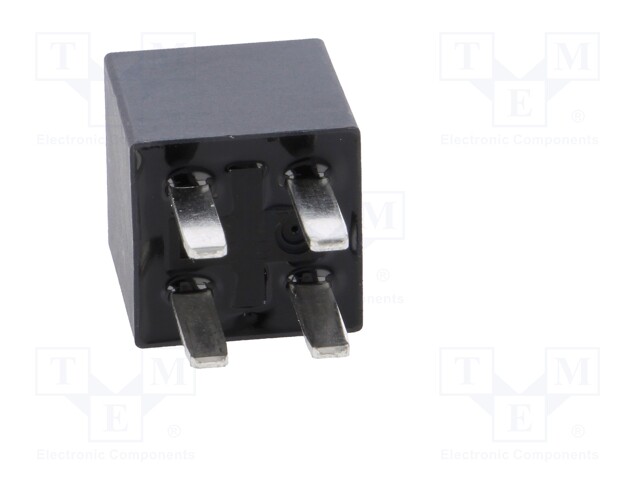

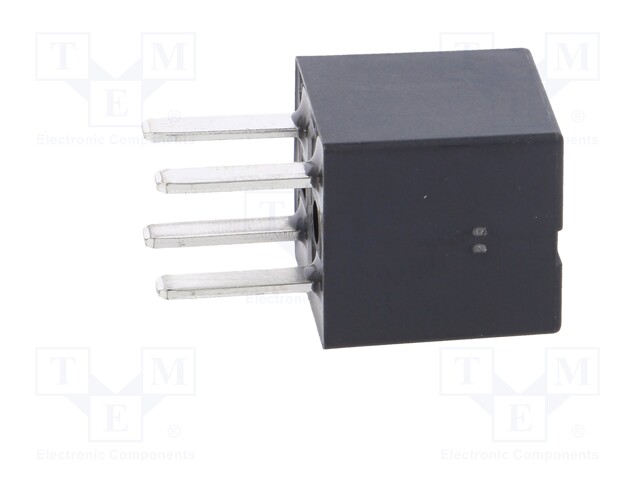

Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 40A; automotive

    Kordarv: 960.0
    Minimum quantity: 960.0
    Tootekood: HFV11/12-H
    Tootja: HONGFA RELAY
    Tootja tootekood: HFV11/12-H
    • Mounting
    • Operating temperature
    • Contact material
    • Body dimensions
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil voltage min.
    • Coil power consumption

    1,66 € 1,66 € (KM-TA) 1.6600000000000001 EUR

    1,66 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 40A; automotive

    Mounting socket
    Operating temperature -40...125°C
    Contact material AgSnO<sub>2</sub>

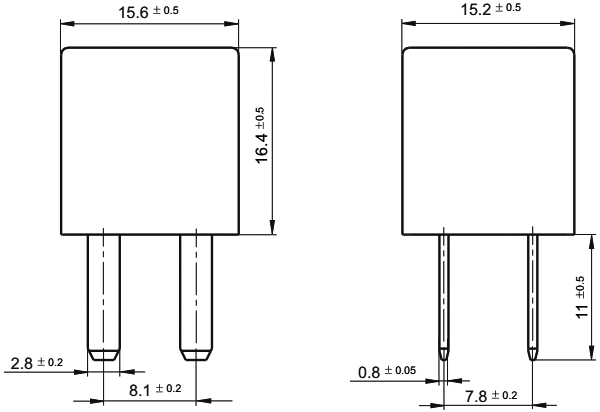

    Body dimensions 15.6x15.2x16.4mm
    Coil resistance 155Ω
    Rated coil voltage 12V DC

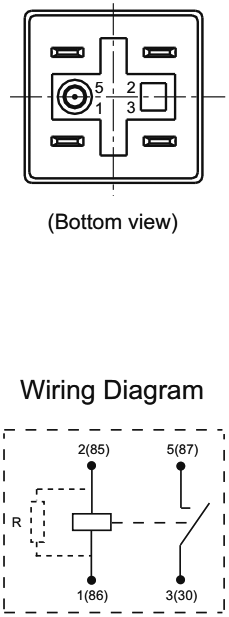

    Contacts configuration SPST-NO
    DC contacts rating @R 20A / 12V DC
    Contact current max. 40A
    Relay variant automotive
    Type of relay electromagnetic
    Coil voltage min. 7.2V DC
    Coil power consumption 950mW
