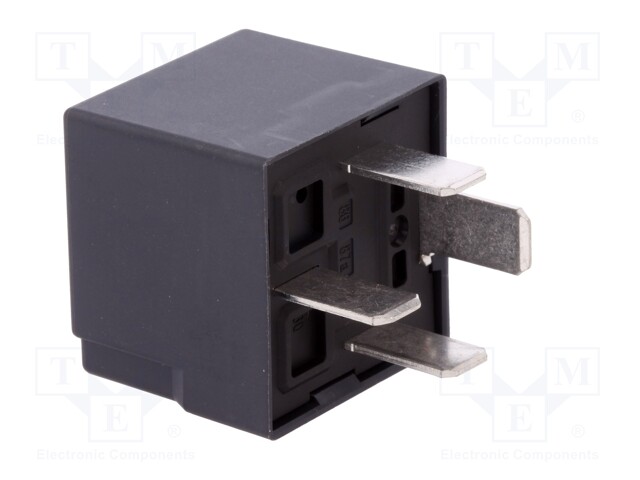

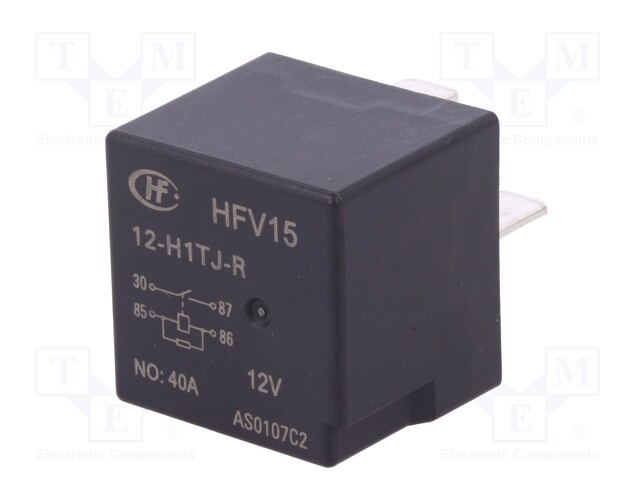

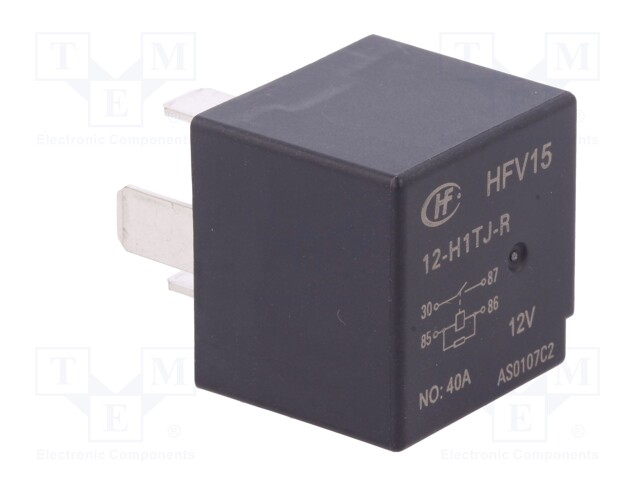

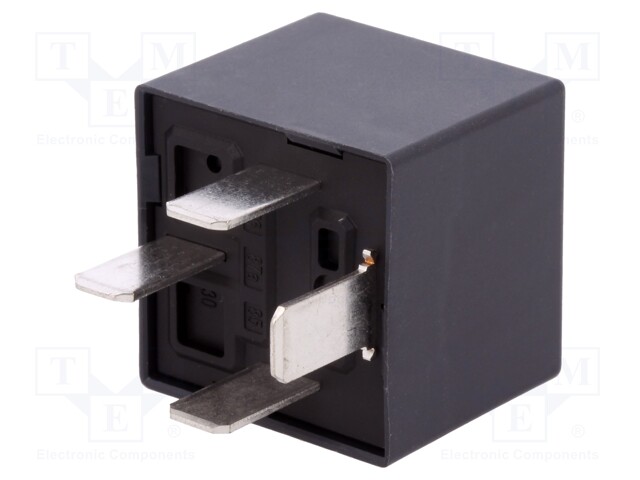

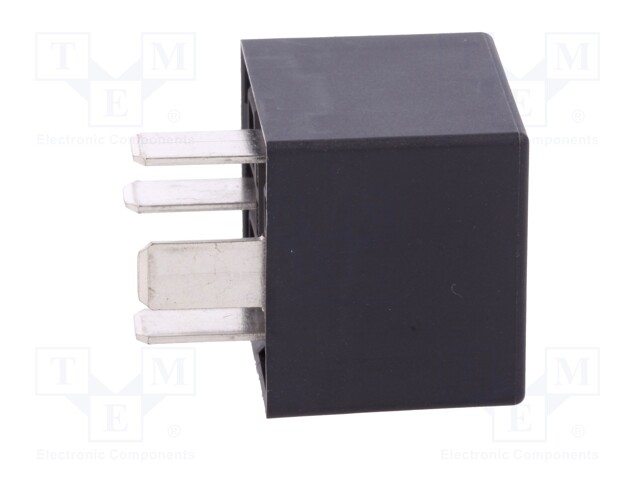

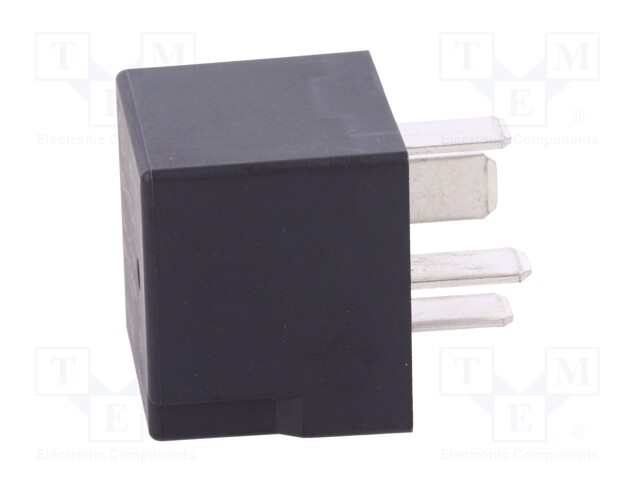

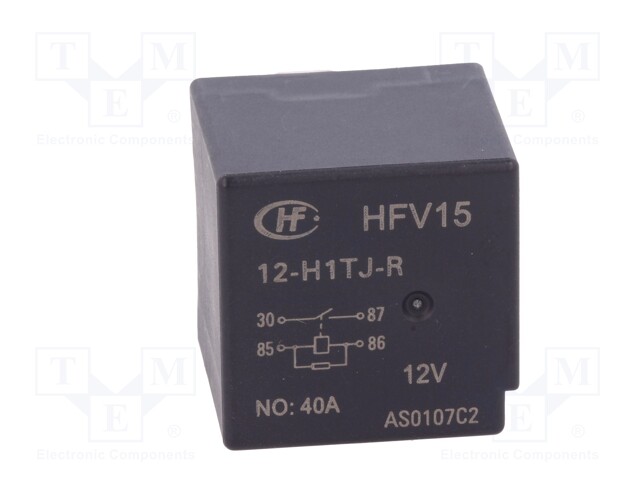

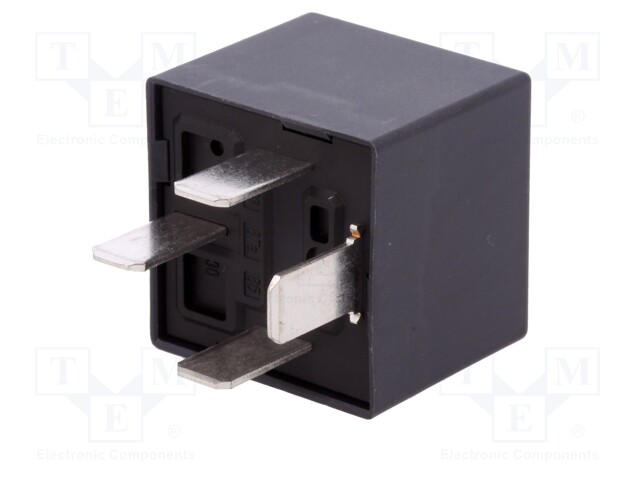

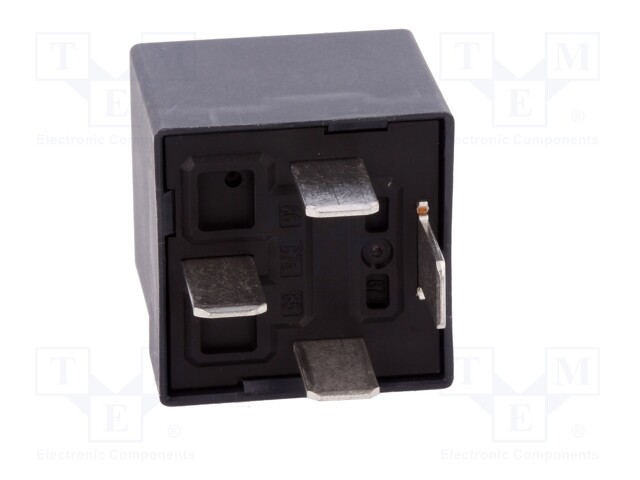

Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 40A; automotive

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: HFV15/12-H1TJ-R
    Tootja: HONGFA RELAY
    Tootja tootekood: HFV15/12-H1TJ-R
    • Mounting
    • Operating temperature
    • Contact material
    • Body dimensions
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact current max.
    • Relay variant
    • Coil voltage max.
    • Type of relay
    • Coil voltage min.
    • Coil power consumption
    • Optional equipment

    3,45 € 3,45 € (KM-TA) 3.45 EUR

    3,45 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 40A; automotive

    Mounting socket
    Operating temperature -40...125°C
    Contact material AgSnO<sub>2</sub>

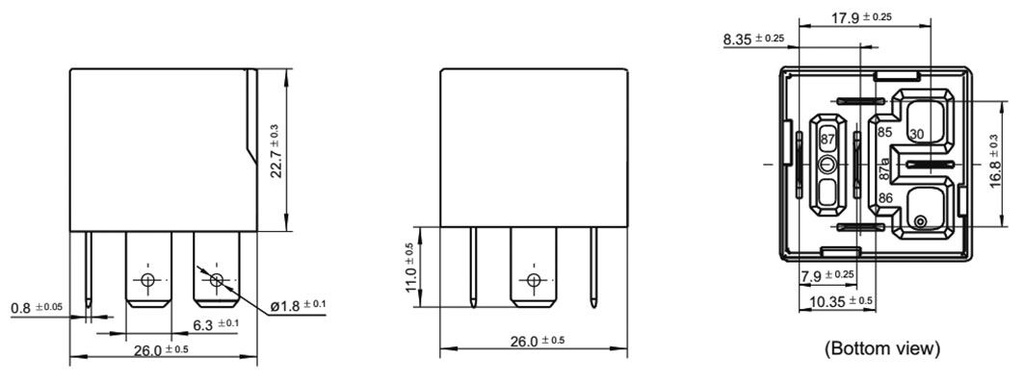

    Body dimensions 26x26x22.7mm
    Coil resistance 79.5Ω
    Rated coil voltage 12V DC

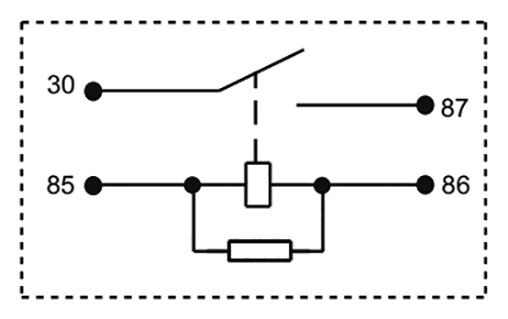

    Contacts configuration SPST-NO
    DC contacts rating @R 40A / 12V DC
    Contact current max. 40A
    Relay variant automotive
    Coil voltage max. 15.7V DC
    Type of relay electromagnetic
    Coil voltage min. 7.2V DC
    Coil power consumption 1.8W
    Optional equipment overvoltage suppression resistor
