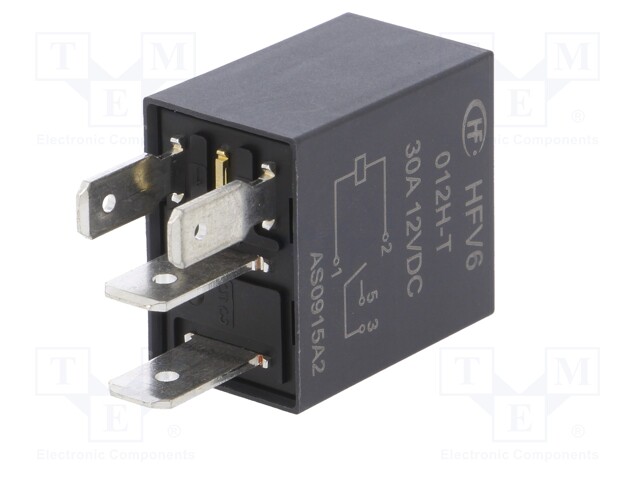

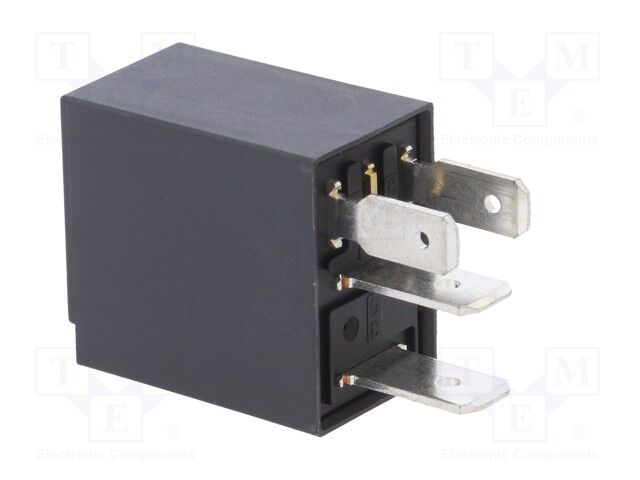

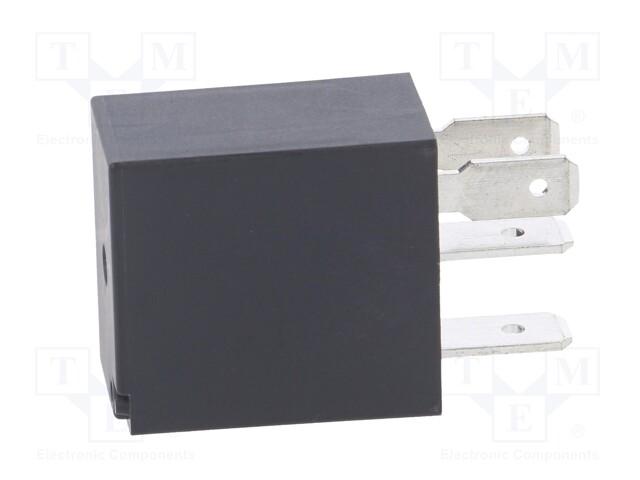

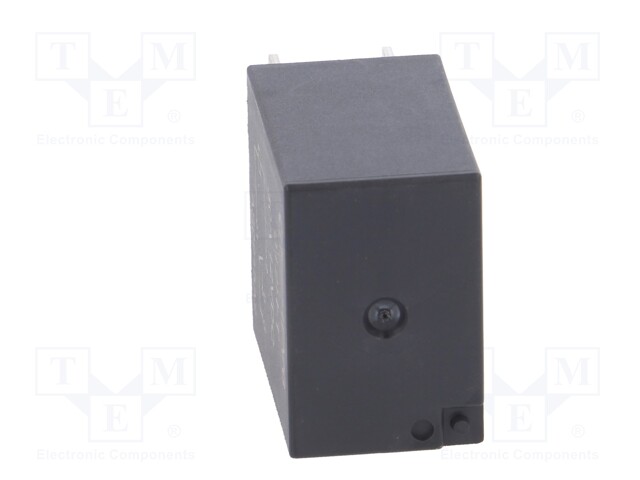

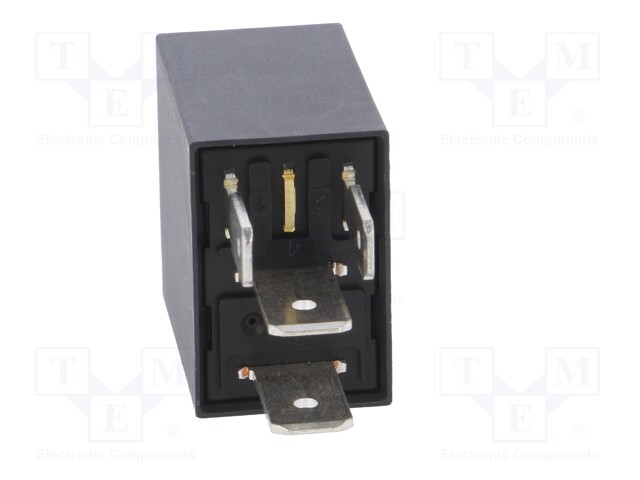

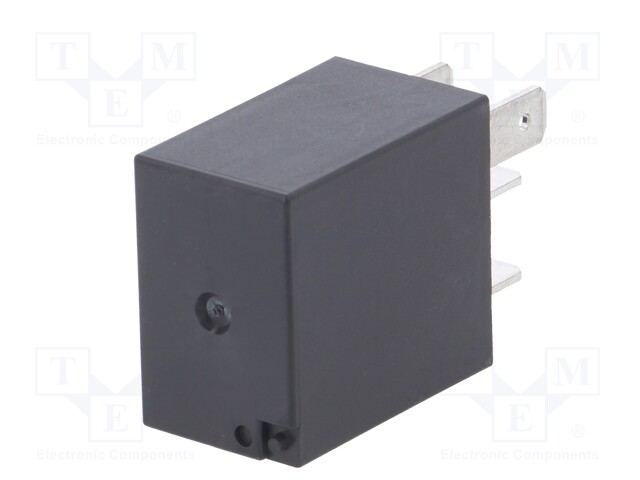

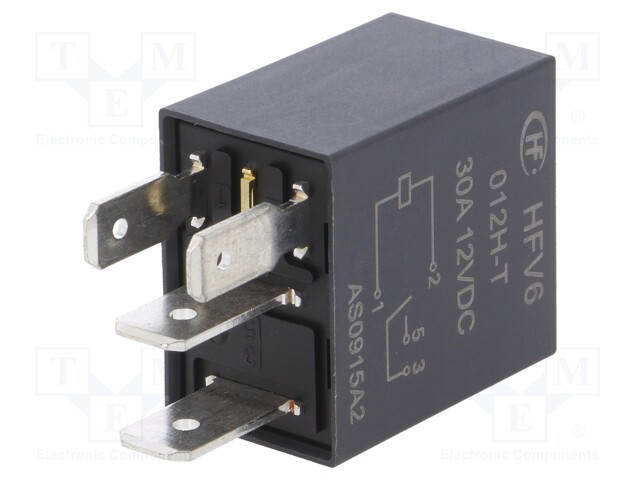

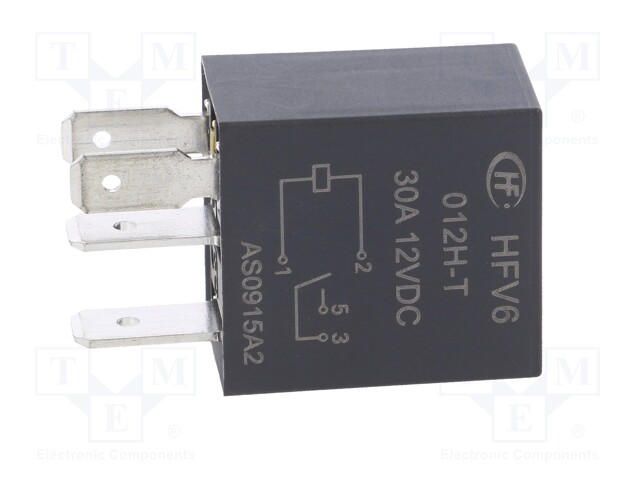

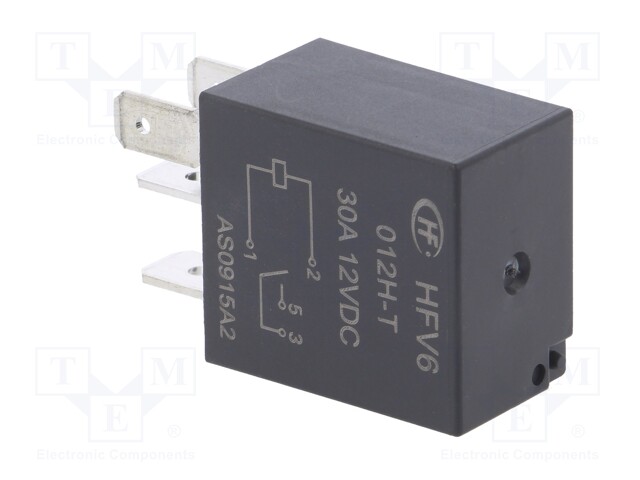

Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 30A; automotive

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: HFV6/012H-T
    Tootja: HONGFA RELAY
    Tootja tootekood: HFV6/012H-T
    • Mounting
    • Operating temperature
    • Contact material
    • Body dimensions
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact current max.
    • Relay variant
    • Coil voltage max.
    • Type of relay
    • Coil voltage min.
    • Coil power consumption

    7,20 € 7,20 € (KM-TA) 7.2 EUR

    7,20 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 30A; automotive

    Mounting socket
    Operating temperature -40...125°C
    Contact material AgSnO<sub>2</sub>

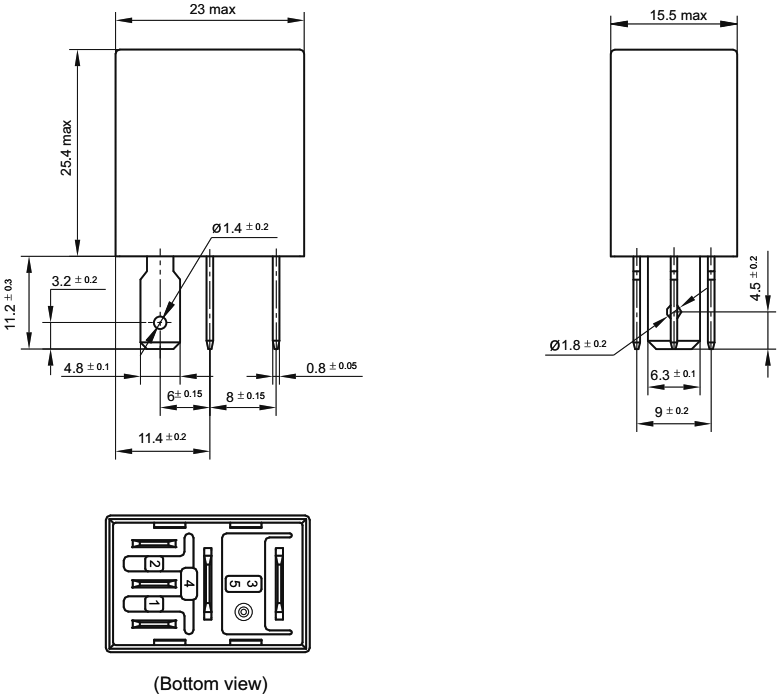

    Body dimensions 23x15.5x25.4mm
    Switched voltage ≤ 27V DC
    Coil resistance 90Ω
    Rated coil voltage 12V DC
    Contacts configuration SPST-NO
    DC contacts rating @R 30A / 12V DC
    Contact current max. 30A
    Relay variant automotive
    Coil voltage max. 15V DC
    Type of relay electromagnetic
    Coil voltage min. 7.2V DC
    Coil power consumption 1.6W
