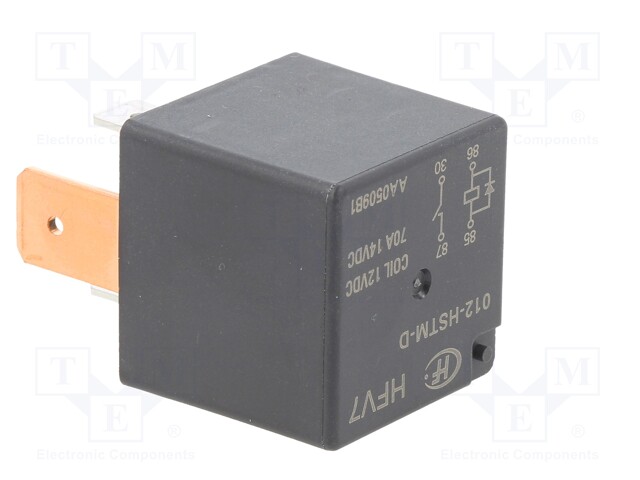

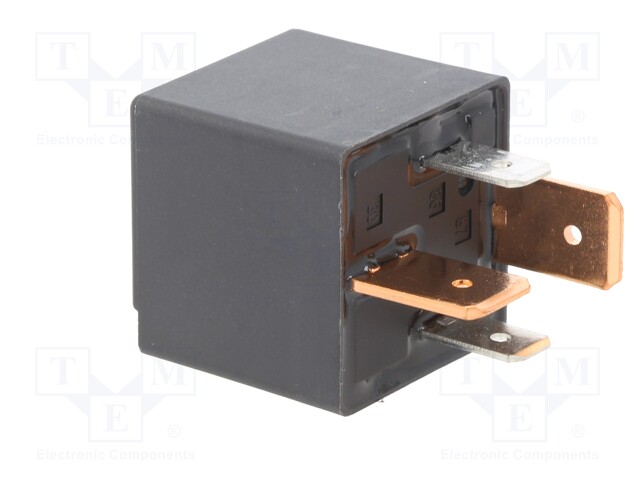

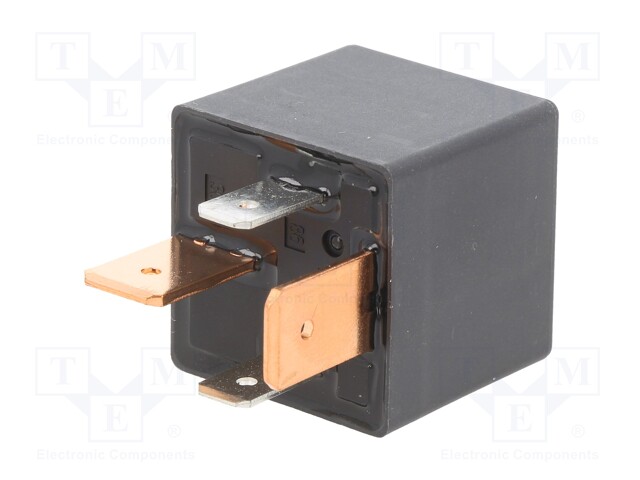

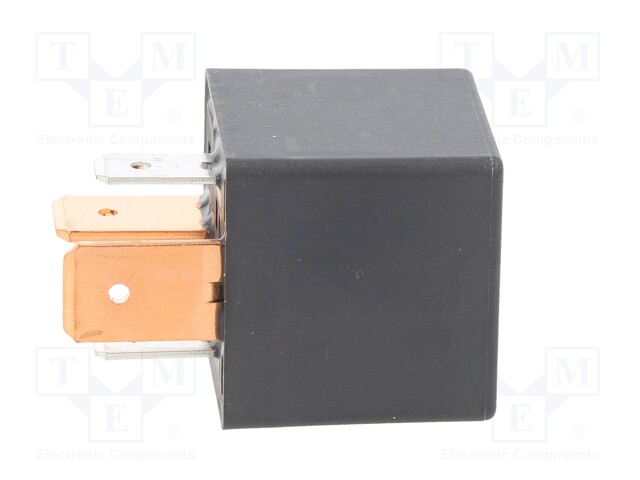

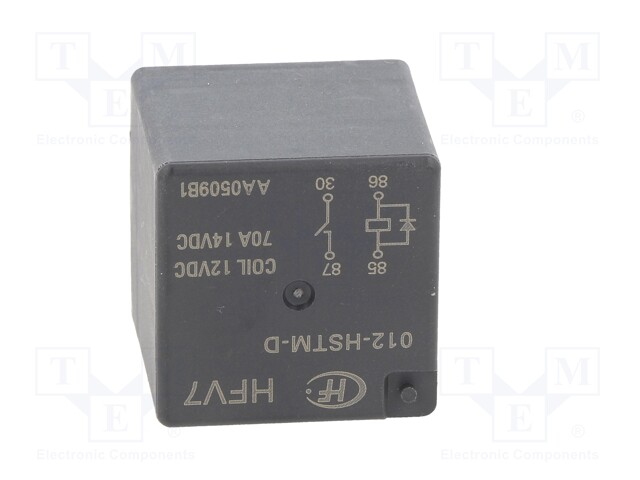

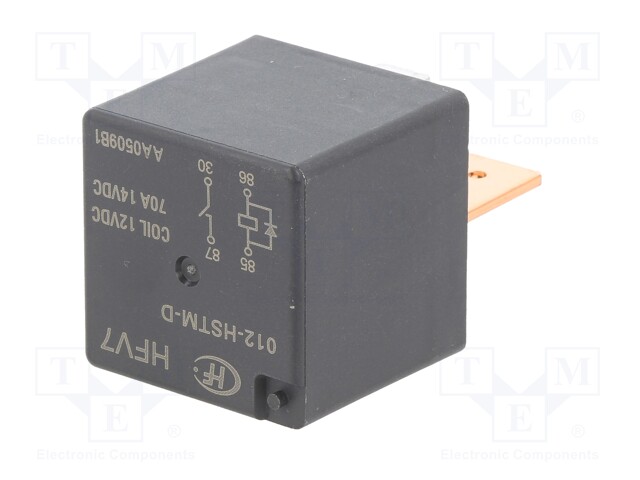

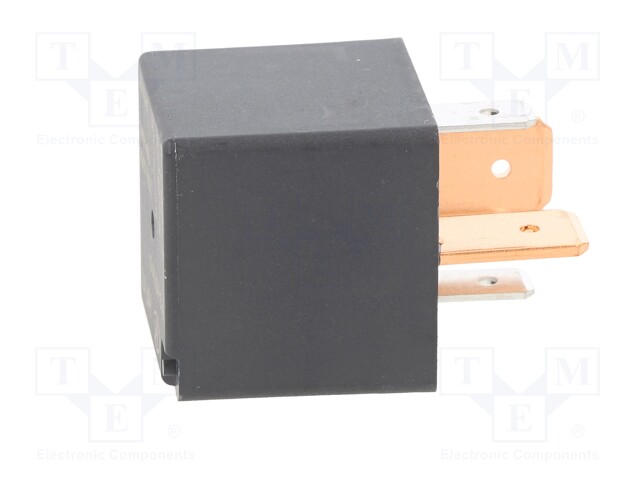

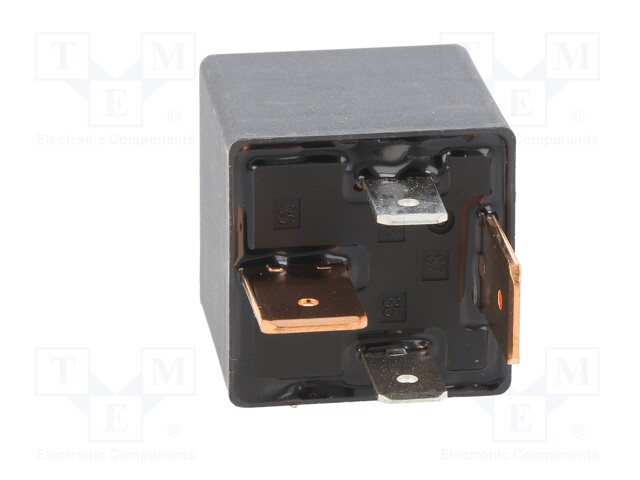

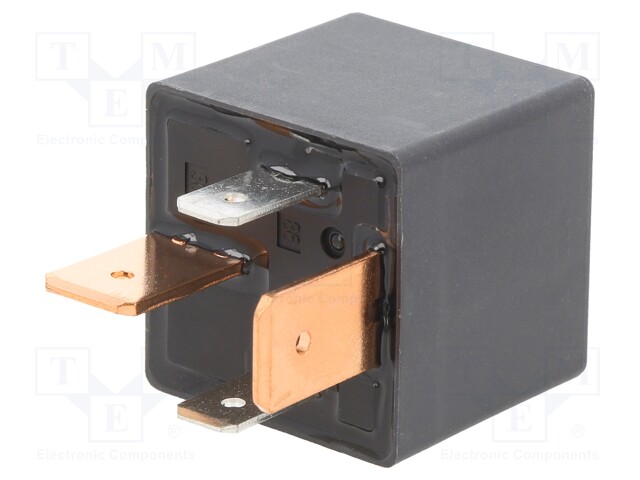

Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 70A; automotive

    Kordarv: 120.0
    Minimum quantity: 120.0
    Tootekood: HFV7/012-HSTM-D
    Tootja: HONGFA RELAY
    Tootja tootekood: HFV7/012-HSTM-D
    • Mounting
    • Operating temperature
    • Contact material
    • Body dimensions
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact current max.
    • Relay variant
    • Coil voltage max.
    • Type of relay
    • Coil voltage min.
    • Coil power consumption
    • Optional equipment

    0,00 € 0,00 € (KM-TA) 0.0 EUR

    0,00 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 70A; automotive

    Mounting socket
    Operating temperature -40...125°C
    Contact material AgSnO<sub>2</sub>

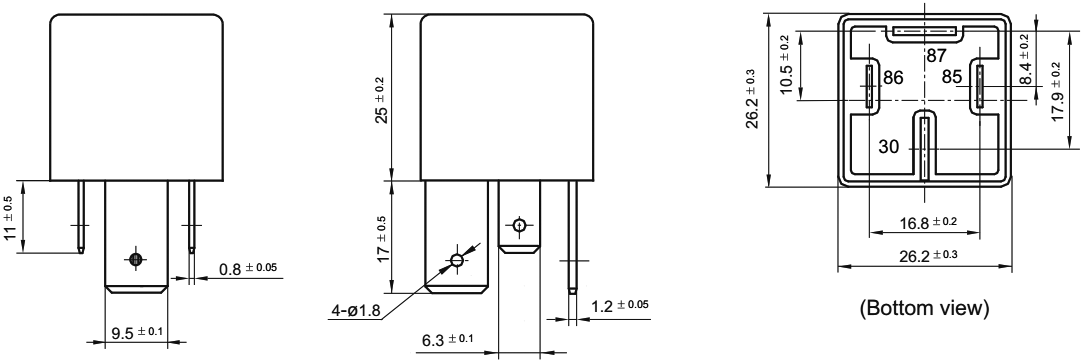

    Body dimensions 26.2x26.2x25mm
    Switched voltage ≤ 50V DC
    Coil resistance 90Ω
    Rated coil voltage 12V DC

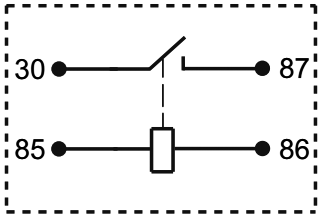

    Contacts configuration SPST-NO
    DC contacts rating @R 70A / 12V DC
    Contact current max. 70A
    Relay variant automotive
    Coil voltage max. 18V DC
    Type of relay electromagnetic
    Coil voltage min. 7.2V DC
    Coil power consumption 1.6W
    Optional equipment overvoltage damping diode
