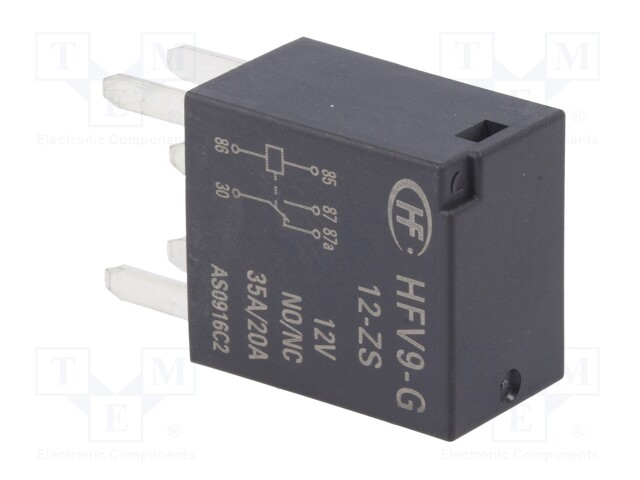

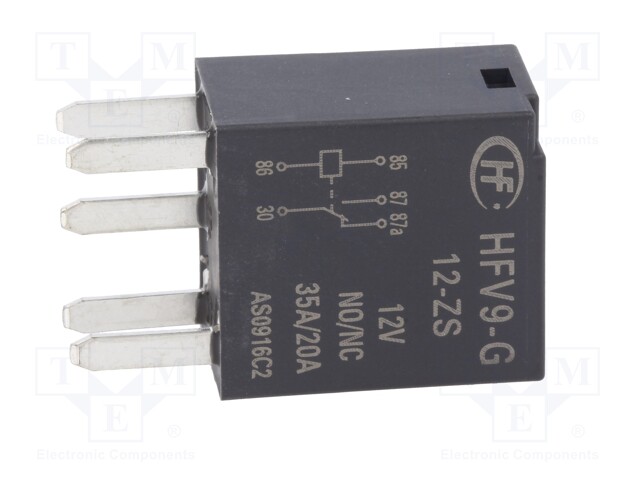

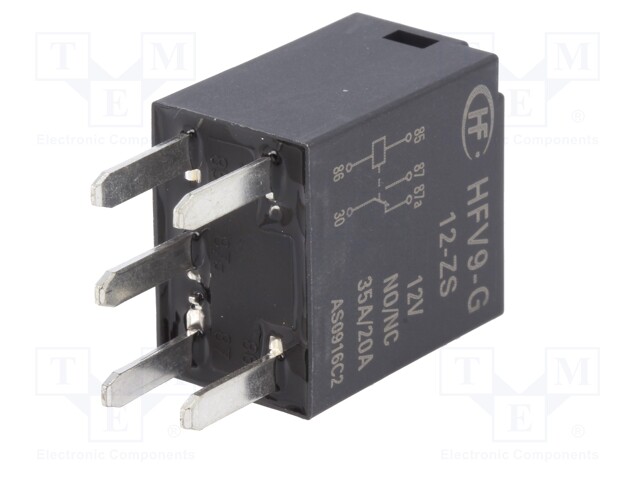

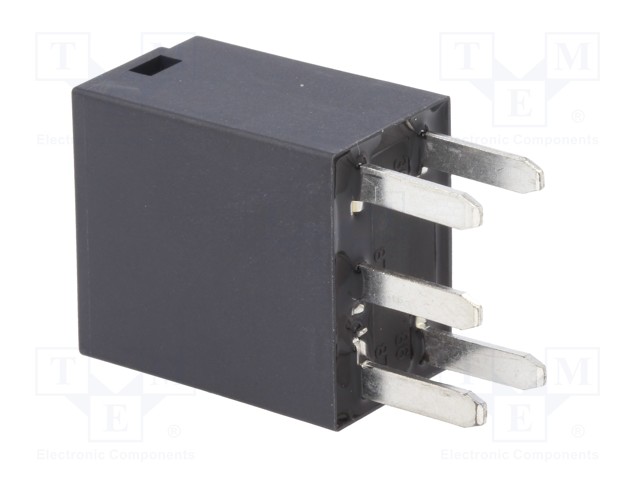

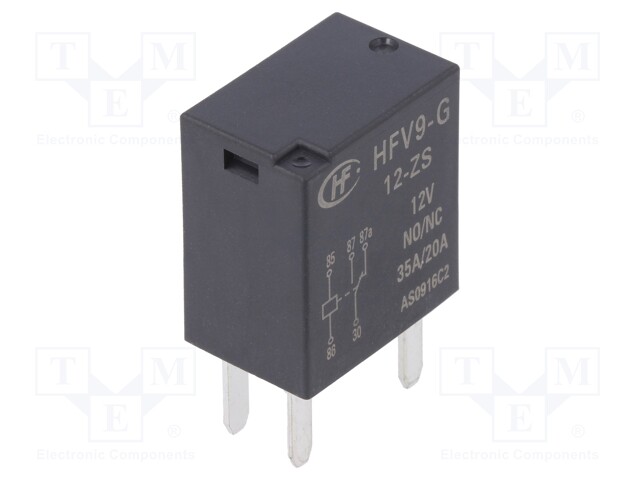

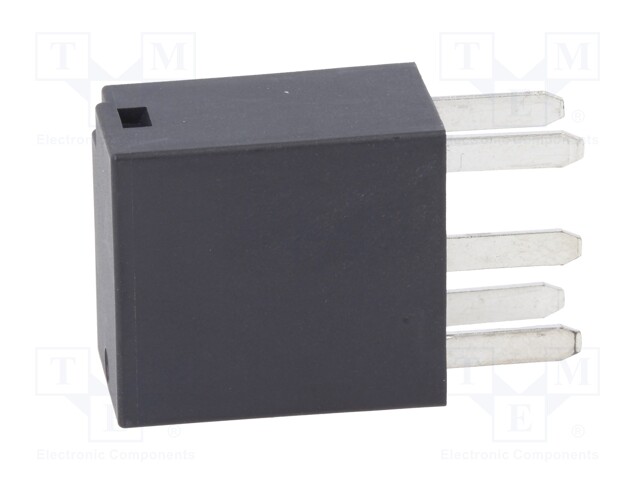

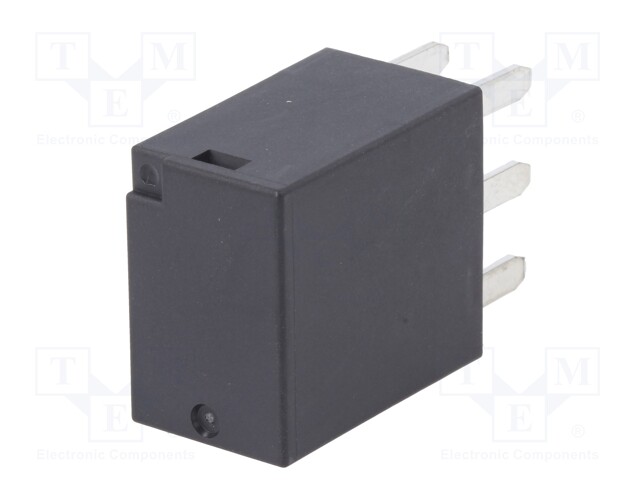

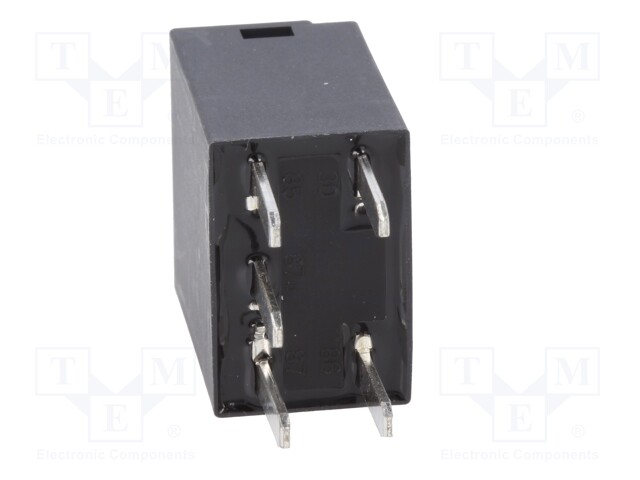

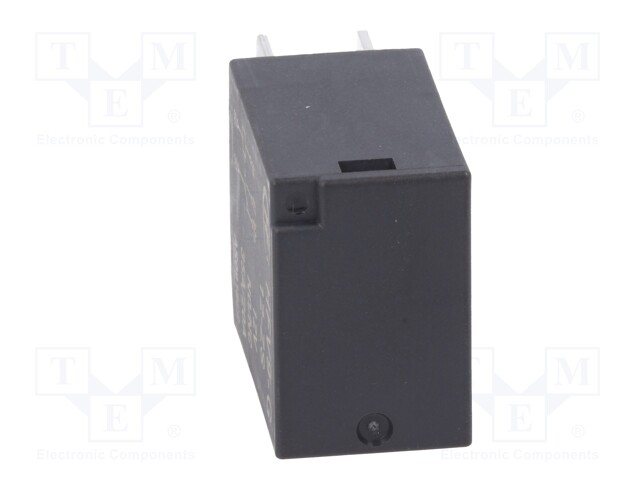

Relay: electromagnetic; SPDT; Ucoil: 12VDC; 35A; automotive; 124Ω

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: HFV9-G/12-ZS
    Tootja: HONGFA RELAY
    Tootja tootekood: HFV9-G/12-ZS
    • Mounting
    • Operating temperature
    • Contact material
    • Body dimensions
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact current max.
    • Relay variant
    • Coil voltage max.
    • Type of relay
    • Coil voltage min.
    • Coil power consumption

    4,44 € 4,44 € (KM-TA) 4.44 EUR

    4,44 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; SPDT; Ucoil: 12VDC; 35A; automotive; 124Ω

    Mounting socket
    Operating temperature -40...125°C
    Contact material AgSnO<sub>2</sub>

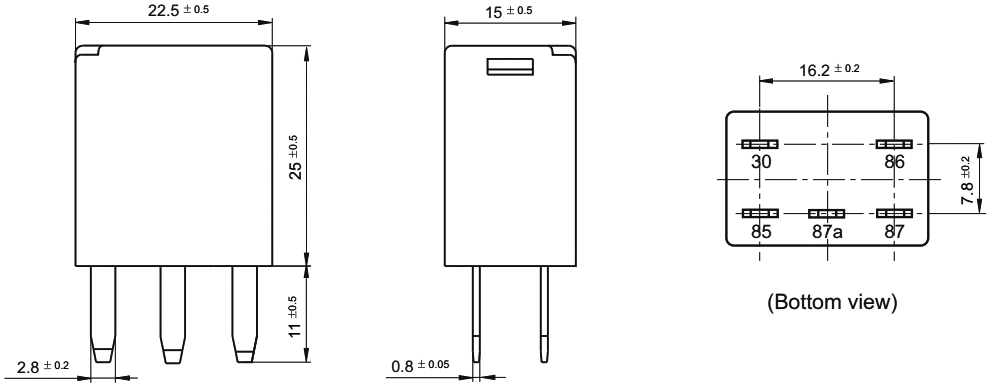

    Body dimensions 22.5x15x25mm
    Coil resistance 124Ω
    Rated coil voltage 12V DC

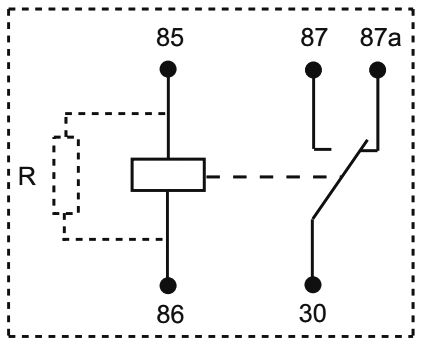

    Contacts configuration SPDT
    DC contacts rating @R 35A / 12V DC
    Contact current max. 35A
    Relay variant automotive
    Coil voltage max. 14.9V DC
    Type of relay electromagnetic
    Coil voltage min. 7.2V DC
    Coil power consumption 1.2W
