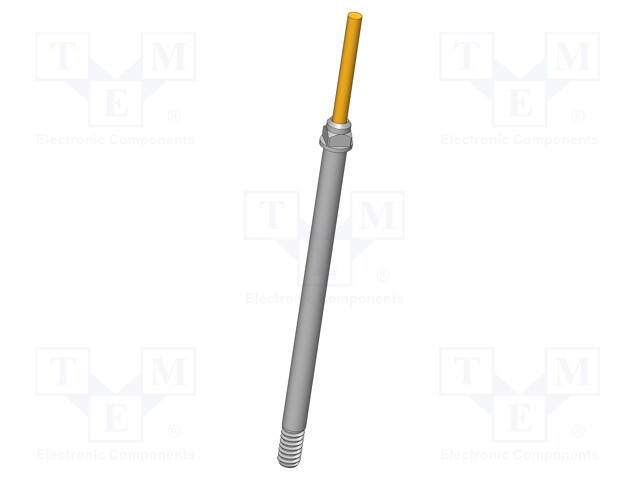

Test needle; Operational spring compression: 4mm; 20A; Ø: 1mm

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: HSS-118 302 100 A 3002 M
    Tootja: INGUN
    Tootja tootekood: HSS-118 302 100 A 3002 M
    • Mounting
    • Operating temperature
    • Contact plating
    • Contact material
    • Max. contact resistance
    • Current rating
    • Tip diameter
    • Type of test accessories
    • Operational spring compression
    • Maksimum spring compression
    • Blade tip shape

    17,46 € 17,46 € (KM-TA) 17.46 EUR

    17,46 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Test needle; Operational spring compression: 4mm; 20A; Ø: 1mm

    Mounting screw-in
    Operating temperature -100...200°C
    Contact plating gold-plated
    Contact material CuBe
    Max. contact resistance 10mΩ
    Current rating 20A
    Tip diameter 1mm
    Type of test accessories test probe
    Operational spring compression 4mm
    Maksimum spring compression 8mm
    Blade tip shape flat
