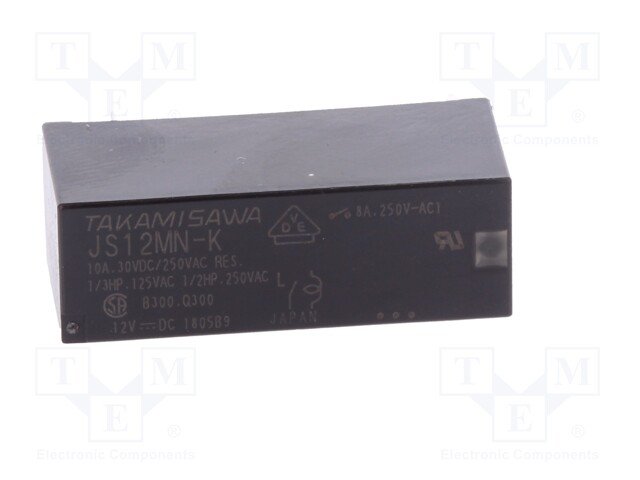

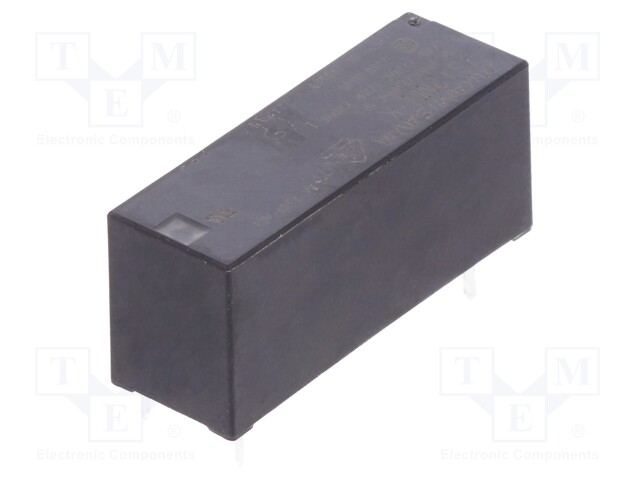

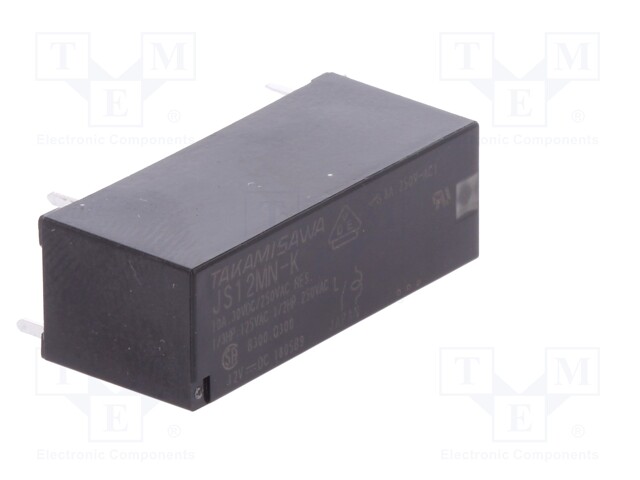

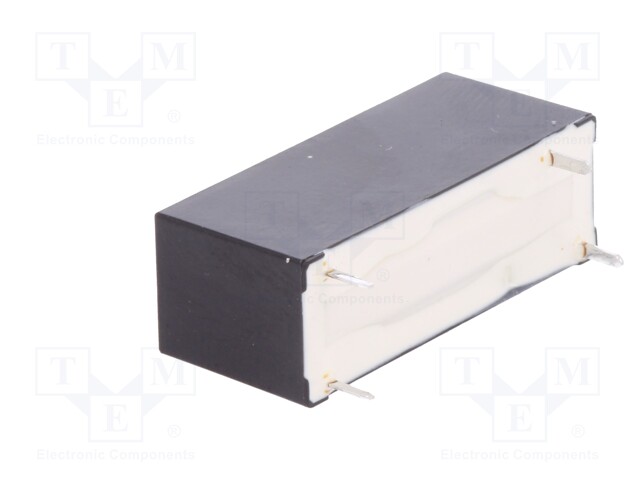

Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 8A/250VAC; 8A/24VDC

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: JS-12MN-K
    Tootja: FCL Components
    Tootja tootekood: JS-12MN-K
    • Mounting
    • Operating temperature
    • Contact plating
    • Contact material
    • Terminal pitch
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Coil voltage max.
    • Type of relay
    • Coil voltage min.
    • Coil power consumption
    • Operate time
    • Release time

    3,11 € 3,11 € (KM-TA) 3.11 EUR

    3,11 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 8A/250VAC; 8A/24VDC

    Mounting PCB
    Operating temperature -40...85°C
    Contact plating gold-plated
    Contact material AgSnO<sub>2</sub>

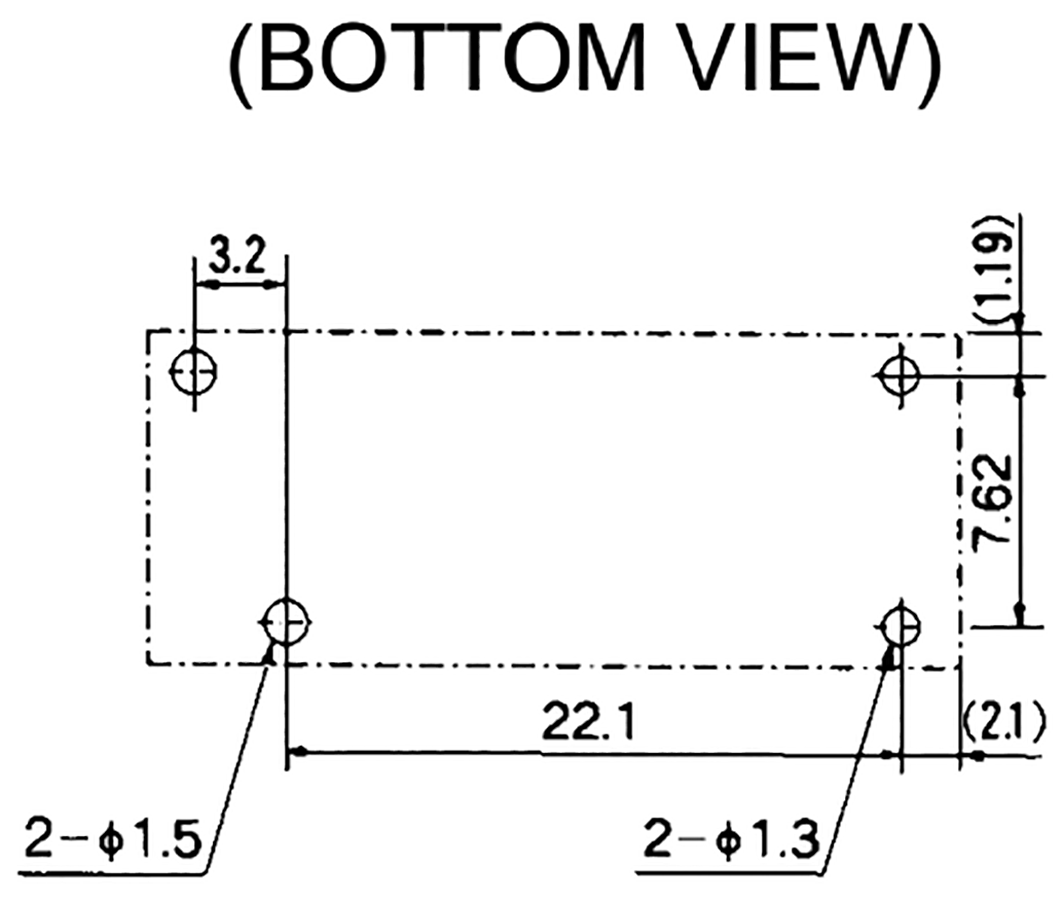

    Terminal pitch 3.2mm
    Body dimensions 29x10x12.5mm
    Switched voltage ≤ 150V DC, ≤ 400V AC
    Coil resistance 660Ω
    Rated coil voltage 12V DC

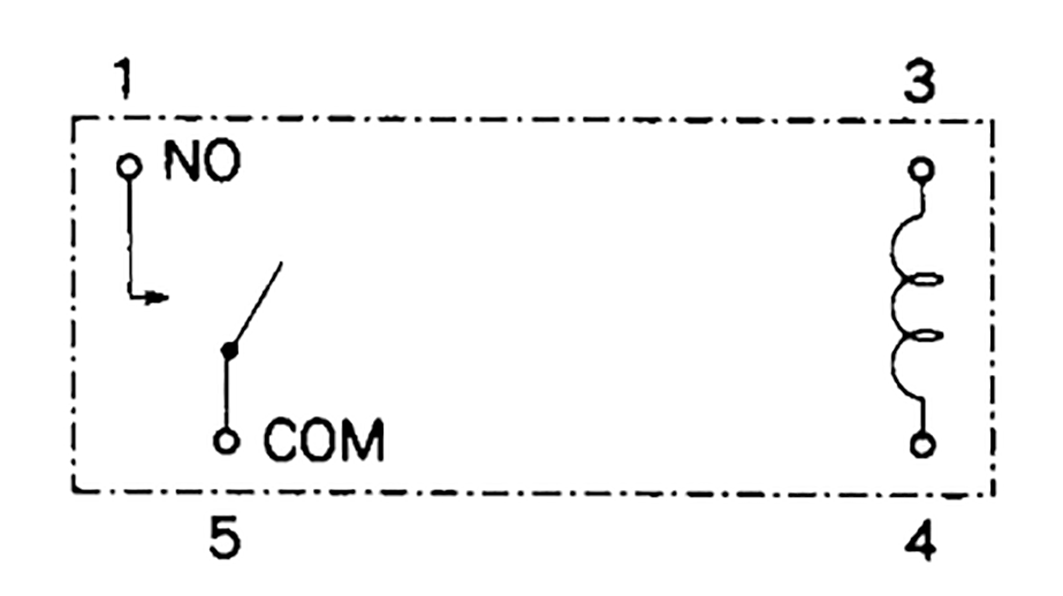

    Contacts configuration SPST-NO
    DC contacts rating @R 8A / 24V DC
    Contact resistance 100MΩ
    AC contacts rating @R 8A / 250V AC
    Contact current max. 8A
    Relay variant miniature
    Coil voltage max. 28.3V DC
    Type of relay electromagnetic
    Coil voltage min. 8.5V DC
    Coil power consumption 220mW
    Operate time 10ms
    Release time 5ms
