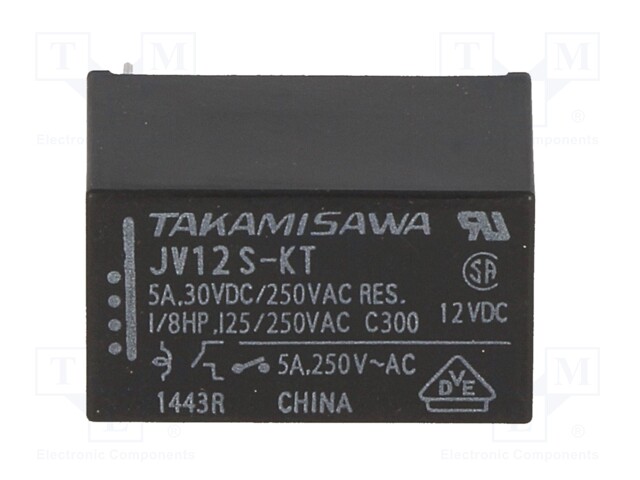

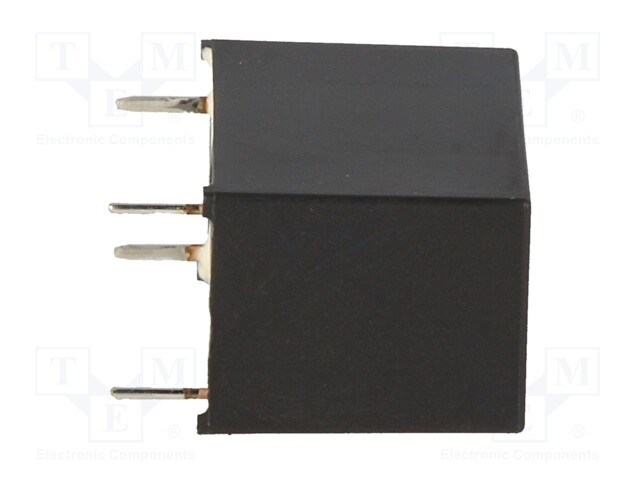

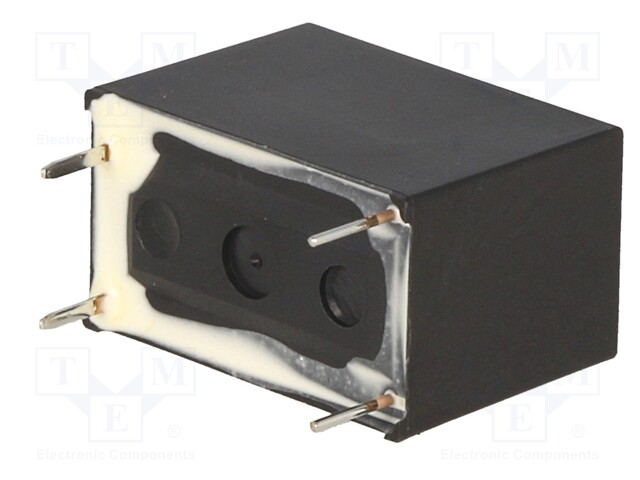

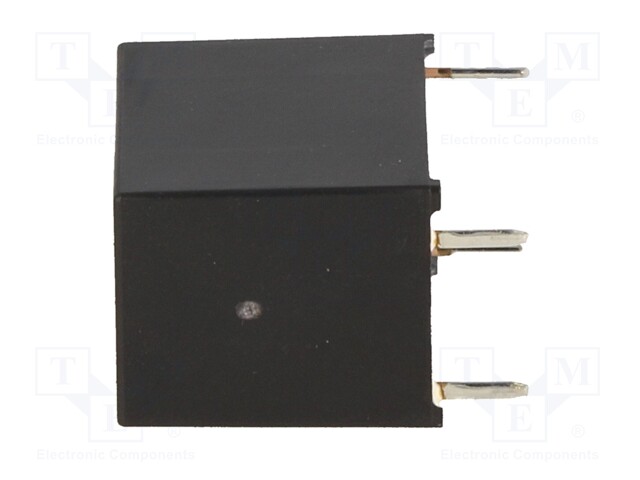

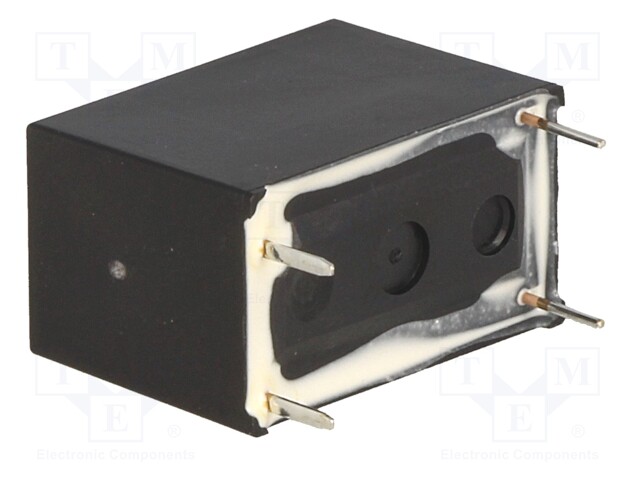

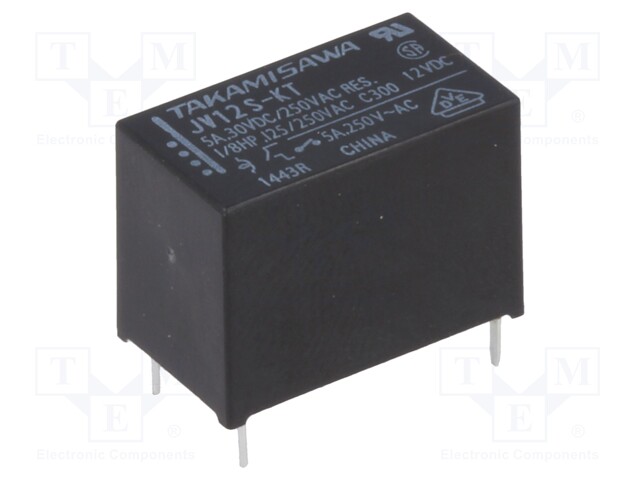

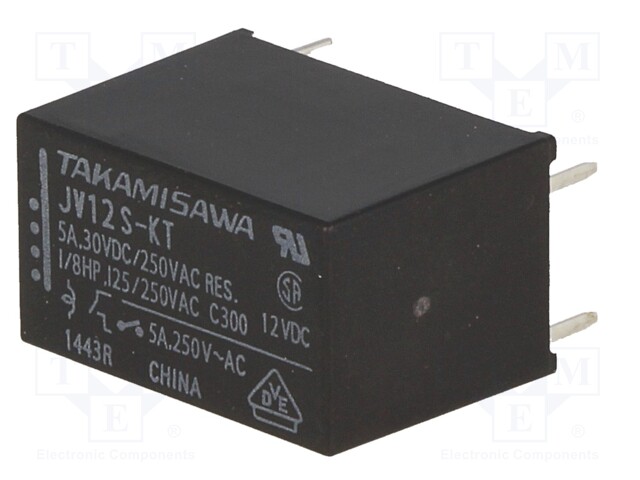

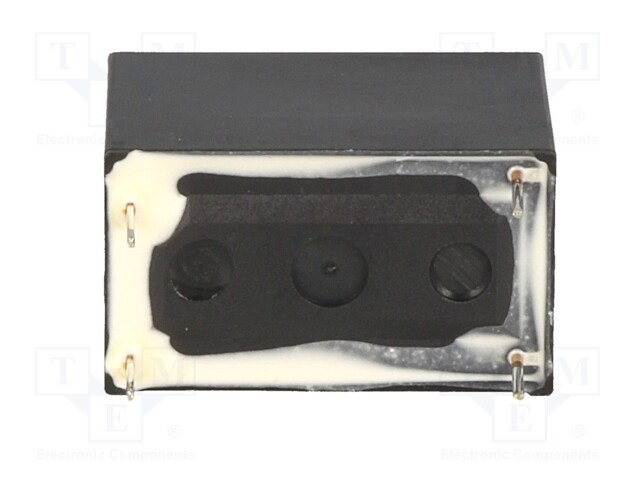

Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 5A/250VAC; 5A/30VDC

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: JV-12S-KT
    Tootja: FUJITSU
    Tootja tootekood: JV-12S-KT
    • Mounting
    • Operating temperature
    • Contact material
    • Terminal pitch
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil voltage min.
    • Coil power consumption
    • Operate time
    • Release time

    1,80 € 1,80 € (KM-TA) 1.8 EUR

    1,80 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 5A/250VAC; 5A/30VDC

    Mounting PCB
    Operating temperature -40...70°C
    Contact material AgNi + Au
    Terminal pitch 6.35mm
    Body dimensions 17.5x10x12.5mm
    Switched voltage ≤ 150V DC, ≤ 250V AC
    Coil resistance 720Ω
    Rated coil voltage 12V DC
    Contacts configuration SPST-NO
    DC contacts rating @R 5A / 30V DC
    Contact resistance 70mΩ
    AC contacts rating @R 5A / 250V AC
    Contact current max. 5A
    Relay variant miniature
    Type of relay electromagnetic
    Coil voltage min. 9V DC
    Coil power consumption 200mW
    Operate time 8ms
    Release time 4ms
