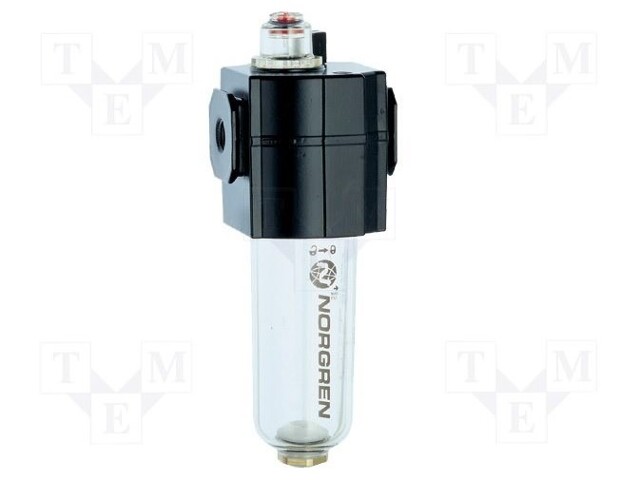

Lubricator; BSP 3/8"; bowl mat: polycarbonate; 60ml; 10bar

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: L73M-3GP-ETN
    Tootja: NORGREN HERION
    Tootja tootekood: L73M-3GP-ETN
    • Operating temperature
    • Body material
    • Thread
    • B dimension
    • A dimension
    • C dimension
    • E dimension
    • F dimension
    • Dimension G
    • Internal parts material
    • Type of pneumatic module
    • Pneumatic components features
    • Tank capacity
    • Condensate bowl material
    • Lubrication starts at flow

    189,33 € 189,33 € (KM-TA) 189.33 EUR

    189,33 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Lubricator; BSP 3/8"; bowl mat: polycarbonate; 60ml; 10bar

    Operating temperature -20...50°C
    Body material aluminum alloy
    Thread BSP 3/8"
    B dimension 255mm
    A dimension 156mm
    C dimension 25mm
    E dimension 47mm
    F dimension 68mm
    Dimension G 62mm
    Internal parts material plastic
    Type of pneumatic module lubricator
    Pneumatic components features sensor for constant dosing ratio
    Tank capacity 60ml
    Condensate bowl material polycarbonate
    Lubrication starts at flow 0.71l/s
