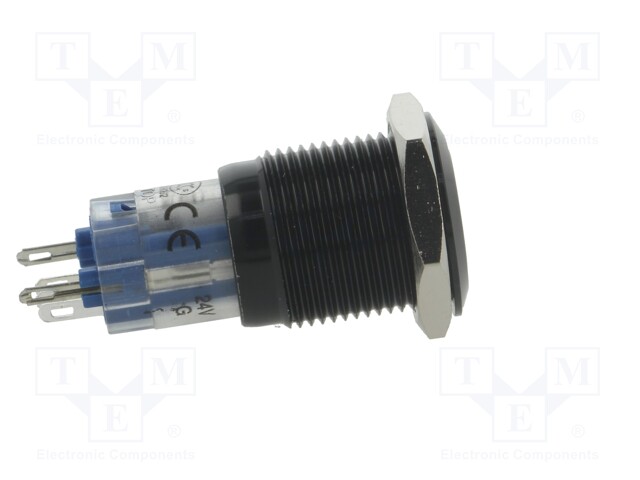

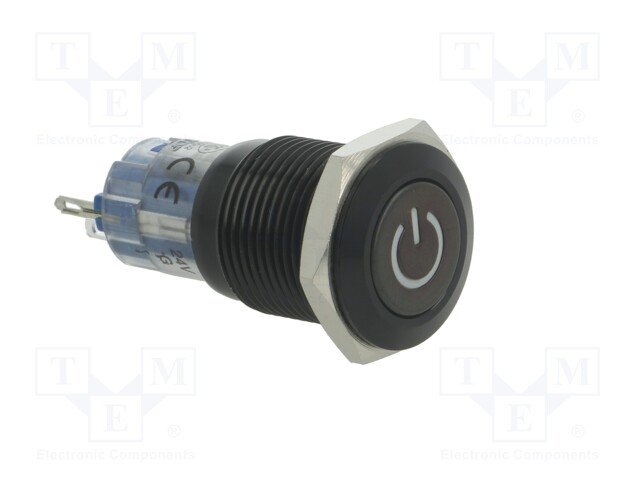

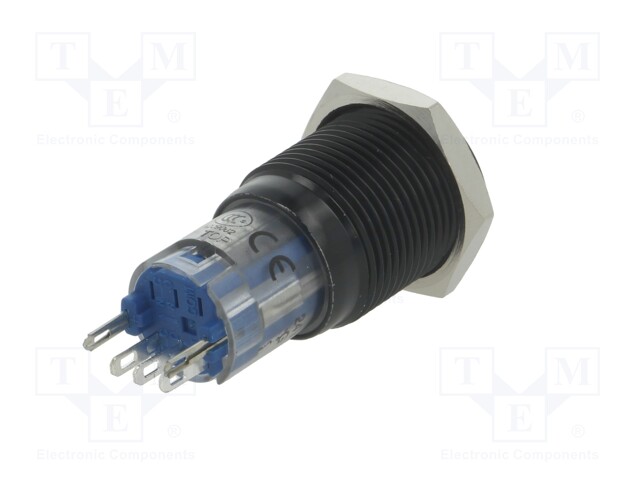

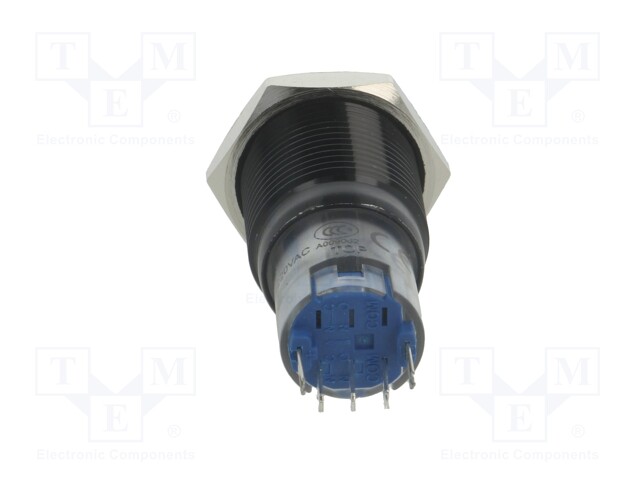

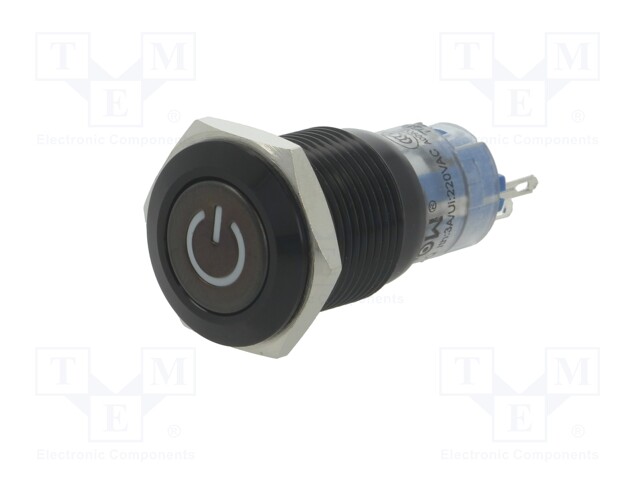

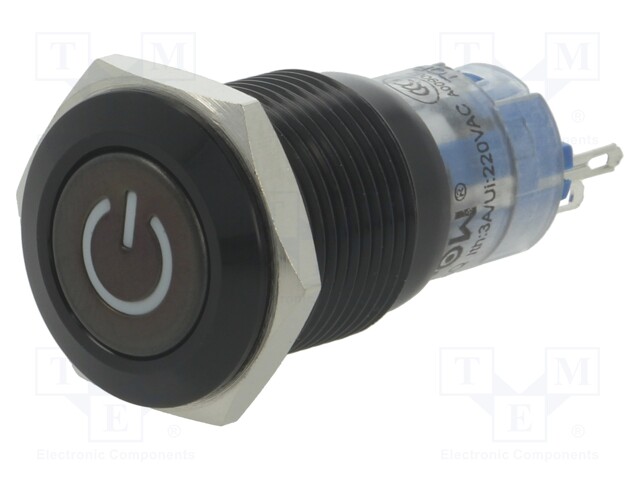

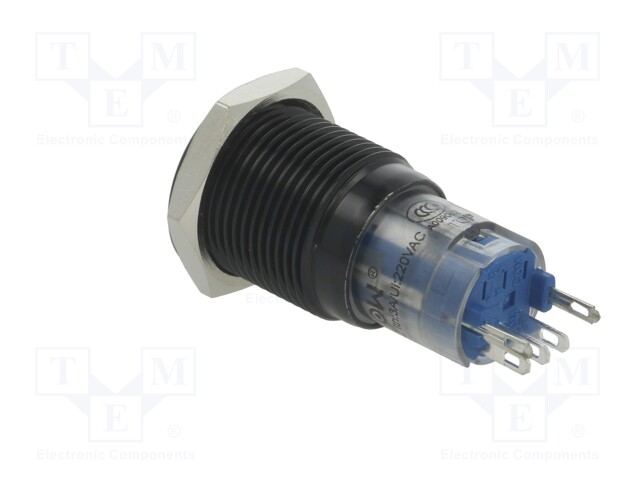

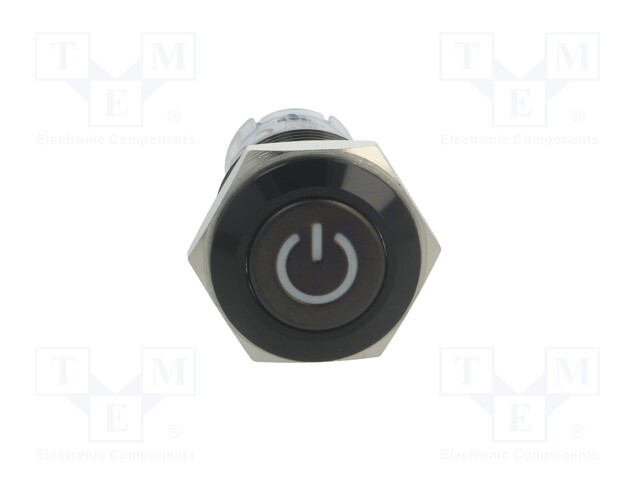

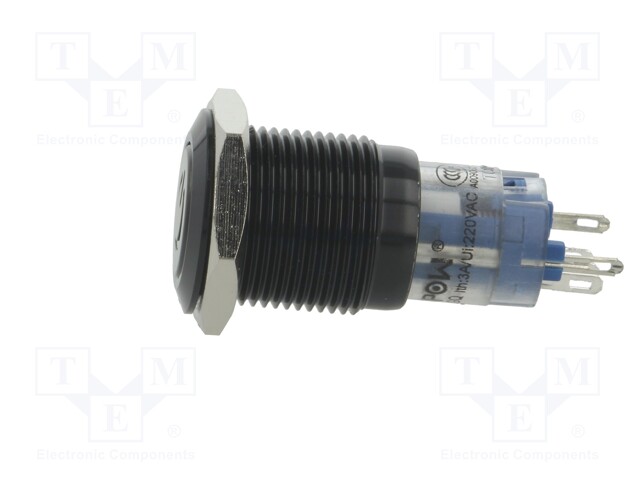

Switch: vandal resistant; Pos: 2; SPDT; 0.5A/220VAC; 1A/24VDC; IP40

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: LAS2GQF-11DT/G/24V/A
    Tootja: ONPOW
    Tootja tootekood: LAS2GQF-11DT/G/24V/A
    • Operating temperature
    • IP rating
    • Type of switch
    • Number of positions
    • Leads
    • Contact material
    • Max. contact resistance
    • Body material
    • Mounting hole diameter
    • Body colour
    • Mechanical durability
    • Backlight colour
    • Illumination
    • Illumination
    • Electrical life
    • Test voltage
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Switching method
    • Stable positions number
    • Operating Force
    • Button shape
    • Button marking
    • Illumination voltage
    • Ring shape

    11,03 € 11,03 € (KM-TA) 11.03 EUR

    11,03 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Switch: vandal resistant; Pos: 2; SPDT; 0.5A/220VAC; 1A/24VDC; IP40

    Operating temperature -20...55°C
    IP rating IP40
    Type of switch vandal resistant
    Number of positions 2
    Leads for soldering
    Contact material silver alloy
    Max. contact resistance 50mΩ
    Body material aluminium

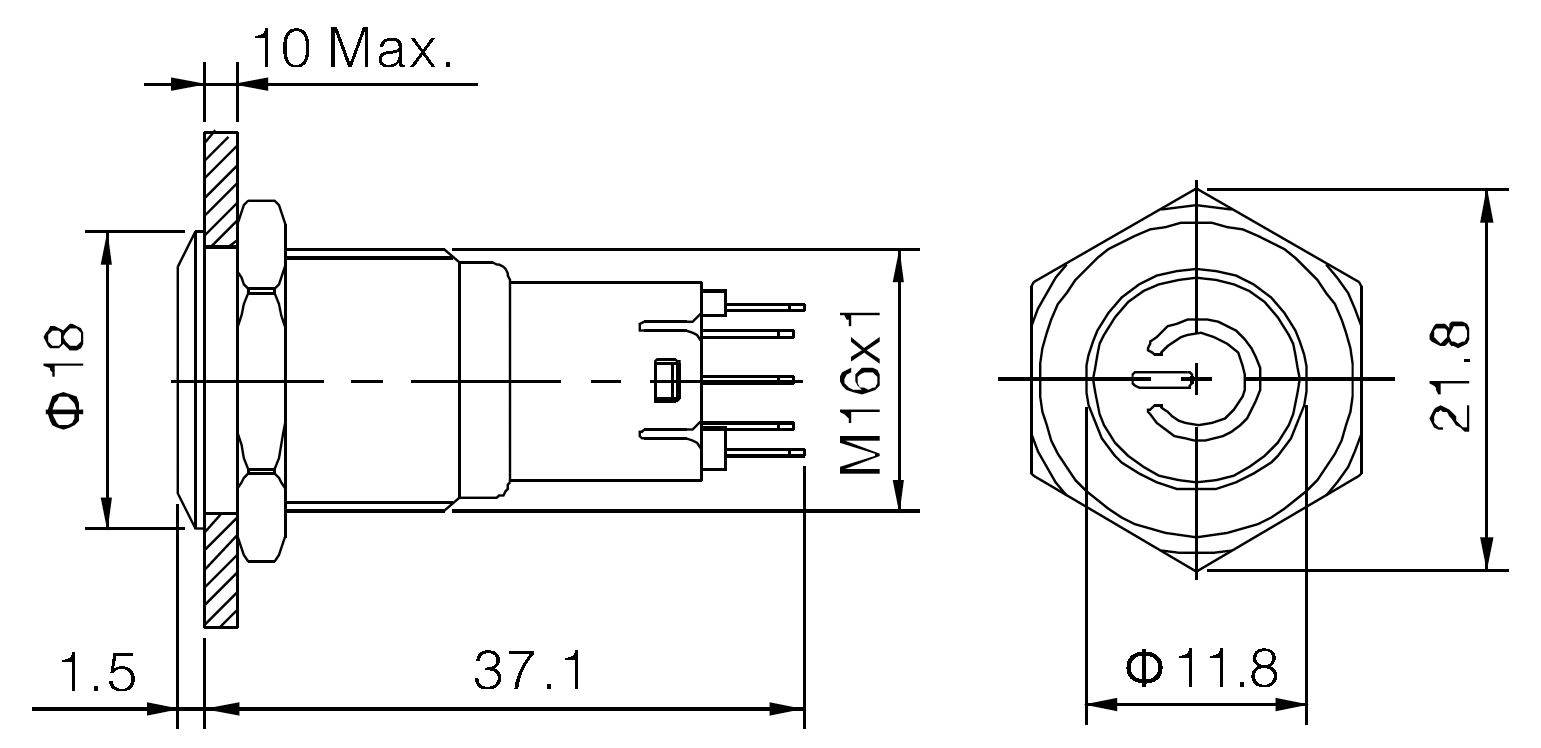

    Mounting hole diameter Ø16mm
    Body colour black
    Mechanical durability 200000cycles
    Backlight colour green
    Illumination point, LED
    Electrical life 50000cycles
    Test voltage 1.5kV
    Contacts configuration SPDT
    DC contacts rating @R 1A / 24V DC
    AC contacts rating @R 500mA / 220V AC
    Switching method ON-(ON)
    Stable positions number 1
    Operating Force 4N
    Button shape flat
    Button marking POWER
    Illumination voltage 24V
    Ring shape rounded
