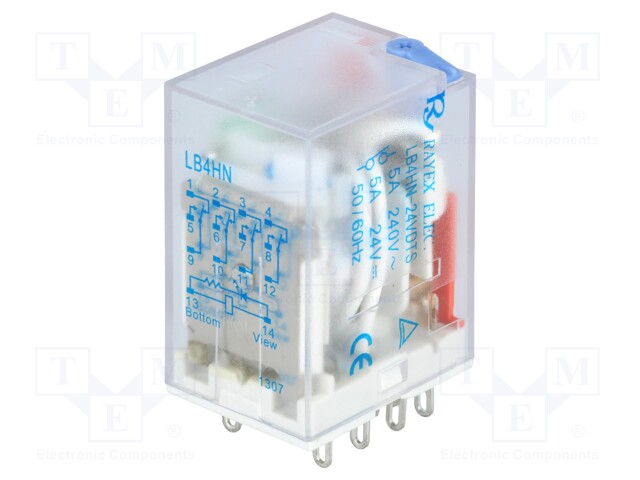

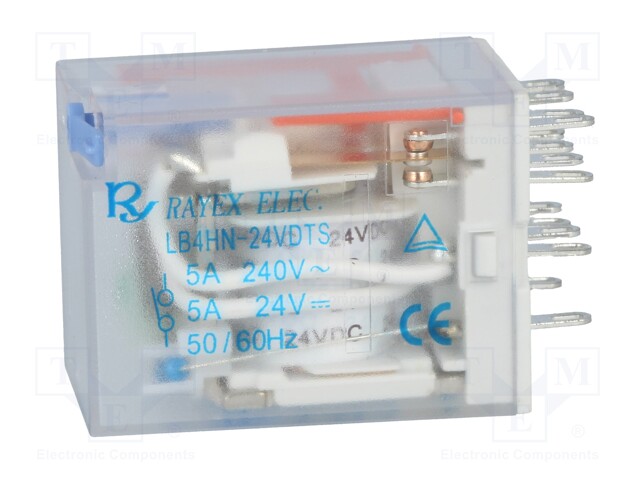

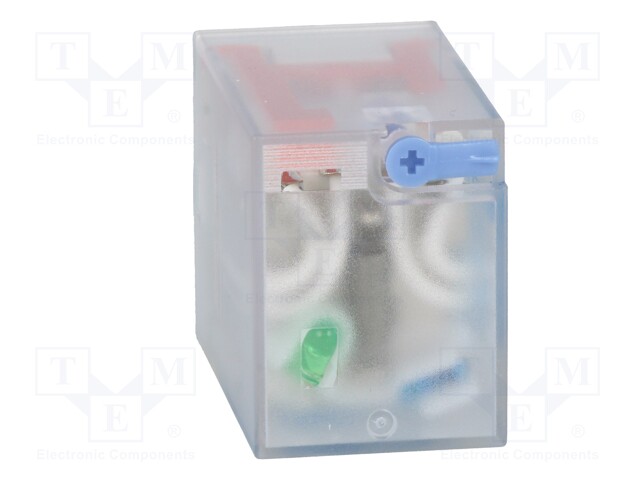

Relay: electromagnetic; 4PDT; Ucoil: 24VDC; 5A/240VAC; 5A/24VDC; 5A

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: LB4HN-24DTS
    Tootja: RAYEX ELECTRONICS
    Tootja tootekood: LB4HN-24DTS
    • Mounting
    • Operating temperature
    • Leads
    • Body dimensions
    • Mechanical durability
    • Switched voltage
    • Switched voltage
    • Indication
    • Electrical life
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil power consumption
    • Operate time
    • Release time

    6,09 € 6,09 € (KM-TA) 6.09 EUR

    6,09 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; 4PDT; Ucoil: 24VDC; 5A/240VAC; 5A/24VDC; 5A

    Mounting socket
    Operating temperature -40...60°C
    Leads connectors

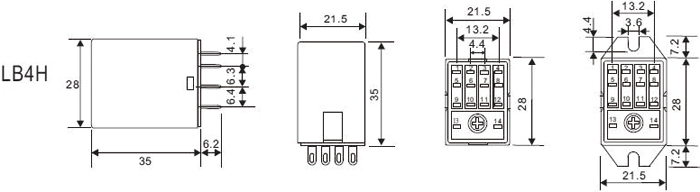

    Body dimensions 28x21.5x35mm
    Mechanical durability 10000000cycles
    Switched voltage ≤ 30V DC, ≤ 240V AC
    Indication LED
    Electrical life 100000cycles
    Coil resistance 650Ω
    Rated coil voltage 24V DC
    Contacts configuration 4PDT
    DC contacts rating @R 5A / 24V DC
    Contact resistance 100MΩ
    AC contacts rating @R 5A / 240V AC
    Contact current max. 5A
    Relay variant industrial
    Type of relay electromagnetic
    Coil power consumption 1.1W
    Operate time 15ms
    Release time 15ms
