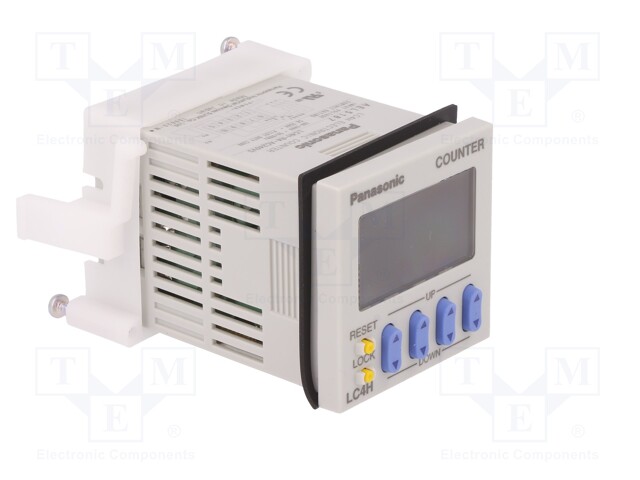

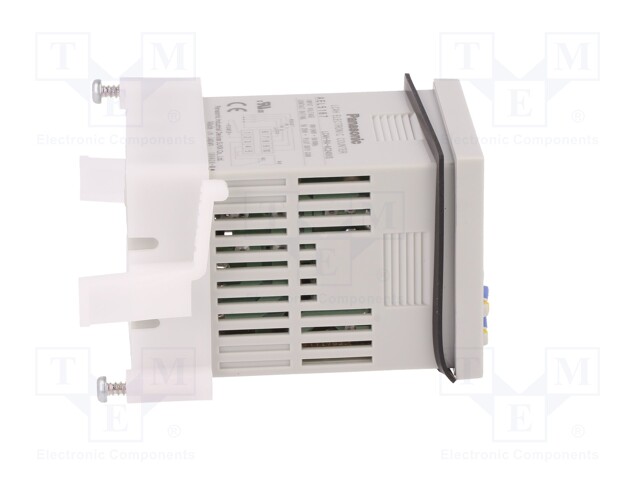

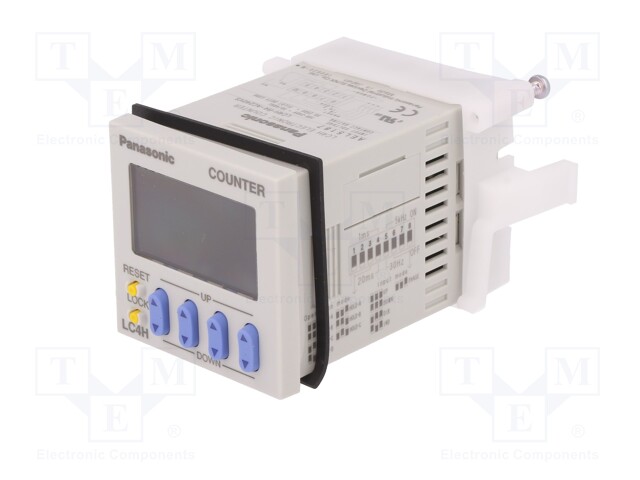

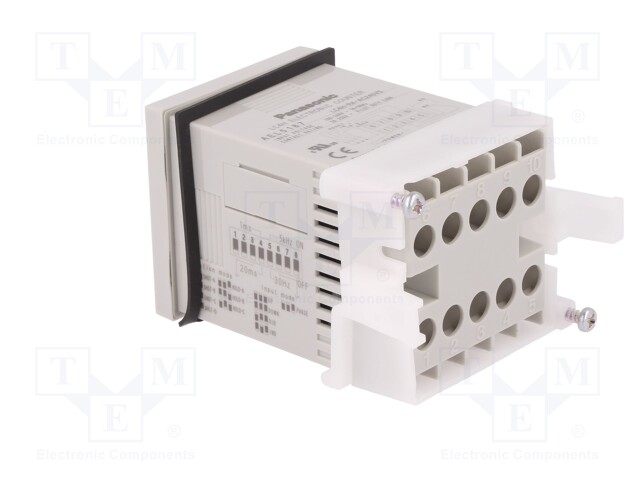

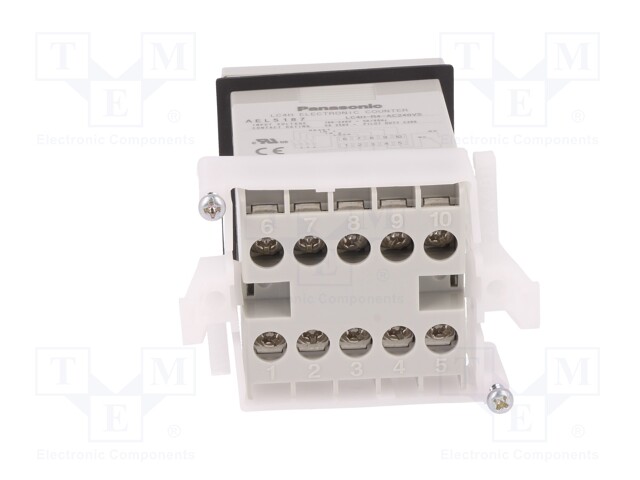

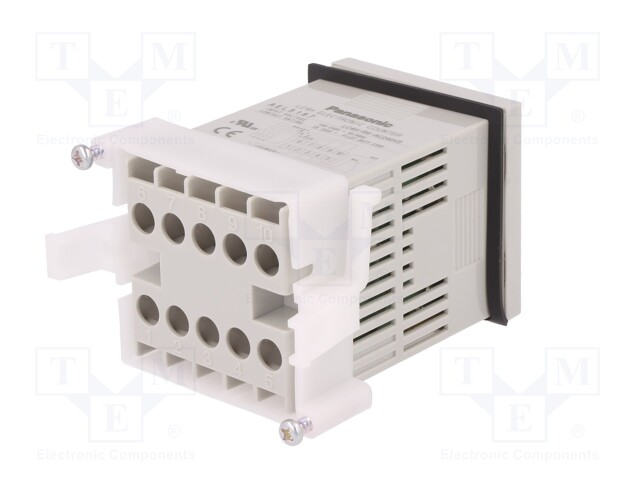

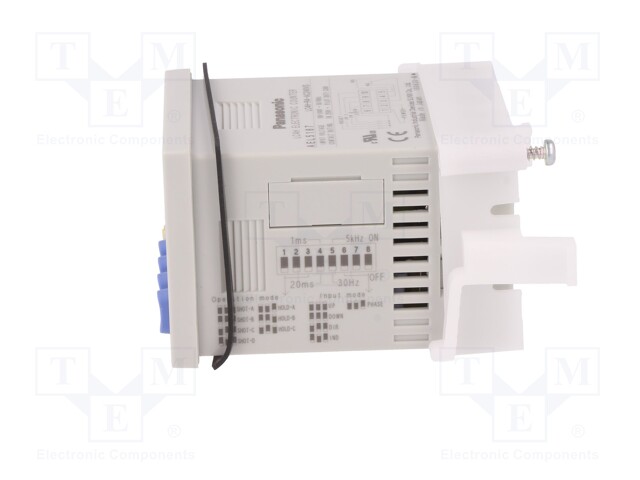

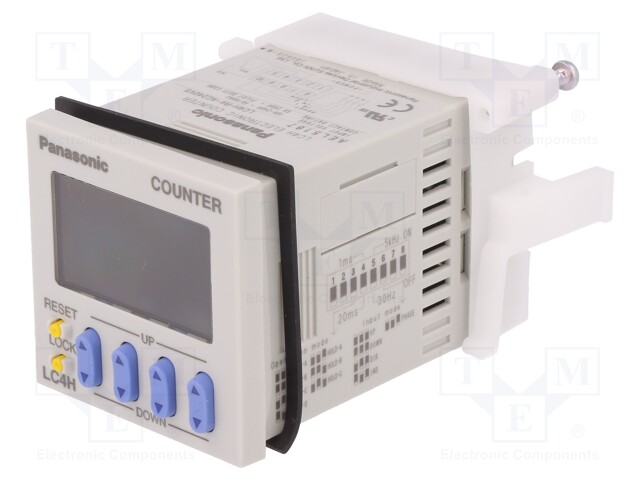

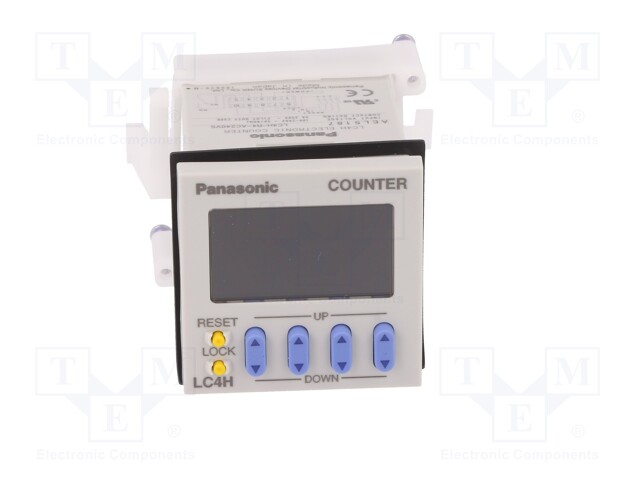

Counter: electronical; 2x LCD; pulses; 9999; SPDT; Cutout: 45x45mm

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: LC4H-R4-AC240VS
    Tootja: PANASONIC
    Tootja tootekood: LC4H-R4-AC240VS
    • Mounting
    • Supply voltage
    • Operating temperature
    • IP rating
    • Mounting hole diameter
    • Body dimensions
    • Kind of display used
    • Kind of input 1
    • Kind of input 1
    • Kind of input 1
    • Electrical connection
    • Counting range
    • Kind of output 1
    • Resetting method
    • Resetting method
    • Resetting method
    • Kind of input 2
    • Kind of input 2
    • Kind of input 2
    • Type of counted signal
    • Type of counter
    • Max IN1 counting frequency
    • The additional control inputs
    • The additional control inputs
    • Kind of counter
    • IN2 max counting frequency

    0,00 € 0,00 € (KM-TA) 0.0 EUR

    0,00 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Counter: electronical; 2x LCD; pulses; 9999; SPDT; Cutout: 45x45mm

    Mounting on panel
    Supply voltage 100...240V AC
    Operating temperature -10...55°C
    IP rating IP66 (from the front)
    Mounting hole diameter 45x45mm
    Body dimensions 48x48x72mm
    Kind of display used LCD
    Kind of input 1 contact, NPN, PNP
    Electrical connection screw terminals
    Counting range 9999
    Kind of output 1 SPDT
    Resetting method electrical, locking possibility, manual
    Kind of input 2 contact, NPN, PNP
    Type of counted signal pulses
    Type of counter electronical
    Max IN1 counting frequency 5kHz
    The additional control inputs LOCK, RESET
    Kind of counter progressive/reversing
    IN2 max counting frequency 30Hz
