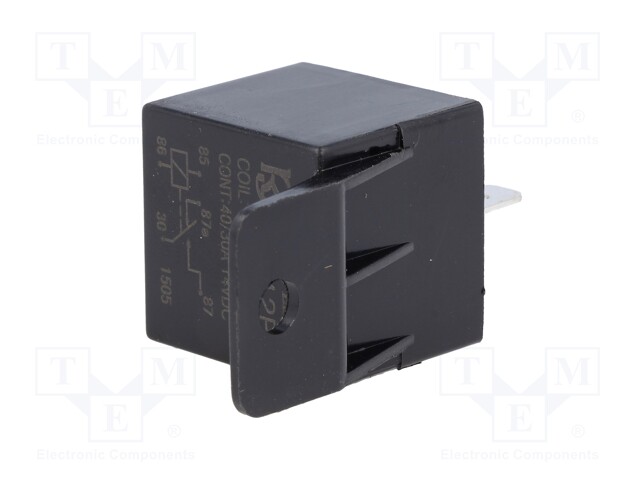

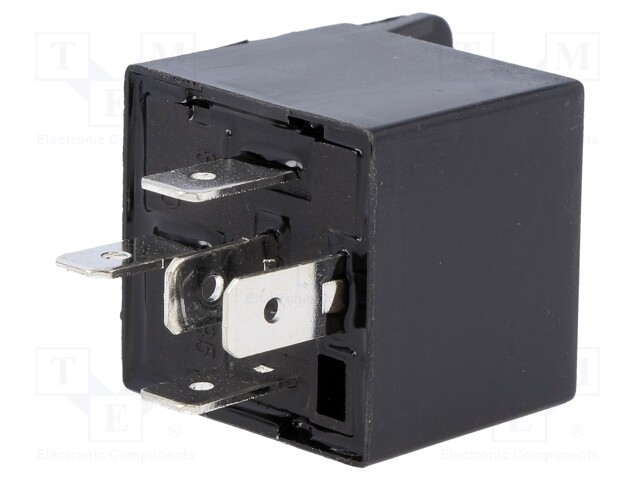

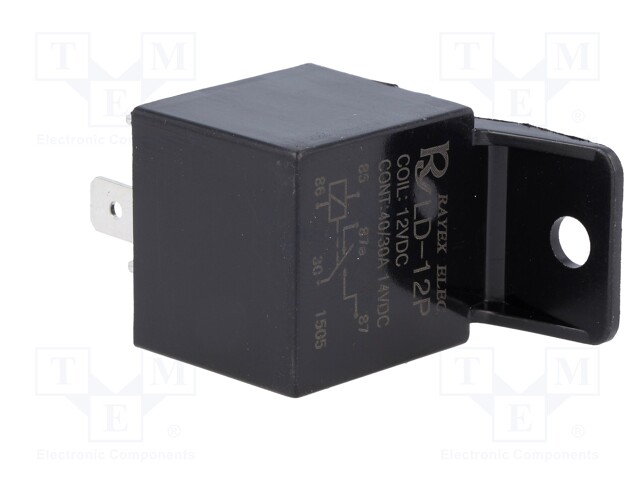

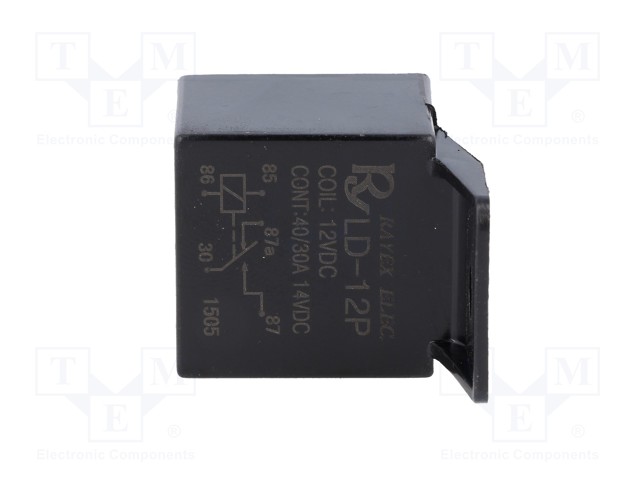

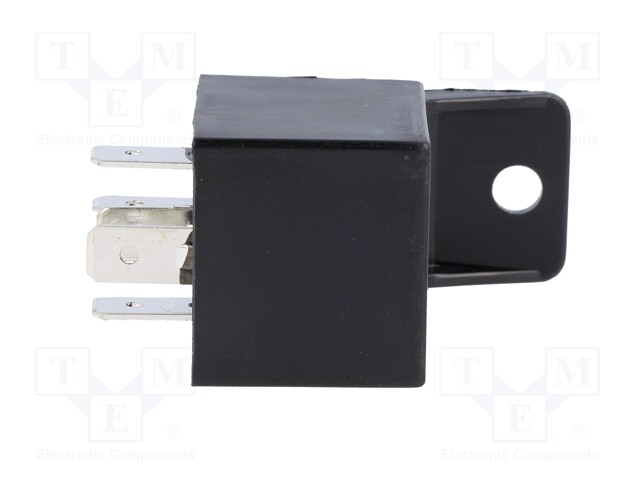

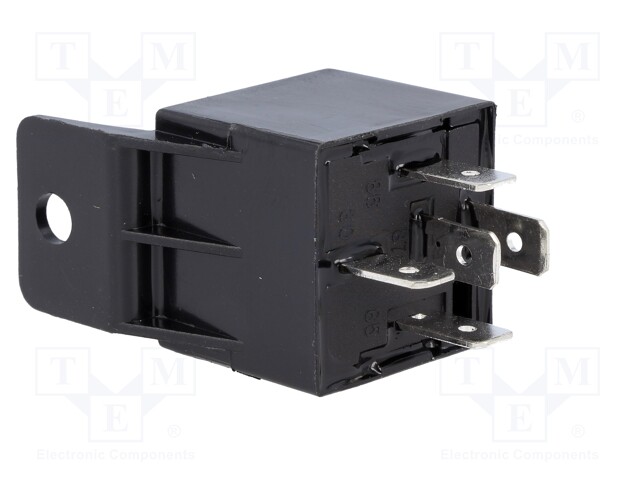

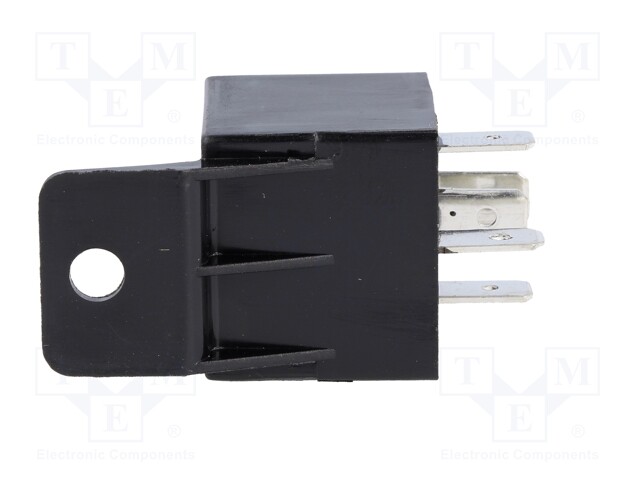

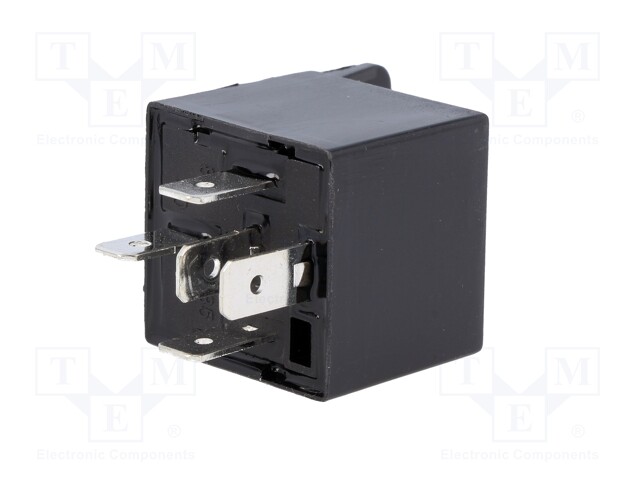

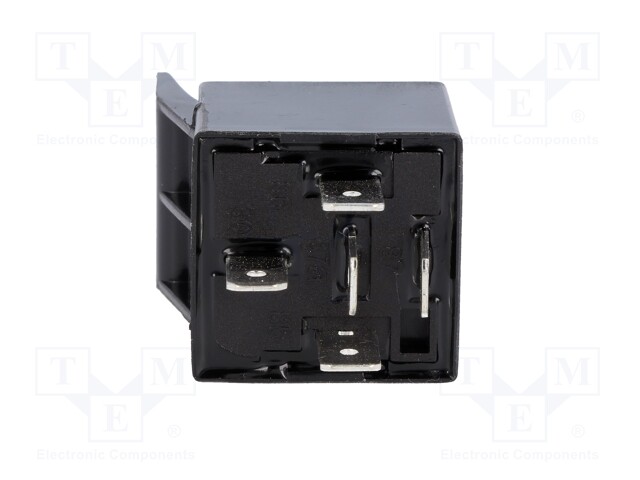

Relay: electromagnetic; SPDT; Ucoil: 12VDC; 40A; automotive; 38g

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: LD-12P
    Tootja: Recoy/RAYEX ELECTRONICS
    Tootja tootekood: LD-12P
    • Mounting
    • Mounting
    • Operating temperature
    • Leads
    • Body dimensions
    • Mechanical durability
    • Electrical life
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • Contact current max.
    • Relay variant
    • Type of relay
    • Operate time
    • Release time
    • Coil current

    2,67 € 2,67 € (KM-TA) 2.67 EUR

    2,67 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; SPDT; Ucoil: 12VDC; 40A; automotive; 38g

    Mounting on panel, socket
    Operating temperature -40...85°C
    Leads connectors

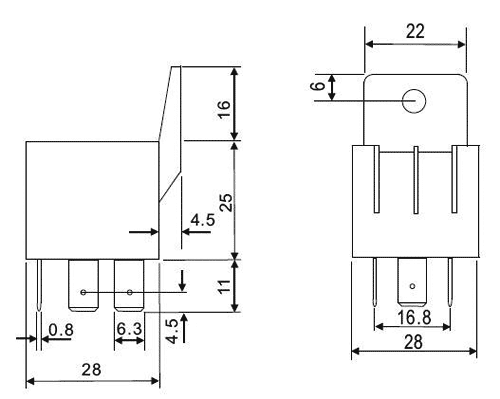

    Body dimensions 28x28x25mm
    Mechanical durability 1000000cycles
    Electrical life 100000cycles
    Coil resistance 80Ω
    Rated coil voltage 12V DC

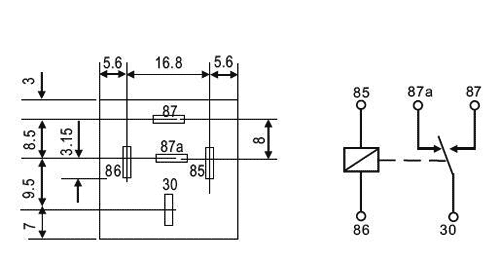

    Contacts configuration SPDT
    DC contacts rating @R 30A / 12V DC
    Contact resistance 100MΩ
    Contact current max. 40A
    Relay variant automotive
    Type of relay electromagnetic
    Operate time 10ms
    Release time 10ms
    Coil current 150mA
