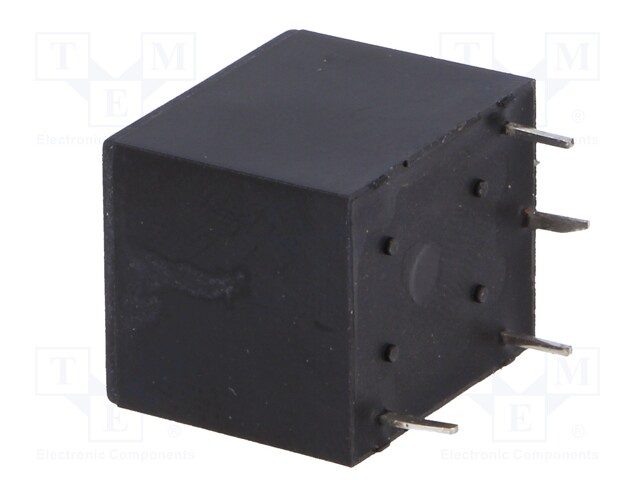

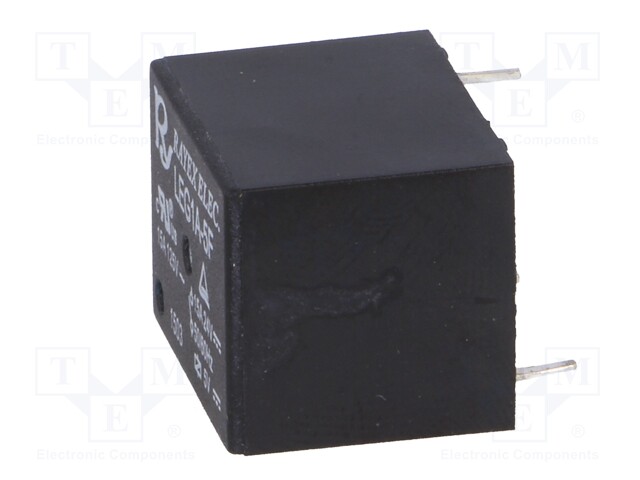

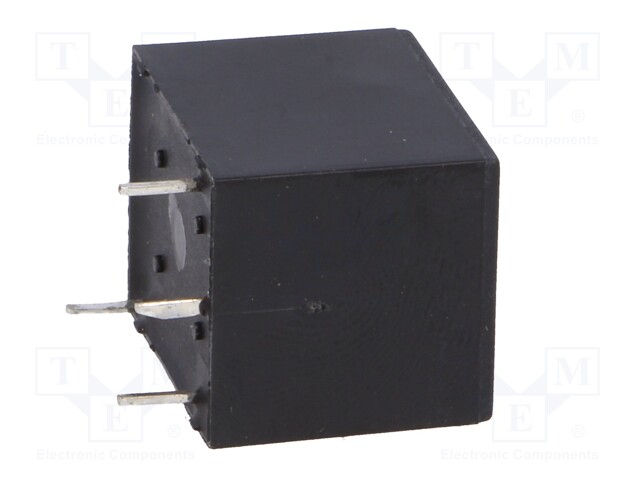

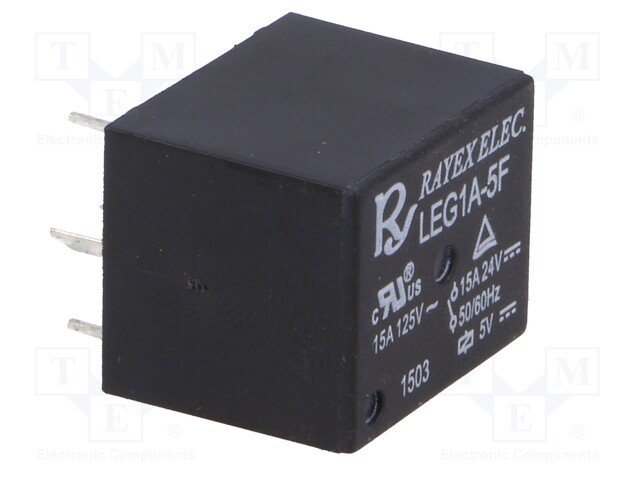

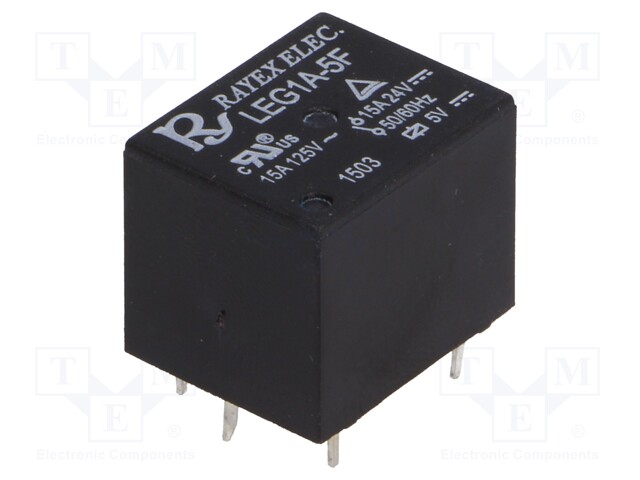

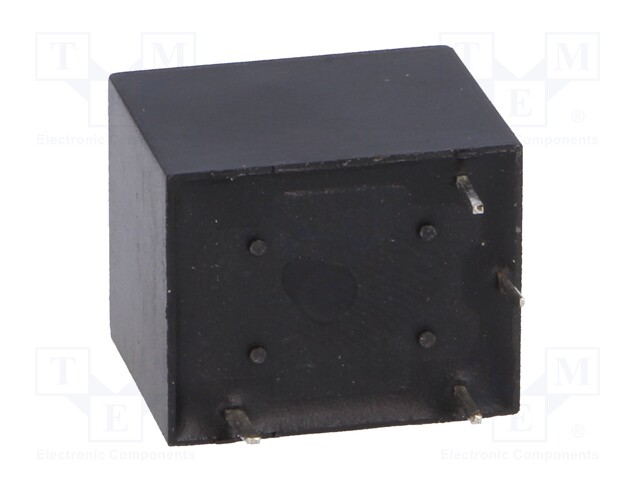

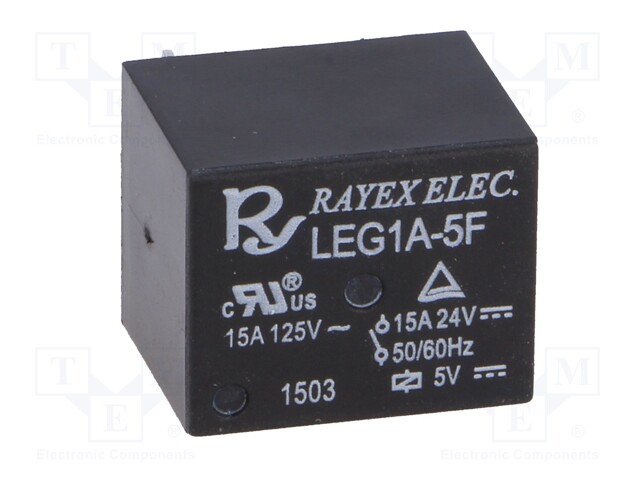

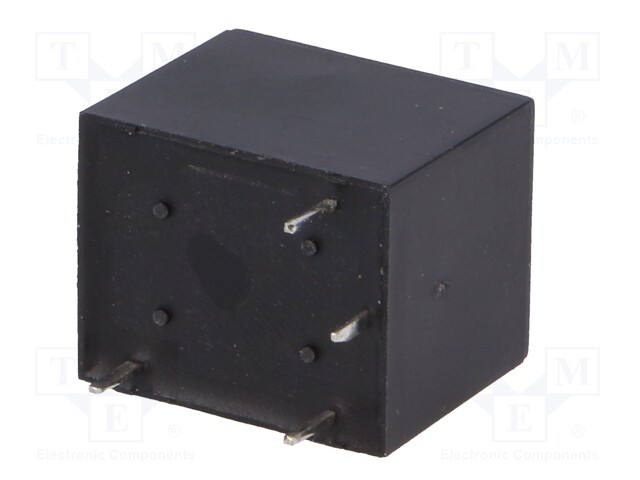

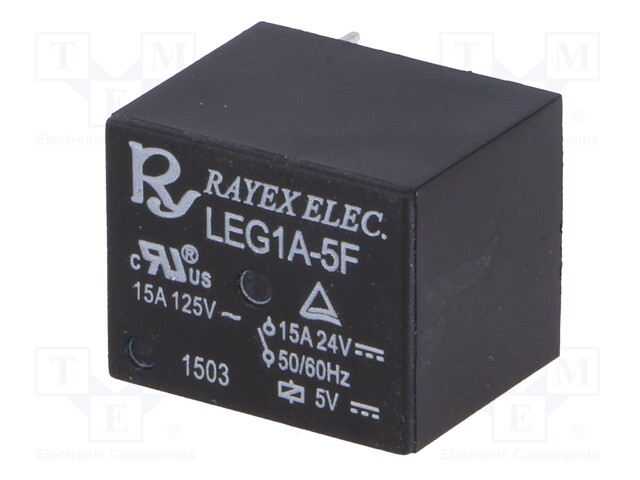

Relay: electromagnetic; SPST-NO; Ucoil: 5VDC; 15A/120VAC; toff: 8ms

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: LEG1A-5F
    Tootja: RAYEX ELECTRONICS
    Tootja tootekood: LEG1A-5F
    • Mounting
    • Operating temperature
    • Terminal pitch
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil power consumption
    • Operate time
    • Release time
    • Coil current

    1,02 € 1,02 € (KM-TA) 1.02 EUR

    1,02 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; SPST-NO; Ucoil: 5VDC; 15A/120VAC; toff: 8ms

    Mounting PCB
    Operating temperature -30...85°C
    Terminal pitch 2mm
    Body dimensions 19.5x15.8x15mm
    Switched voltage ≤ 100V DC, ≤ 240V AC
    Coil resistance 70Ω
    Rated coil voltage 5V DC
    Contacts configuration SPST-NO
    DC contacts rating @R 15A / 24V DC
    Contact resistance 100MΩ
    AC contacts rating @R 15A / 120V AC
    Contact current max. 15A
    Relay variant miniature
    Type of relay electromagnetic
    Coil power consumption 360mW
    Operate time 8ms
    Release time 8ms
    Coil current 72mA
