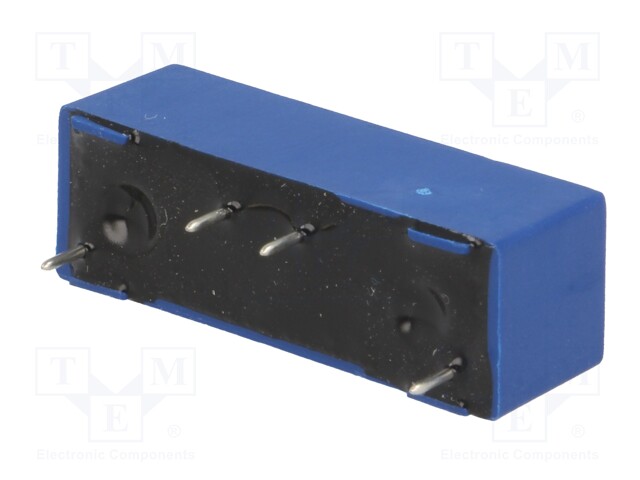

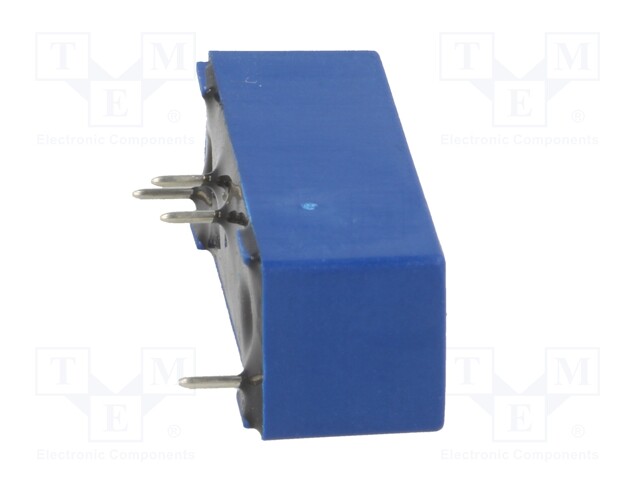

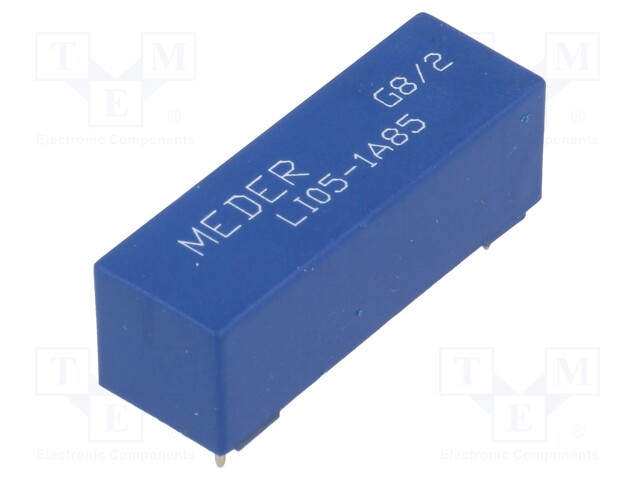

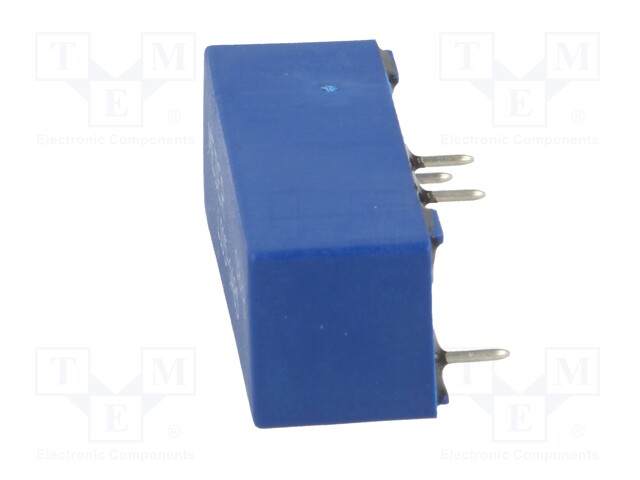

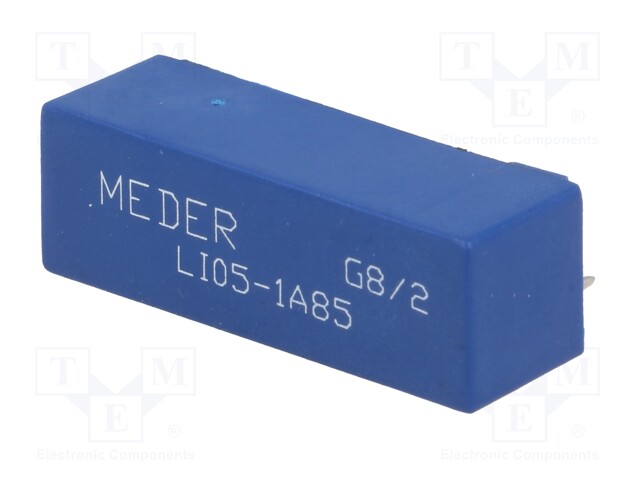

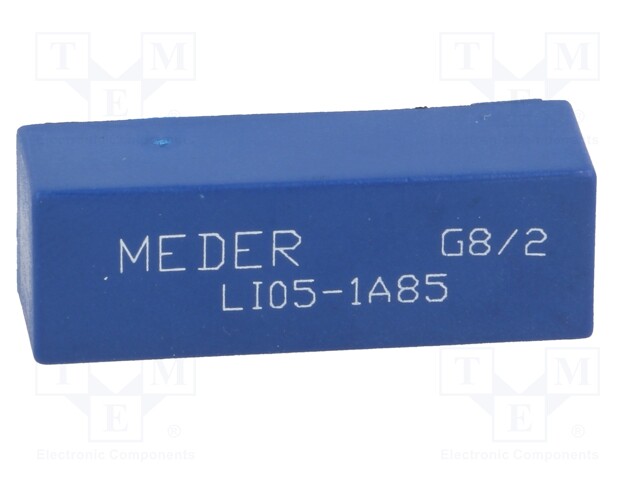

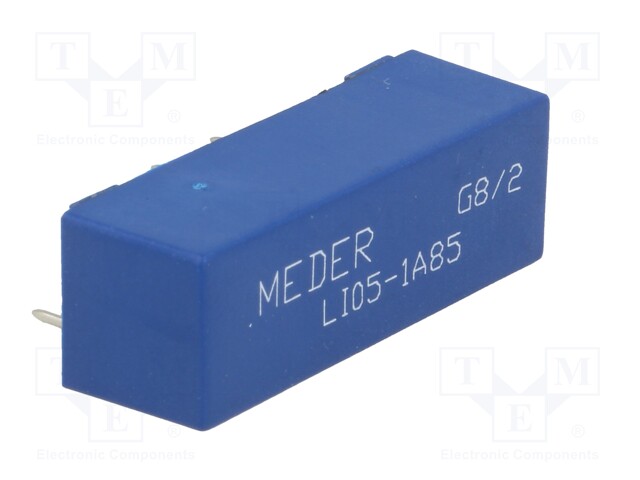

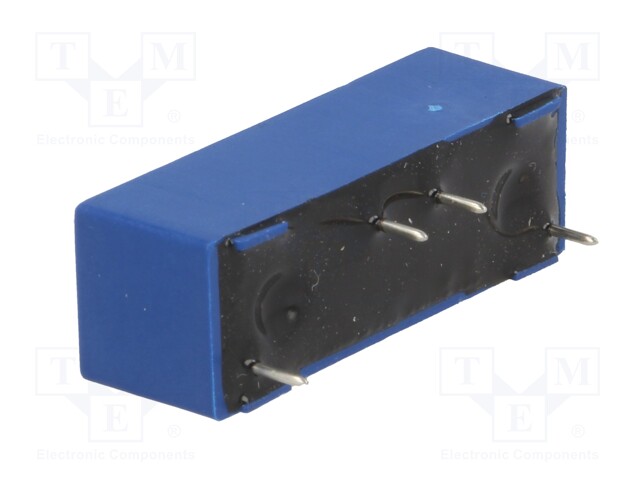

Relay: reed; SPST-NO; Ucoil: 5VDC; 2.5A; max.1kVDC; max.1kVAC; 100W

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: LI05-1A85
    Tootja: MEDER
    Tootja tootekood: LI05-1A85
    • Mounting
    • Operating temperature
    • Terminal pitch
    • Body dimensions
    • Breakdown voltage
    • Switched voltage
    • Switched voltage
    • Min. insulation resistance
    • Switching capacity
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • Contact resistance
    • Contact current max.
    • Type of relay
    • Coil power consumption
    • Operate time
    • Release time

    13,20 € 13,20 € (KM-TA) 13.200000000000001 EUR

    13,20 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: reed; SPST-NO; Ucoil: 5VDC; 2.5A; max.1kVDC; max.1kVAC; 100W

    Mounting PCB
    Operating temperature -20...70°C
    Terminal pitch 5.08mm
    Body dimensions 30x10x10.4mm
    Breakdown voltage 4.2kV
    Switched voltage ≤ 1kV AC, ≤ 1kV DC
    Min. insulation resistance 1TΩ
    Switching capacity 100W
    Coil resistance 200Ω
    Rated coil voltage 5V DC
    Contacts configuration SPST-NO
    Contact resistance 150mΩ
    Contact current max. 2.5A
    Type of relay reed
    Coil power consumption 125mW
    Operate time 1ms
    Release time 100µs
