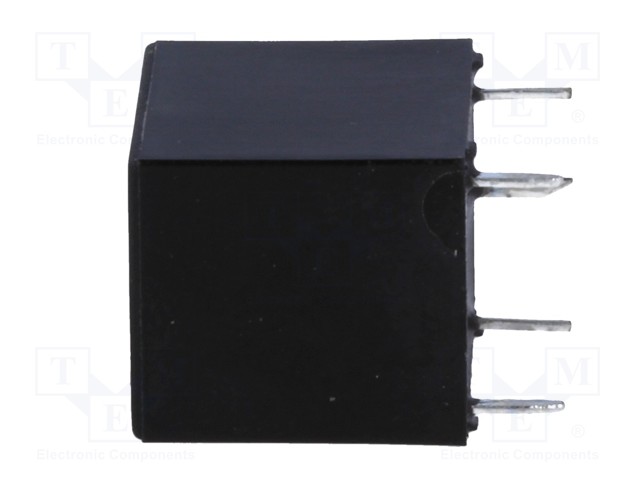

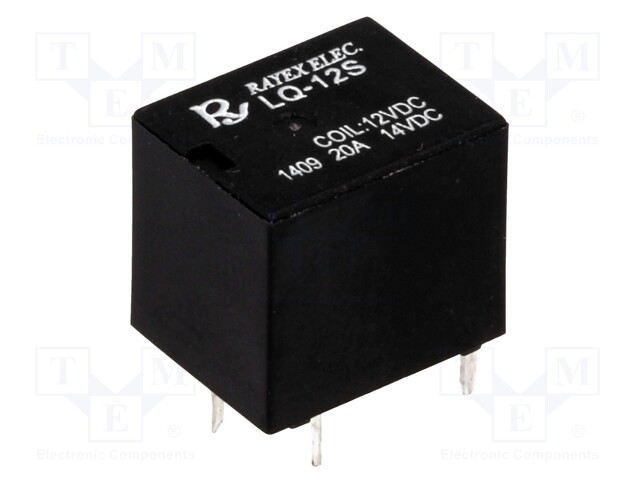

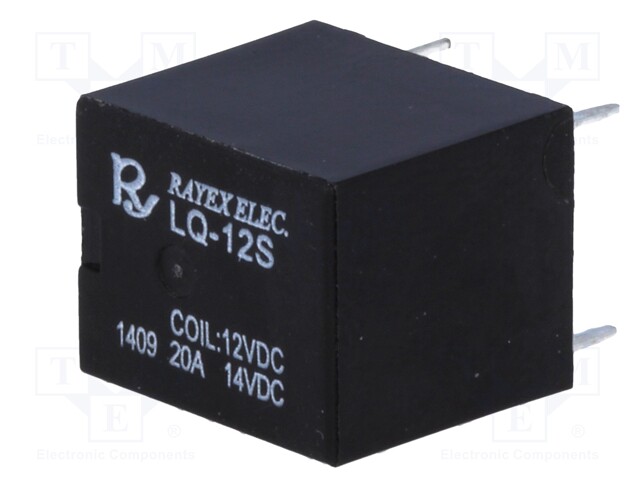

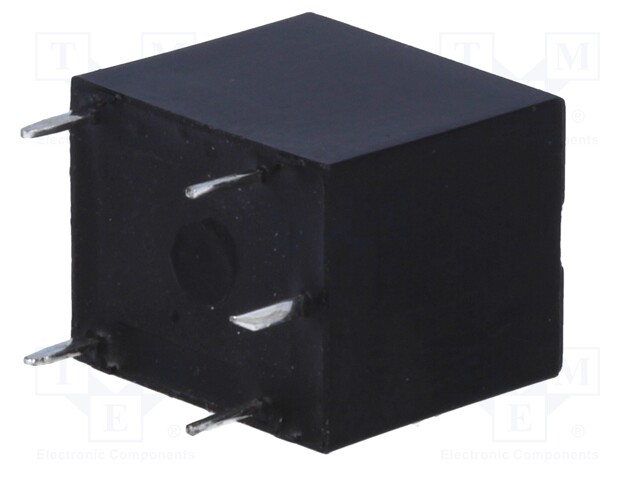

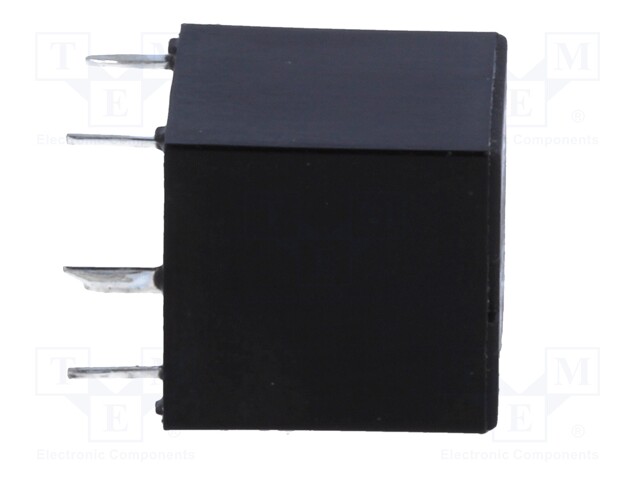

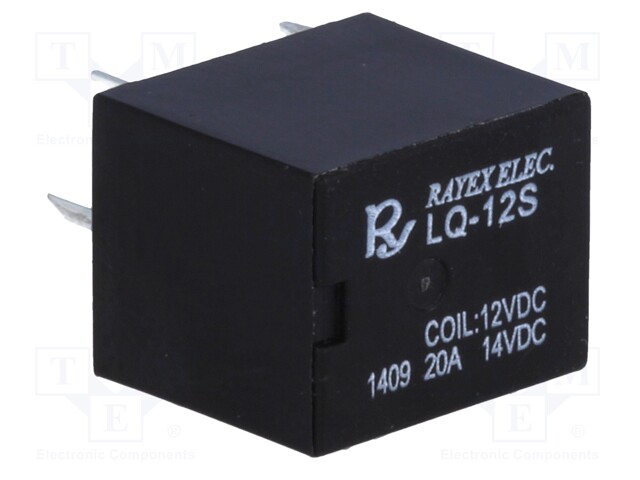

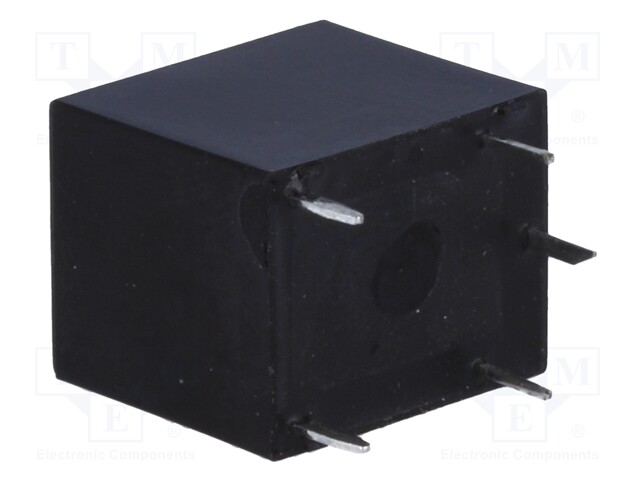

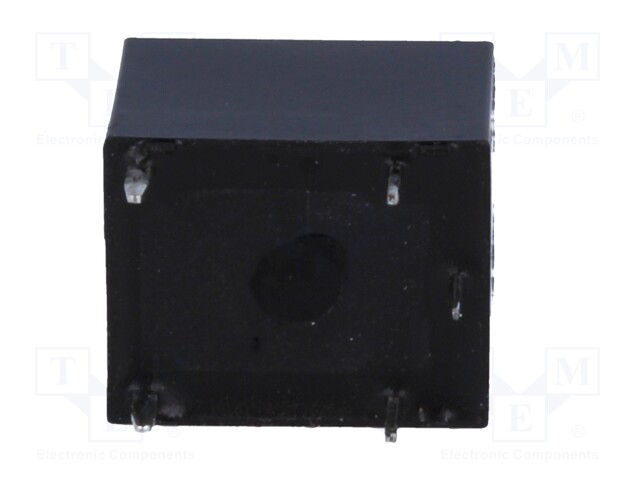

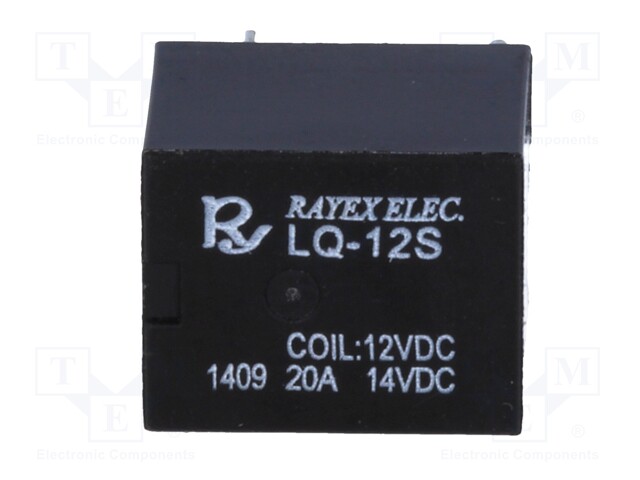

Relay: electromagnetic; SPDT; Ucoil: 12VDC; 20A; automotive; 6g

    Kordarv: 1.0
    Minimum quantity: 2.0
    Tootekood: LQ-12S
    Tootja: Recoy/RAYEX ELECTRONICS
    Tootja tootekood: LQ-12S
    • Mounting
    • Operating temperature
    • Leads
    • Body dimensions
    • Mechanical durability
    • Electrical life
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • Contact current max.
    • Relay variant
    • Type of relay
    • Operate time
    • Release time
    • Coil current

    1,01 € 1,01 € (KM-TA) 1.01 EUR

    1,01 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; SPDT; Ucoil: 12VDC; 20A; automotive; 6g

    Mounting PCB
    Operating temperature -30...85°C
    Leads for PCB

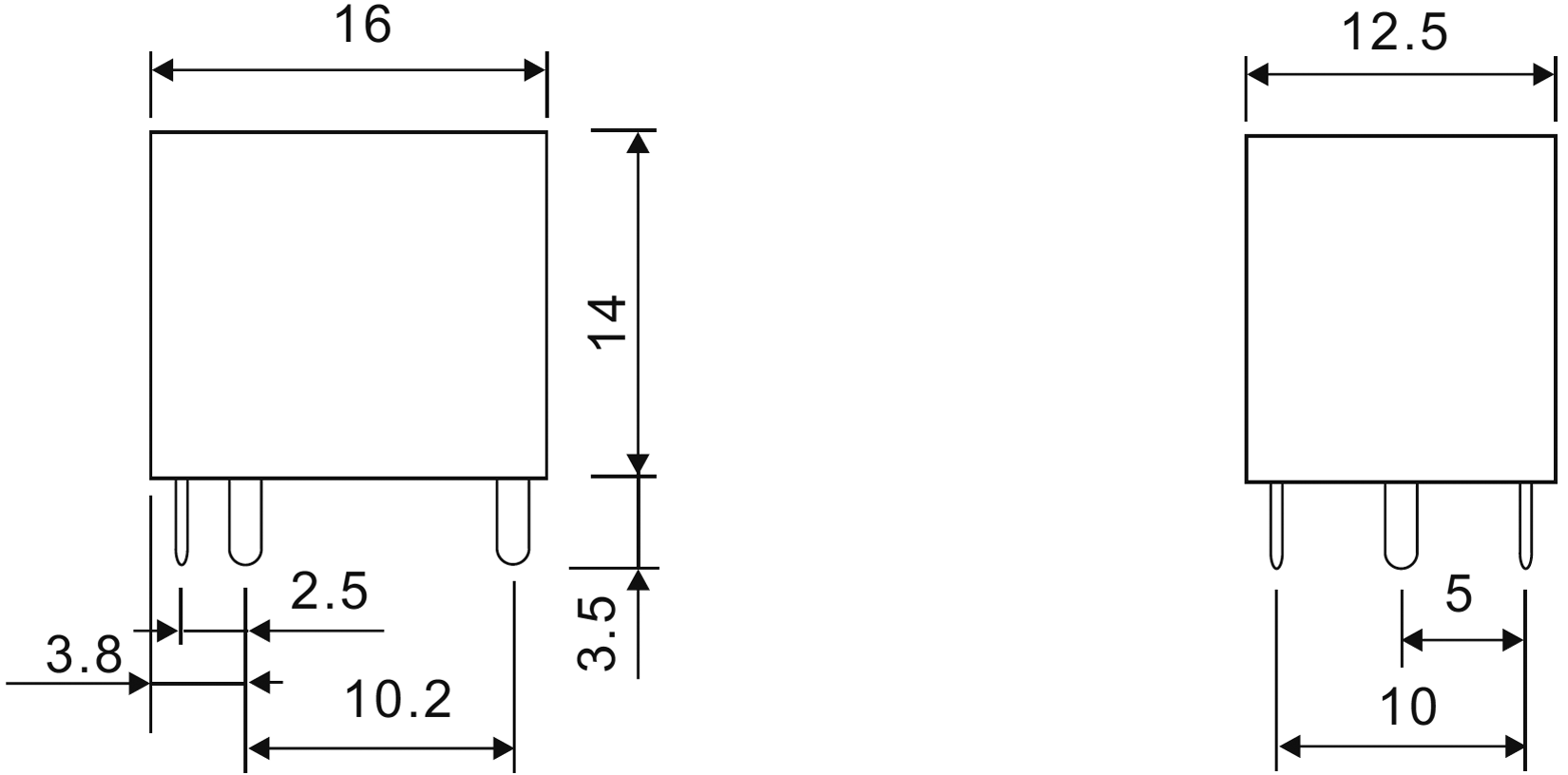

    Body dimensions 16x12.5x14mm
    Mechanical durability 10000000cycles
    Electrical life 100000cycles
    Coil resistance 240Ω
    Rated coil voltage 12V DC
    Contacts configuration SPDT
    DC contacts rating @R 20A / 14V DC
    Contact resistance 100MΩ
    Contact current max. 20A
    Relay variant automotive
    Type of relay electromagnetic
    Operate time 7.2ms
    Release time 1.2ms
    Coil current 50mA
