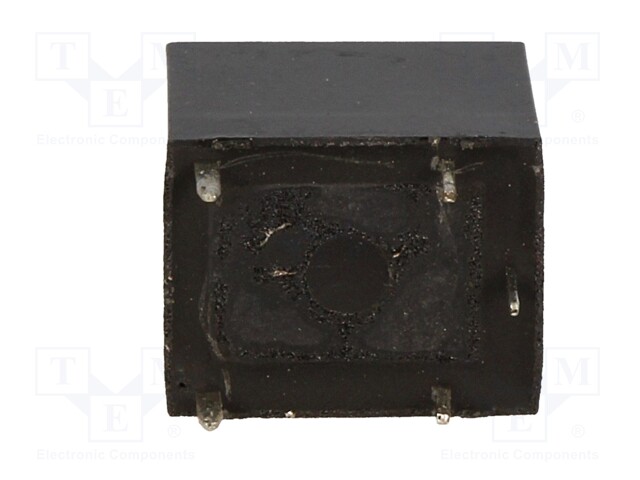

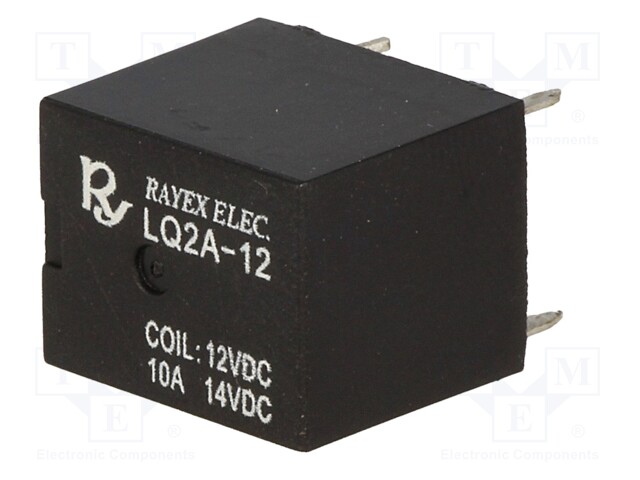

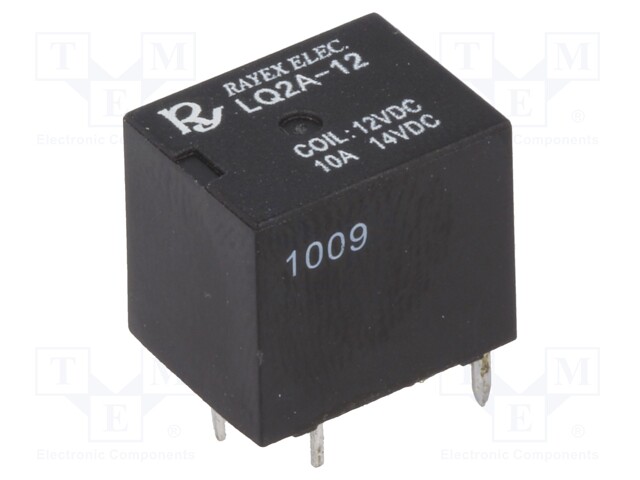

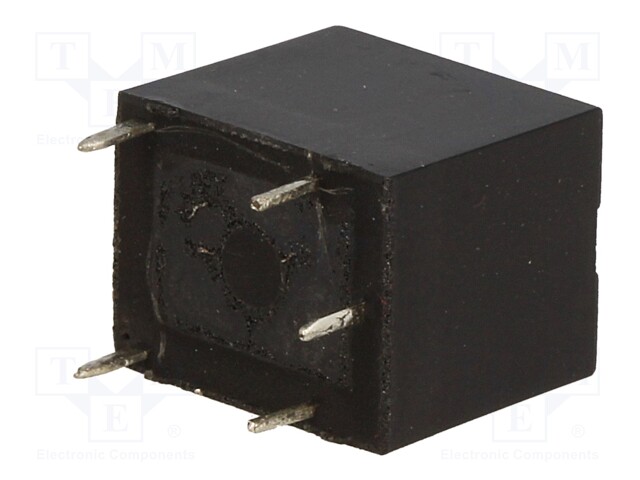

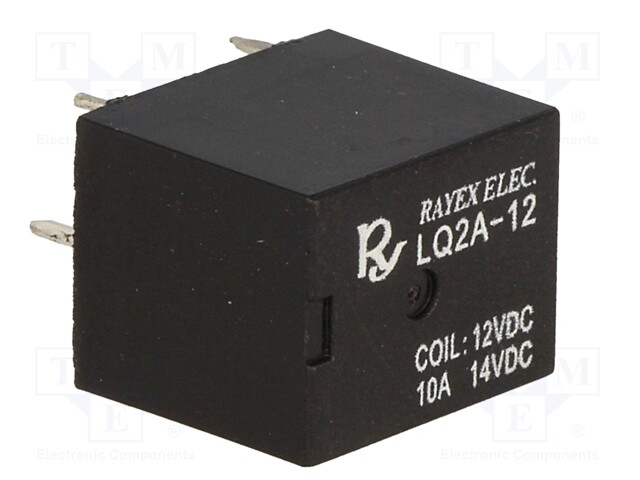

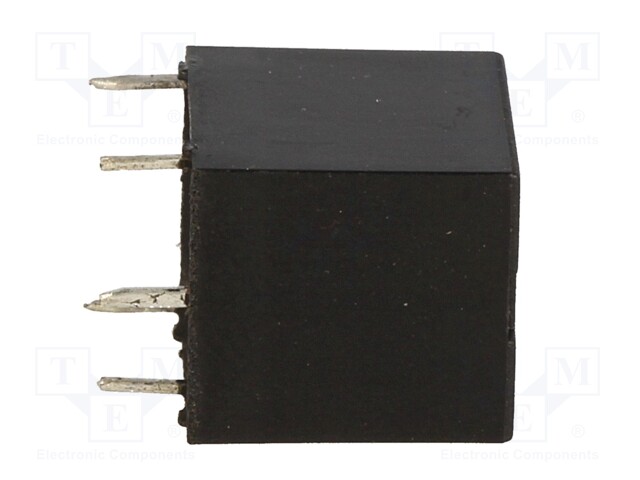

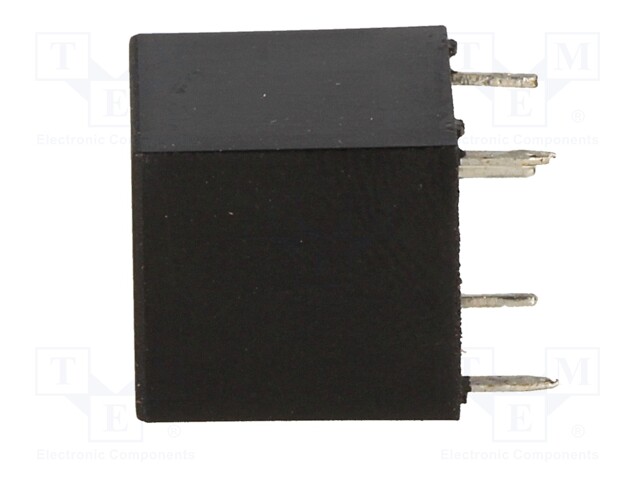

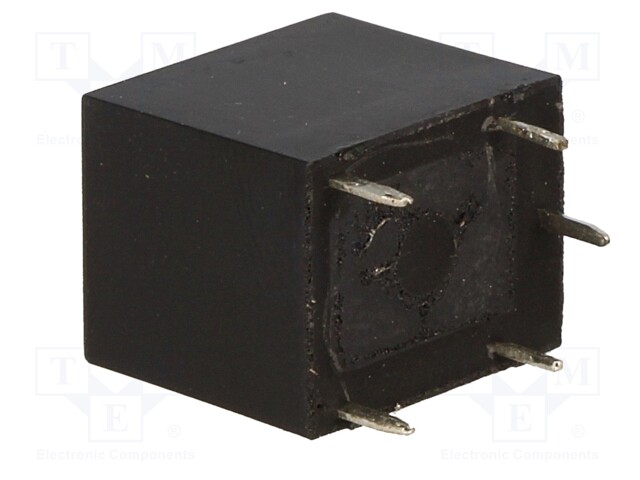

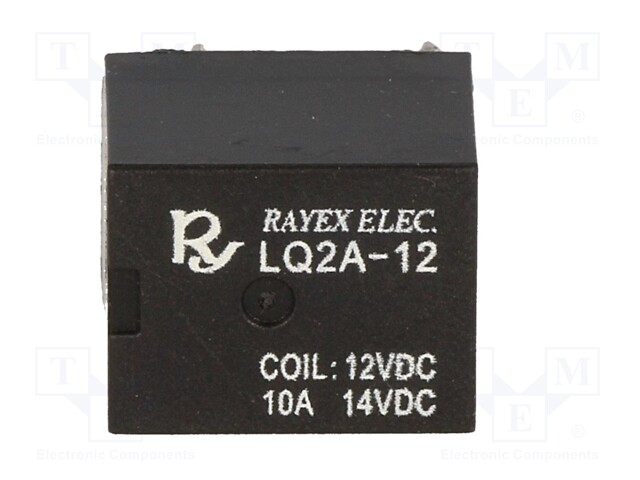

Relay: electromagnetic; SPST-NO DM; Ucoil: 12VDC; 10A; automotive

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: LQ2A-12
    Tootja: Recoy/RAYEX ELECTRONICS
    Tootja tootekood: LQ2A-12
    • Mounting
    • Operating temperature
    • Leads
    • Body dimensions
    • Mechanical durability
    • Electrical life
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • Contact current max.
    • Relay variant
    • Type of relay
    • Operate time
    • Release time
    • Coil current

    2,03 € 2,03 € (KM-TA) 2.0300000000000002 EUR

    2,03 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; SPST-NO DM; Ucoil: 12VDC; 10A; automotive

    Mounting PCB
    Operating temperature -30...85°C
    Leads for PCB
    Body dimensions 16x12.5x14mm
    Mechanical durability 10000000cycles
    Electrical life 100000cycles
    Coil resistance 180Ω
    Rated coil voltage 12V DC

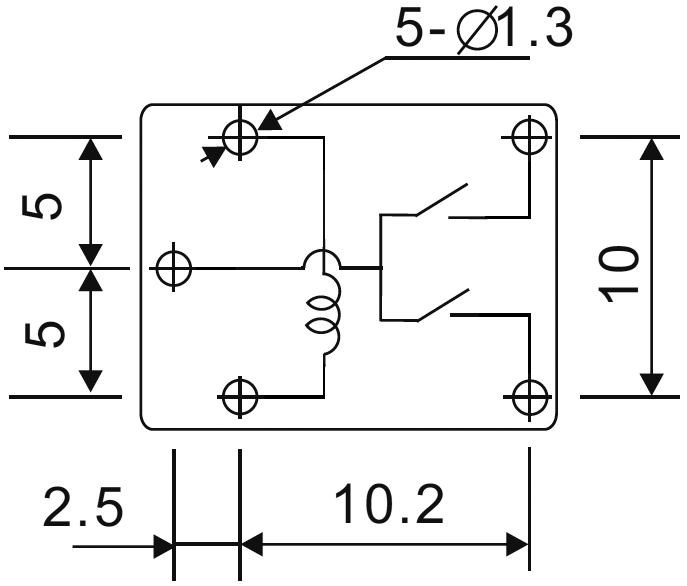

    Contacts configuration SPST-NO DM
    DC contacts rating @R 10A / 14V DC
    Contact resistance 100MΩ
    Contact current max. 10A
    Relay variant automotive
    Type of relay electromagnetic
    Operate time 7.2ms
    Release time 1.2ms
    Coil current 66.7mA
