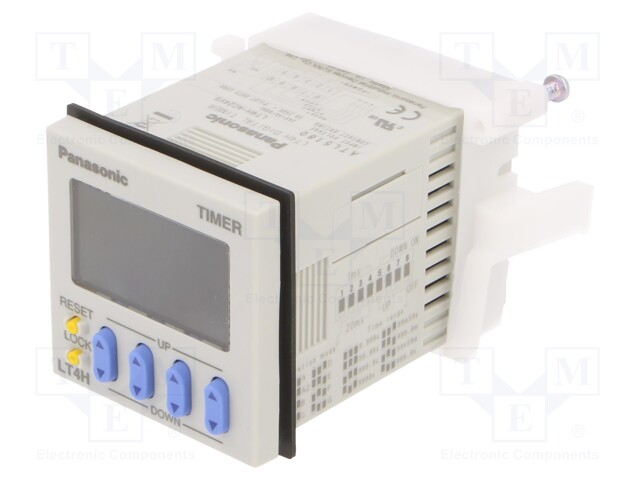

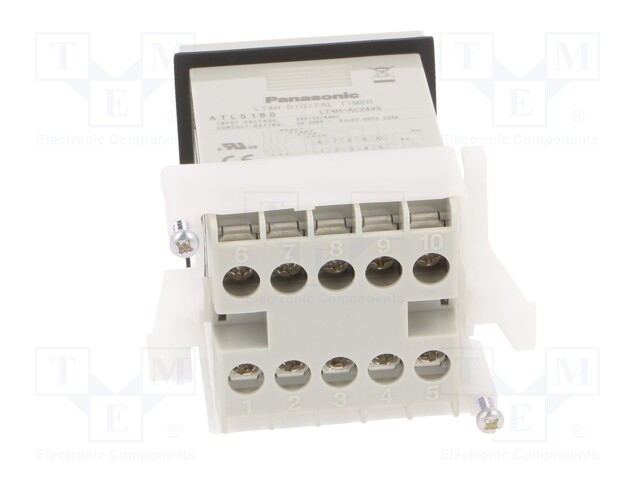

Timer; Range: 0,001s÷999,9h; SPDT; 24VAC; on panel; Display: 2x LCD
Kordarv:
1.0
Minimum quantity:
1.0
Tootekood:
LT4H-AC24VS
Tootja: PANASONIC
Tootja tootekood: LT4H-AC24VS
Product downloads
Spetsifikatsioon tootele Timer; Range: 0,001s÷999,9h; SPDT; 24VAC; on panel; Display: 2x LCD
| Mounting | on panel |
| Supply voltage | 24V AC |
| Operating temperature | -10...55°C |
| IP rating | IP66 (from the front) |
| Mounting hole diameter | 45x45mm |
| Kind of display used | LED |
| Kind of output | SPDT |
| Indication | LED |
| Electrical connection | screw terminals |
| Counting range | 0,001s...999,9h |
| Counter operation modes | cumulative, cyclical operation, delayed switching off, delayed switching on, pulse after a specified time, with the control contact S |
| Timers features | DIP-SWITCH for operation mode selection, fitted with function for up and down time counting |
| number of operation modes | 8 |
| The additional control inputs | LOCK, RESET, START, STOP |
