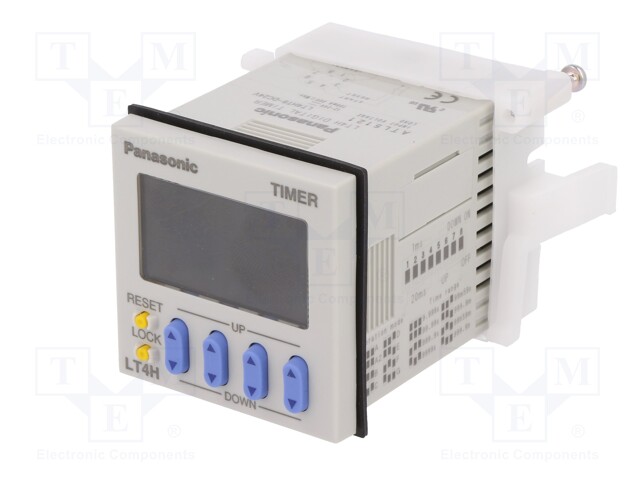

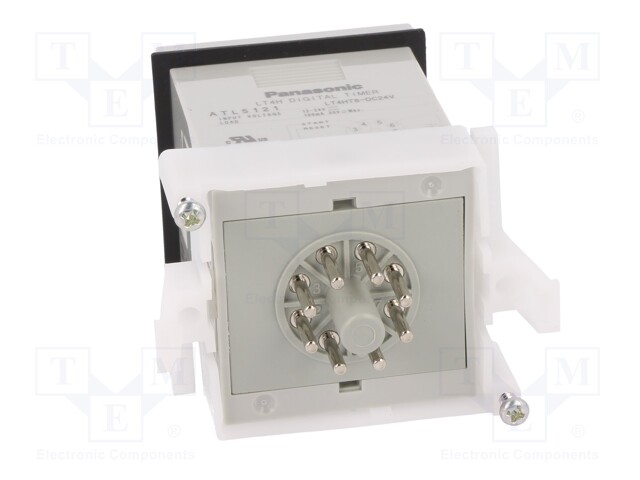

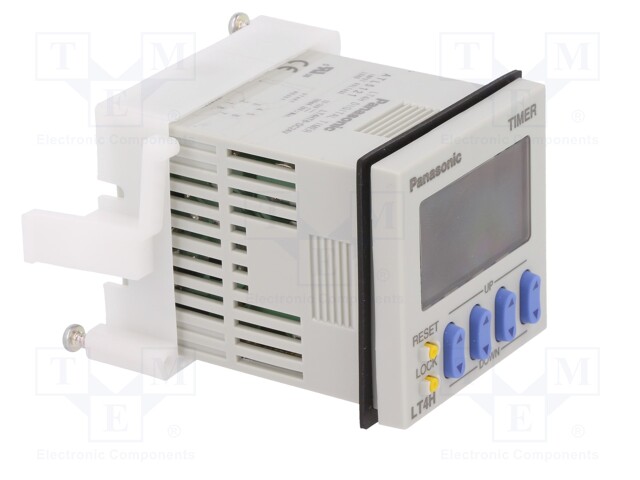

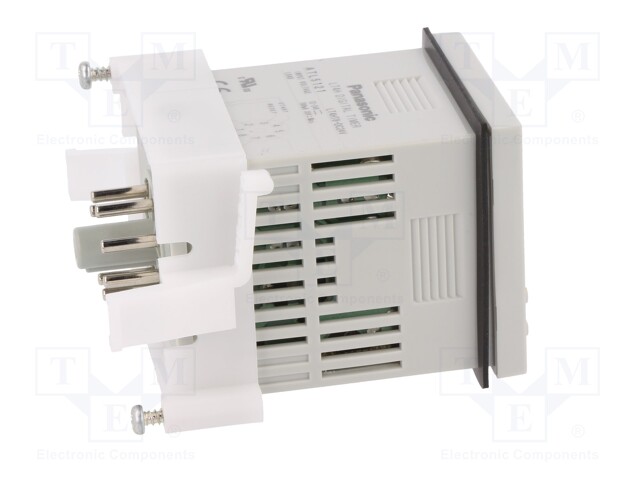

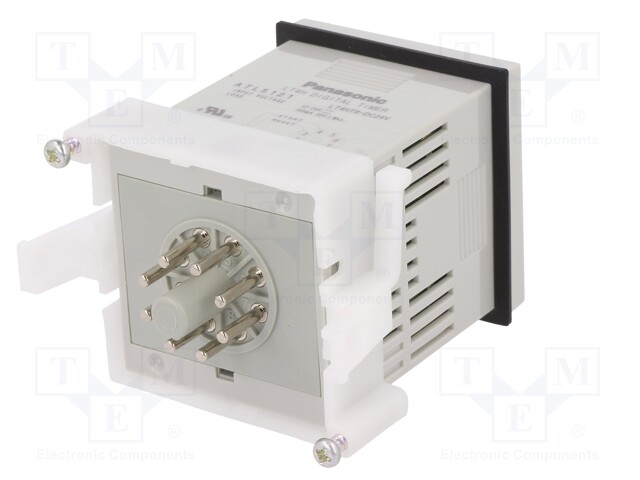

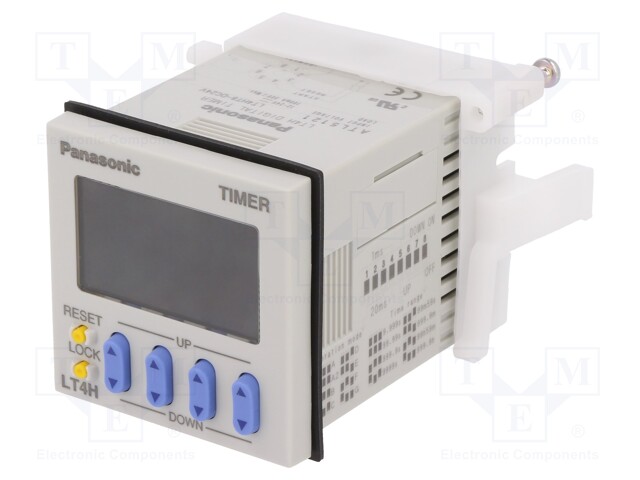

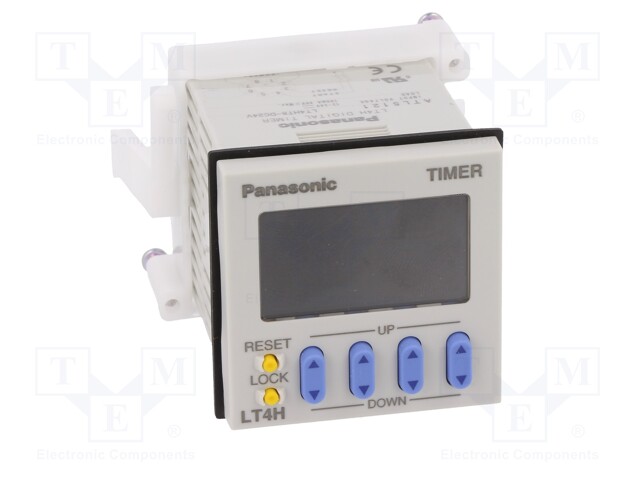

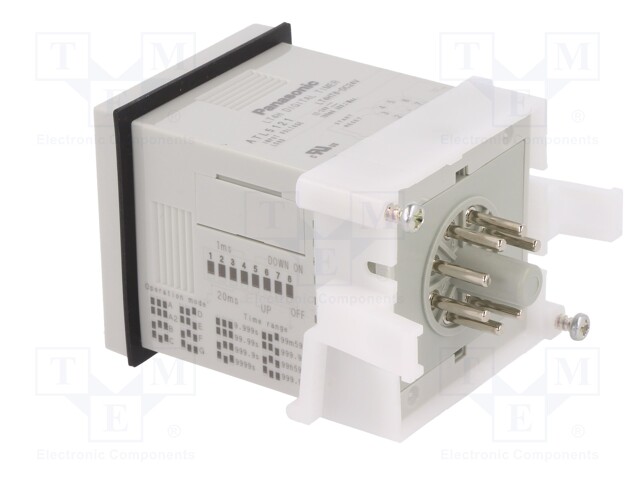

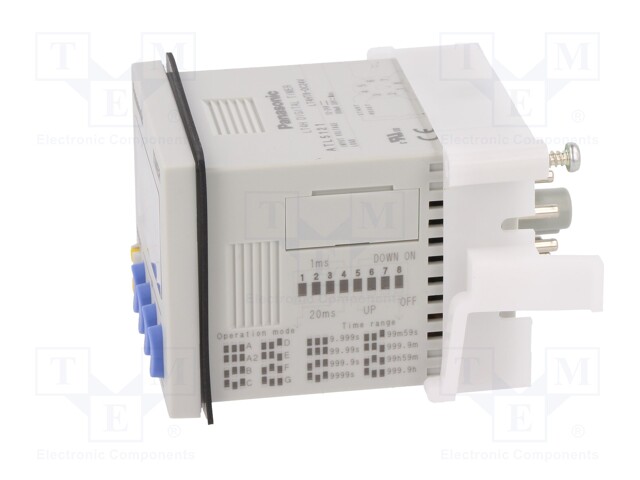

Timer; Range: 0,001s÷999,9h; transistor; 12÷24VDC; Display: 2x LCD
Kordarv:
1.0
Minimum quantity:
1.0
Tootekood:
LT4HT8-DC24V
Tootja: PANASONIC
Tootja tootekood: LT4HT8-DC24V
Product downloads
Spetsifikatsioon tootele Timer; Range: 0,001s÷999,9h; transistor; 12÷24VDC; Display: 2x LCD
| Mounting | on panel, socket |
| Supply voltage | 12...24V DC |
| Operating temperature | -10...55°C |
| IP rating | IP66 (from the front) |
| Number of pins | 8 |
| Mounting hole diameter | 45x45mm |
| Kind of display used | LED |
| Kind of output | transistor |
| Indication | LED |
| Electrical connection | round socket |
| Counting range | 0,001s...999,9h |
| Counter operation modes | cumulative, cyclical operation, delayed switching off, delayed switching on, pulse after a specified time, with the control contact S |
| Timers features | DIP-SWITCH for operation mode selection, fitted with function for up and down time counting |
| number of operation modes | 8 |
| The additional control inputs | RESET, START |
