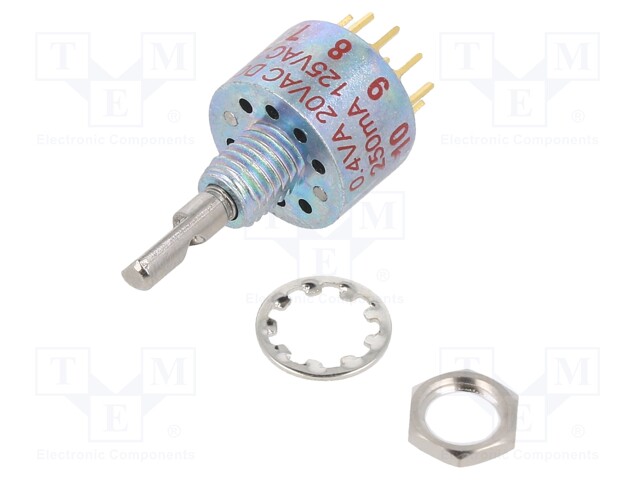

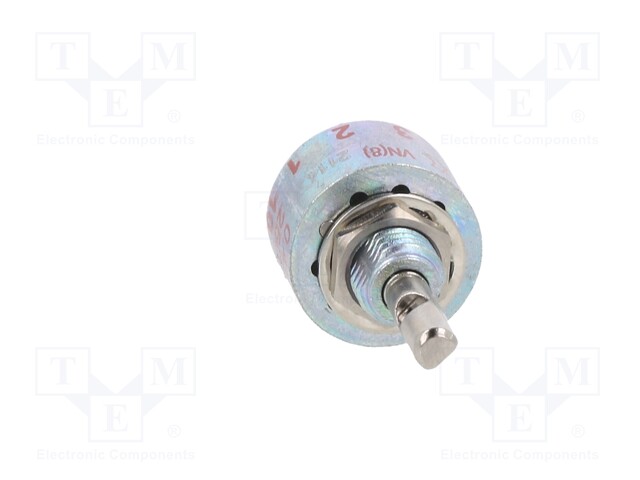

Switch: rotary; Pos: 5; 0.25A/125VAC; 0.25A/28VDC; 36°; -30÷85°C

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: MA05L1NCGD
    Tootja: C&K
    Tootja tootekood: MA05L1NCGD
    • Mounting
    • Operating temperature
    • Type of switch
    • Contact plating
    • Contact plating
    • Contact plating
    • Number of positions
    • Leads
    • Series
    • Fastening thread
    • Contact material
    • Max. contact resistance
    • Body dimensions
    • Min. insulation resistance
    • Electrical life
    • Shaft length
    • Shaft diameter
    • Shaft surface
    • Poles number
    • DC contacts rating @R
    • AC contacts rating @R
    • Indexed positions

    19,36 € 19,36 € (KM-TA) 19.36 EUR

    19,36 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Switch: rotary; Pos: 5; 0.25A/125VAC; 0.25A/28VDC; 36°; -30÷85°C

    Mounting THT
    Operating temperature -30...85°C
    Type of switch rotary
    Contact plating gold-plated, nickel plated, silver plated
    Number of positions 5
    Leads for PCB
    Series M
    Fastening thread 1/4-28 UNF-2A
    Contact material copper
    Max. contact resistance 20mΩ
    Body dimensions Ø13.34x9.4mm
    Min. insulation resistance 10GΩ
    Electrical life 10000cycles
    Shaft length 10.16mm
    Shaft diameter 3.17mm
    Shaft surface D spring
    Poles number 1
    DC contacts rating @R 250mA / 28V DC
    AC contacts rating @R 250mA / 125V AC
    Indexed positions 36°
