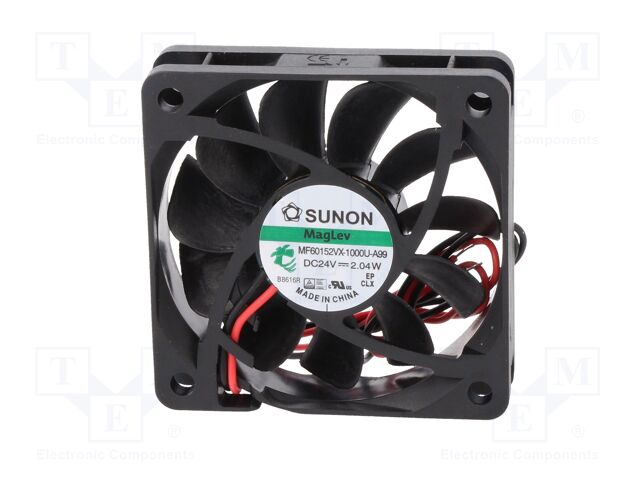

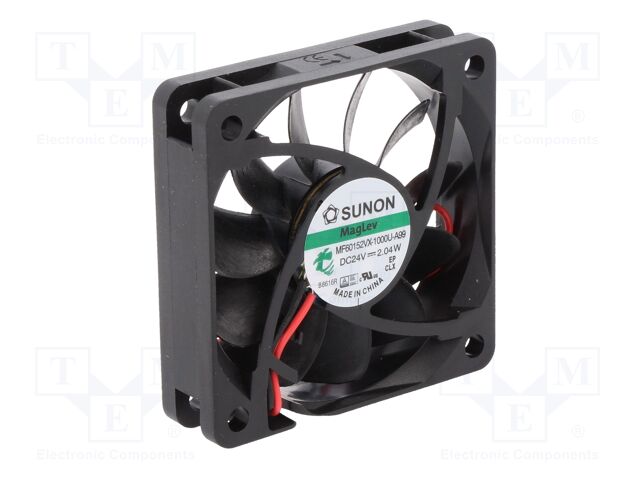

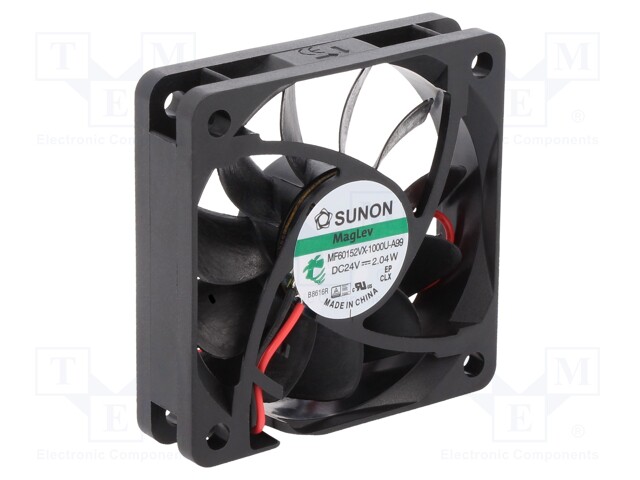

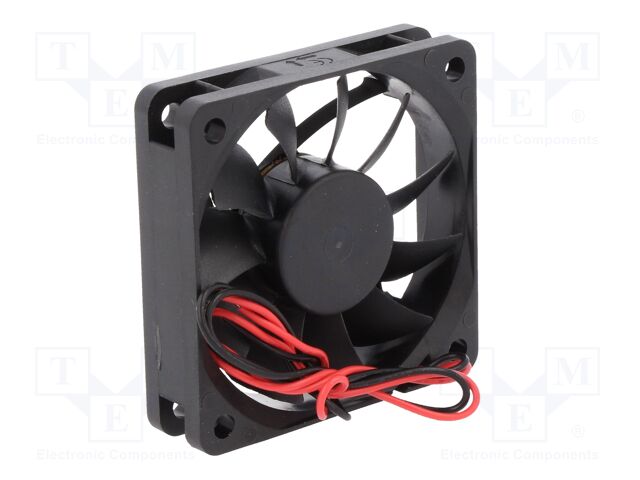

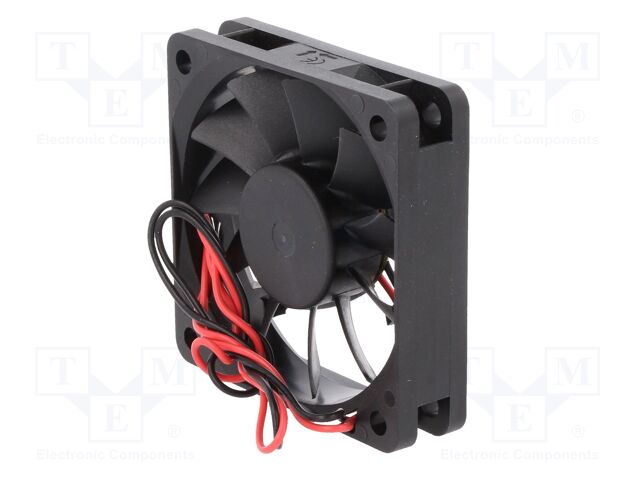

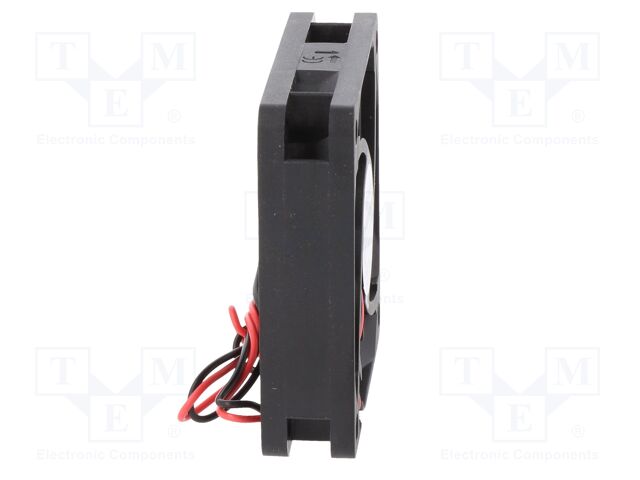

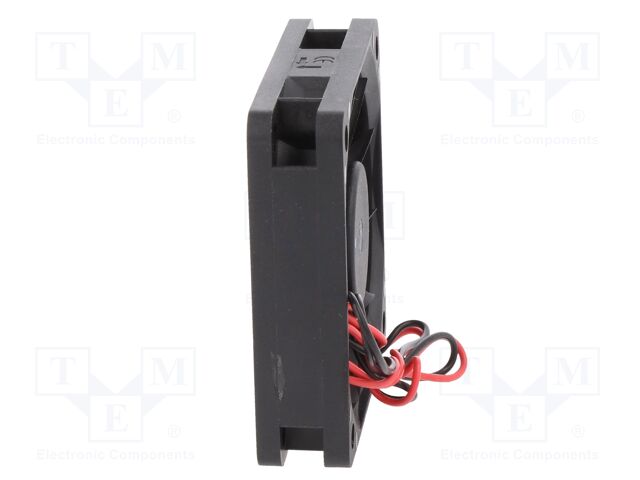

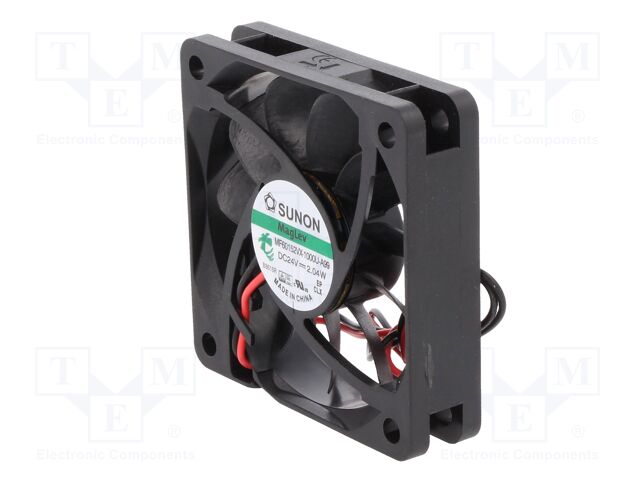

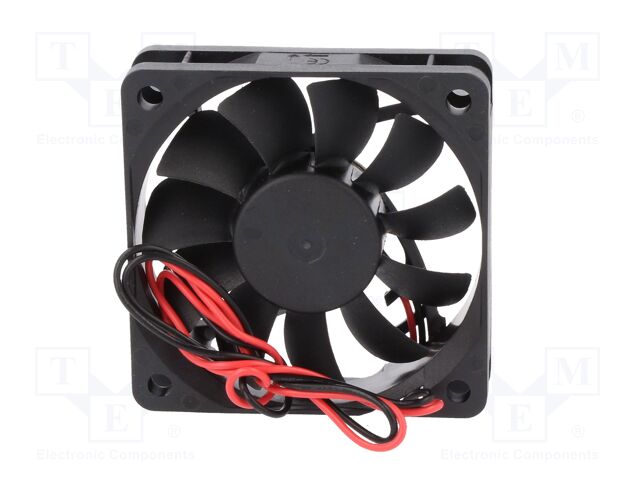

Fan: DC; axial; 24VDC; 60x60x15mm; 51.38m3/h; 36.2dBA; Vapo; 5400rpm

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: MF60152VX-A99-A
    Tootja: SUNON
    Tootja tootekood: MF60152VX-1000U-A99
    • Supply voltage
    • Operating temperature
    • Enclosure material
    • Flammability rating
    • Current rating
    • Fan efficiency
    • Power consumption
    • Additional functions
    • Rotational rate/speed
    • Fan motor
    • Fan dimensions
    • Kind of Bearing
    • Min. insulation resistance
    • Impeller material
    • Kind of fan
    • Type of fan
    • Static pressure
    • Noise level

    6,15 € 6,15 € (KM-TA) 6.15 EUR

    6,15 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Fan: DC; axial; 24VDC; 60x60x15mm; 51.38m3/h; 36.2dBA; Vapo; 5400rpm

    Supply voltage 24V DC
    Operating temperature -10...70°C
    Enclosure material thermoplastic
    Flammability rating UL94V-0
    Current rating 85mA
    Fan efficiency 51.38m<sup>3</sup>/h
    Power consumption 2.04W
    Additional functions Autorestart
    Rotational rate/speed 5400rpm
    Fan motor brushless DC motor
    Fan dimensions 60x60x15mm
    Kind of Bearing Vapo
    Min. insulation resistance 10MΩ
    Impeller material thermoplastic
    Kind of fan axial
    Type of fan DC
    Static pressure 5.59mm H<sub>2</sub>O
    Noise level 36.2dBA
