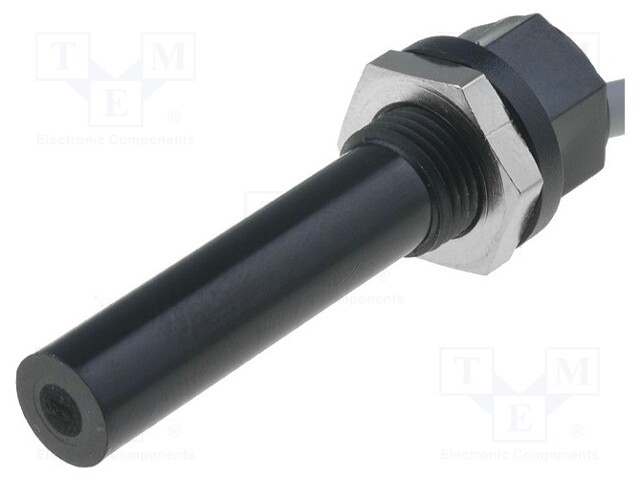

Reed switch; Range: 15÷20mT; Pswitch: 10W; Ø6.6x39.6mm; toff: 0.1ms

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: MK07-1A66C-3000W
    Tootja: MEDER
    Tootja tootekood: MK07-1A66C-3000W
    • Operating temperature
    • Body dimensions
    • Switched voltage
    • Type of sensor
    • Switching capacity
    • Sensors features
    • Contacts configuration
    • Switched current
    • Operate time
    • Release time

    10,29 € 10,29 € (KM-TA) 10.290000000000001 EUR

    10,29 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Reed switch; Range: 15÷20mT; Pswitch: 10W; Ø6.6x39.6mm; toff: 0.1ms

    Operating temperature -20...85°C

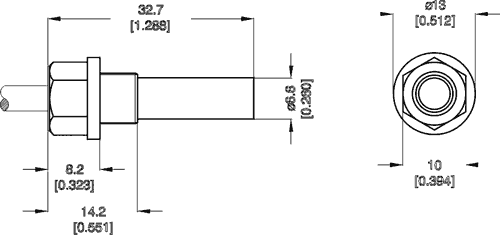

    Body dimensions Ø6.6x39.6mm
    Switched voltage ≤ 200V
    Type of sensor reed switch
    Switching capacity 10W
    Sensors features actuator is sold separately
    Contacts configuration SPST-NO
    Switched current 500mA
    Operate time 500µs
    Release time 100µs
