Power supply: switched-mode; 43.5W; 127÷370VDC; 90÷264VAC; OUT: 3
Kordarv:
1.0
Minimum quantity:
1.0
Tootekood:
MPT-45C
Tootja: MEAN WELL
Tootja tootekood: MPT-45C
Product downloads
Spetsifikatsioon tootele Power supply: switched-mode; 43.5W; 127÷370VDC; 90÷264VAC; OUT: 3
| Output current | 3 (0.4...5)A |
| Mounting | for building in |
| Supply voltage | 90...264V AC, 127...370V DC |
| Power | 43.5W |
| Operating temperature | -10...60°C |
| Protection | overload, overvoltage, short-circuit |
| Type of power supply | switched-mode |
| Series | MPT-45 |
| Application | medical applications |

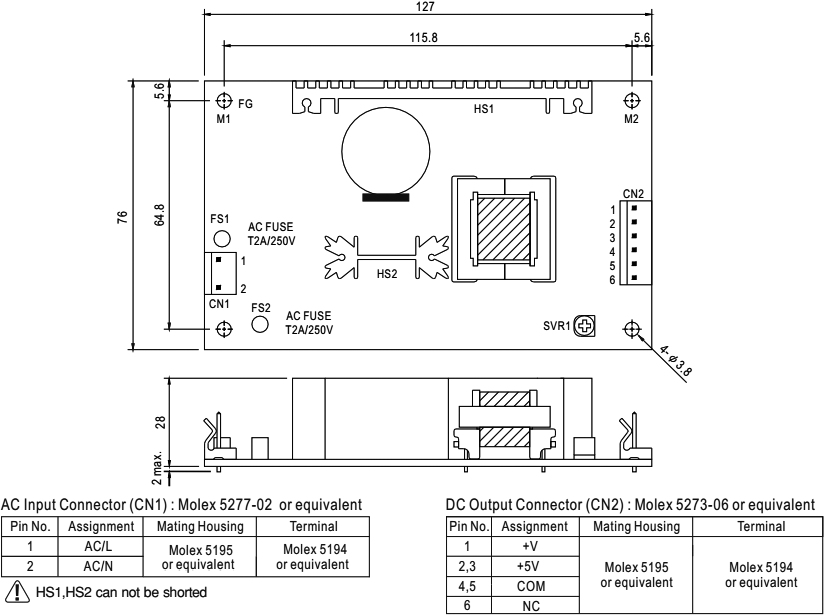

| Body dimensions | 127x76x28mm |
| Weight | 210g |
| Output voltage | 5V DC |
| Efficiency | 75% |
| Output voltage 3 | -15V DC |
| Output current 2 | 1.6A (0.2...2.3) |
| Output voltage 2 | 15V DC |
| Output current 3 | 300mA (0...0.5) |
| Number of outputs | 3 |
| Electrical connection | plug with 3,96mm pitch |
| Kind of power supply | open |
| Power supply/converter features | multi output power supply - for operating properly, each channel must be loaded within specified range |
